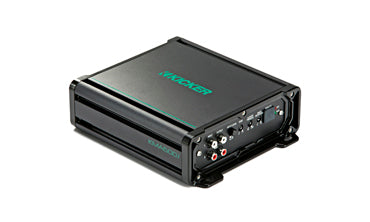

Kicker Audio KM Marine 600W Monoblock Subwoofer Amplifier

Manufacturer Part No: KA45KMA6001 | ID: KA45KMA6001 | £291.63 ex-VAT

Big bass meets big value. Use this flexible KM marine subwoofer amplifier to power your bass with ease, and pump up the sound like only KICKER can!  Experience the perfect way to get bass on your boat! A mighty Class-D power plant, 12dB crossover and subsonic filter all help you dial in the best sound. Use the remote level control to adjust the bass right from the dash and connect the full-range RCA outputs to expand your system!

Features

  • Class-D Power Supply
  • Mono Amplifier
  • Conformal-Coated Circuit Board
  • Remote Level Control Included
  • Variable 12dB Crossover
  • KickEQ™ Variable 12dB Bass Boost
  • 24dB Subsonic Filter
  • Full-Range RCA Output
  • ABYC/NMMA-Compliant Power Connections
  • 316L Stainless-Steel Hardware Included
  • This KM-Series amplifier delivers as much as 600 watts into one channel
  • In the box is one amplifier, a remote control, remote cable, user manual and mounting hardware

SKU

KA45KMA1502

KA45KMA3004

KA45KMA4506

KA45KMA6001

Channels

2

4

6

1

Rated Power

40 Watts x 2 @ 4 Ohm

75 Watts x 2 @ 2 Ohm

150 Watts x 1 @ 4 Ohm Bridged

40 Watts x 4 @ 4 Ohm

75 Watts x 4 @ 2 Ohm

150 Watts x 2 @ 4 Ohm Bridged

40 Watts x 6 @ 4 Ohm

75 Watts x 6 @ 2 Ohm

150 Watts x 3 @ 4 Ohm Bridged

300 Watts x 1 @ 4 Ohm

600 Watts x 1 @ 2 Ohm

Total Power

150 Watts

300 Watts

450 Watts

600 Watts

Bridgeable

Yes

Yes

Yes

No

Frequency Response

10Hz to 20kHz +/-1dB

10Hz to 20kHz +/-1dB

10Hz to 20kHz +/-1dB

25Hz to 200Hz +/-1dB

Signal-to-Noise Ration

>95dB

>95dB

>95dB

>95dB

Crossover Controls

Variable HP/LP 50Hz-200Hz @ 12dB/octave

Variable HP/LP 50Hz-200Hz @ 12dB/octave

Amp 1 & 2: Variable HP 0Hz-200Hz @ 12 dB/octave

Amp 3: Variable HP/LP 25Hz-200Hz @ 12dB/octave

Variable LP 50Hz-200Hz @ 12dB/octave

KickEQ Bass Boost

0-12dB @ 40Hz

0-12dB @ 40Hz

0-12dB @ 40Hz (Amp 3 Only)

0-12dB @ 40Hz

Signal Input

Hi/Low Level: 1 x RCA Pair

Hi/Low Level: 2 x RCA Pair

Hi/Low Level: 3 x RCA Pair

Hi/Low Level: 1 x RCA Pair

Signal Output

No

No

No

Low Level: 1 x RCA Pair

Power Input Connector

ABYC Compliant Clamp

ABYC Compliant Clamp

ABYC Compliant Clamp

ABYC Compliant Clamp

Power Wire Gauge

8 AWG

4 AWG

4 AWG

4 AWG

Suggested Fuse Rating

40A

60A

80A

80A

Speaker Wire Gauge

16 AWG

16 AWG

16 AWG

16 AWG/12 AWG

Heat Sink Type

Aluminium Bottom plate

Aluminium Bottom plate

Aluminium Bottom plate

Aluminium Bottom plate

Cooling

Passive

Passive

Passive

Passive

Remote Control

No

No

Wired Remote Included

Wired Remote Included

Visual Indicators

Power, Protect

Power, Protect

Power, Protect

Power, Protect

Circuit Topology Class

Full Range Class-D

Full Range Class-D

Full Range Class-D

Class-D

Dimensions (H x W x D)

2-5/16" x 7-1/8" x 8-1/16"
5.9 x 18.0 x 20.5 cm

2-5/16" x 7-1/8" x 12-7/16"
5.9 x 18.0 x 31.5 cm

2-5/16" x 7-1/8" x 13-15/16"
5.9 x 18.0 x 35.3 cm

2-5/16" x 7-1/8" x 8-1/16"
5.9 x 18.0 x 20.5 cm)
