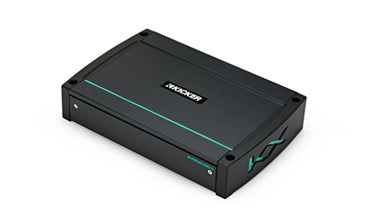

Kicker Audio KXM Marine 400W 4 Channel Full-Range Amplifier
KXM Amplifiers are built for fun, no matter where you go. Power, speaker and input connections are gasket-sealed, as is the control cover hiding the settings, creating a water-resistant barrier to key components. The KXM 400-watt four-channel amplifier is flexible enough to be a full system solution, or serve as the power for your mid and high-range speakers. KickEQ+ delivers as much as an 18dB of extra bump with a simple turn of the knob, and powerful 24dB crossover is also included to letting you quickly tune your system to perfection.
Features
- Class D Power Plant
- Gain Control With "Optimal Input" Indicator
- FIT2™ (Fail-Safe Integration Technology) Circuitry
- Variable 24dB Crossover
- DSP-Controlled Preamp
- KickEQ+™ 18dB Variable Bass Boost
- ABYC/NMMA Compliant Power Terminals
- Conformal-Coated Circuit Boards
- Easy Access to Settings behind Gasket-Sealed Cover Panel
- Black Anodized Aluminium Chassis
- Top-Mounted Teal LED Light Pipe
- Stainless Steel Mounting Hardware Included
- This KXM amplifier delivers up to 100 watts into four channels…
- Or 200 watts bridged into two channels
- In the box is one amplifier, a user manual and mounting hardware
|
SKU |
KA44KXMA4004 |
KA44KXMA8005 |
KA44KXMA8008 |
|
Channels |
4 |
5 |
8 |
|
Rated Power |
50 Watts x 4 @ 4 Ohm 100 Watts x 4 @ 2 Ohm 200 Watts x 2 @ 4 Ohm Bridged |
50 Watts x 4 @ 4 Ohm 100 Watts x 4 @ 2 Ohm 200 Watts x 2 @ 4 Ohm Bridged Sub Channel: 200 Watts x 1 @ 4 Ohm 400 Watts x 1 @ 2 Ohm 400 Watts x 1 @ 1 Ohm |
50 Watts x 8 @ 4 Ohm 100 Watts x 8 @ 2 Ohm 200 Watts x 4 @ 4 Ohm Bridged |
|
Total Power |
400 Watts |
800 Watts |
800 Watts |
|
Bridgeable |
Yes |
Yes (Front/Rear Channels) |
Yes |
|
Frequency Response |
10Hz to 20kHz +/-1dB |
10Hz to 20kHz +/-1dB Sub Channel: 10Hz to 160Hz +/-1dB |
10Hz to 20kHz +/-1dB |
|
Signal-to-Noise Ration |
95dB |
95dB |
95dB |
|
Crossover Controls |
Amp 1: Variable HP/LP 10Hz-5000Hz @ 24 dB/octave Amp 2: Variable HP 10Hz-500Hz/LP 40Hz-5000Hz @ 24dB/octave |
Amp 1: Variable HP/LP 10Hz-5000Hz @ 24 dB/octave Amp 2: Variable HP 10Hz-500Hz/LP 40Hz-5000Hz @ 24dB/octave Sub: Variable LP 40Hz-160Hz @ 24dB/octave |
Amp 1 & 2: Variable HP/LP 10Hz-5000Hz @ 24 dB/octave Amp 3 & 4: Variable HP 10Hz-500Hz/LP 40Hz-5000Hz @ 24dB/octave |
|
KickEQ Bass Boost |
0-18dB @ 40Hz |
0-18dB @ Center Frequency 20Hz-80Hz (Bandwith 1-5) |
0-18dB @ 40Hz |
|
Signal Input |
Hi/Low Level: 2 x RCA Pair |
Hi/Low Level: 2 x RCA Pair |
Hi/Low Level: 4 x RCA Pair |
|
Signal Output |
Low Level: 1 x RCA Pair |
Low Level: 1 x RCA Pair |
No |
|
Power Input Connector |
ABYC Compliant Clamp |
ABYC Compliant Clamp |
ABYC Compliant Clamp |
|
Power Wire Gauge |
4 AWG |
4 AWG |
4 AWG |
|
Suggested Fuse Rating |
100A |
100A |
120A |
|
Speaker Wire Gauge |
16 AWG |
16 AWG |
16 AWG |
|
Heat Sink Type |
Aluminium Chassis |
Aluminium Chassis |
Aluminium Chassis |
|
Cooling |
Passive |
Passive |
Passive |
|
Remote Control |
no |
Wireless Remote Included |
no |
|
Visual Indicators |
Power, Protect, Remote, Clipping Light |
Power, Protect, Remote, Clipping Light |
Power, Protect, Remote, Clipping Light |
|
Circuit Topology Class |
Full Range Class-D |
Class-D |
Full Range Class-D |
|
Dimensions (H x W x D) |
2-1/8" x 8-5/16" x 11-3/16" |
2-1/8" x 8-5/16" x 12-3/4" |
2-1/8" x 8-5/16" x 14-3/4" |
