Garmin
LiveScope™ 2 HD Transducer LVS42HD
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

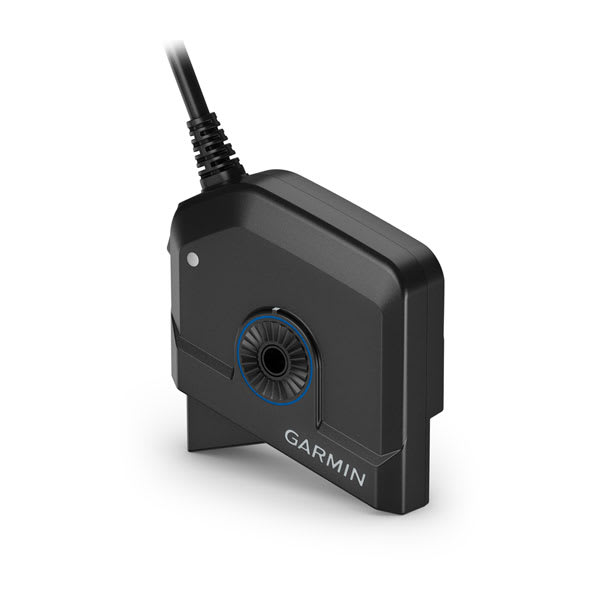

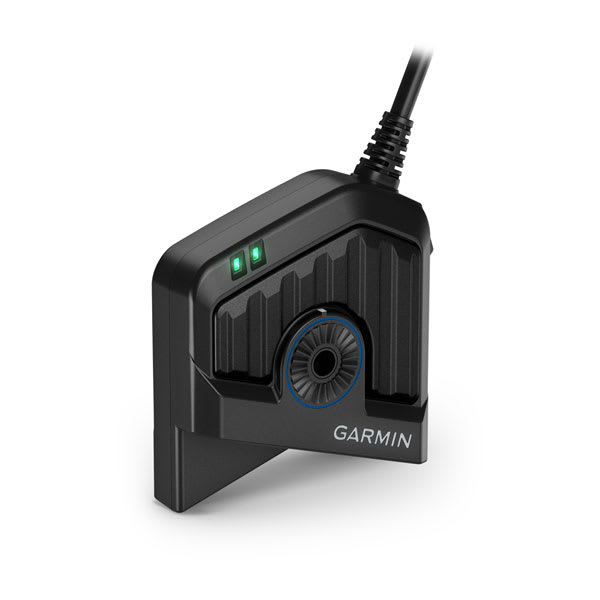

The Garmin LiveScope 2 HD LVS42HD transducer is the high-definition member of the LiveScope 2 family. Like the LVS44 it needs no GLS 10 sonar black box: the transducer connects straight to your power source and to a compatible chartplotter or network over Garmin BlueNet, using the included power/network cable and adapter. It runs at 850 kHz to 1,600 kHz, giving sharper, more detailed images of fish, lures and structure at closer range, with integrated image stabilisation and improved stitching.
Beams cover 20 x 165 degrees in Forward mode and 20 x 180 degrees in Down and Perspective modes, with bottom tracking and forward range out to 38 m (125 ft). Water detection turns the sonar off automatically when the transducer leaves the water, and a built-in temperature sensor provides water temperature readings. The adjustable perspective shaft mount and a trolling-motor barrel mount are included, together with an adapter disc for the Force Kraken LiveScope mounting bracket. For longer range, see the LiveScope 2 LVS44.
PRODUCT DETAILS
- High-definition LiveScope 2 live-scanning sonar transducer (LVS42HD)
- 850 kHz to 1,600 kHz for finer detail of fish, lures and structure at closer range
- Connects directly to a compatible Garmin chartplotter and power source, no black box needed
- Forward 20 x 165 degree and Down/Perspective 20 x 180 degree coverage
- Bottom tracking and forward range out to 38 m (125 ft)
- Integrated image stabilisation, water detection transmit control and temperature sensor

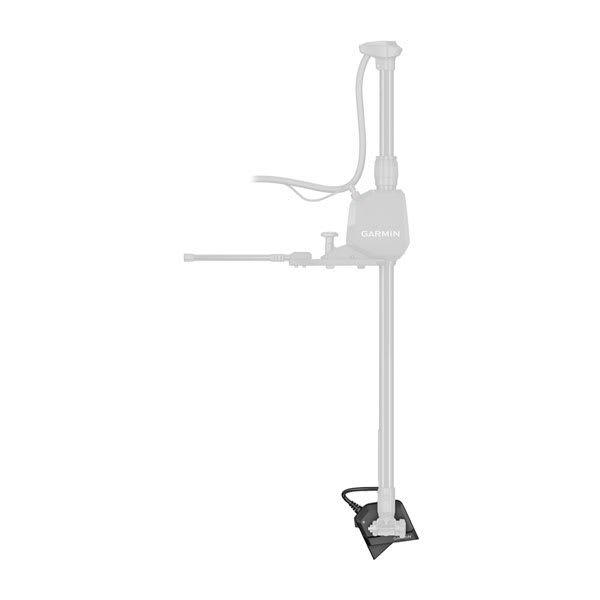

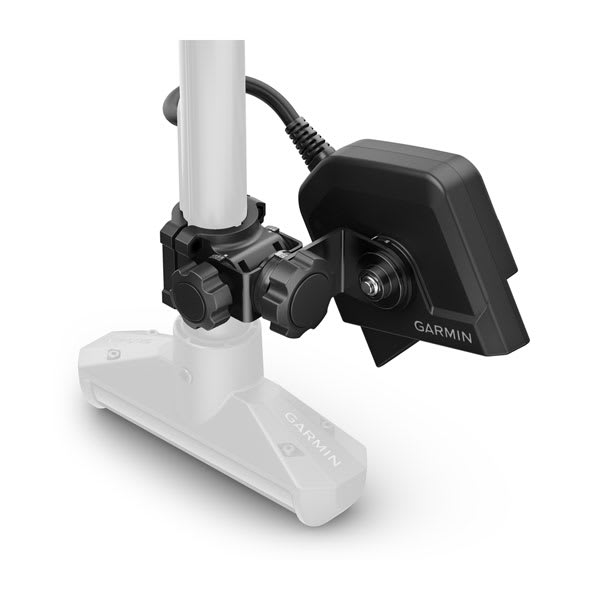

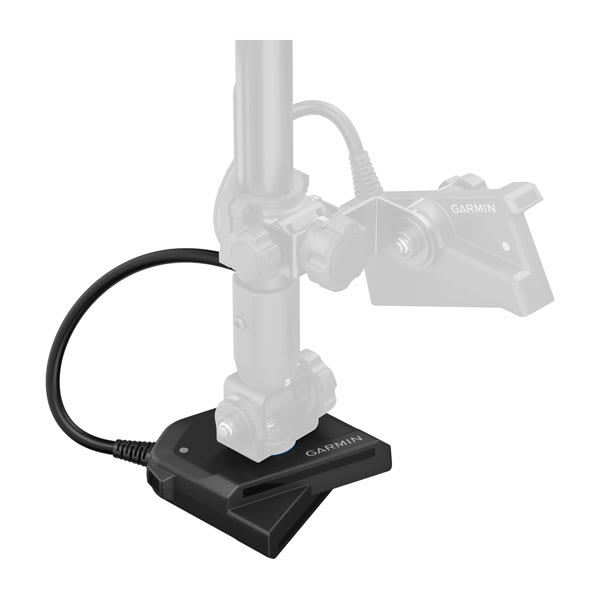

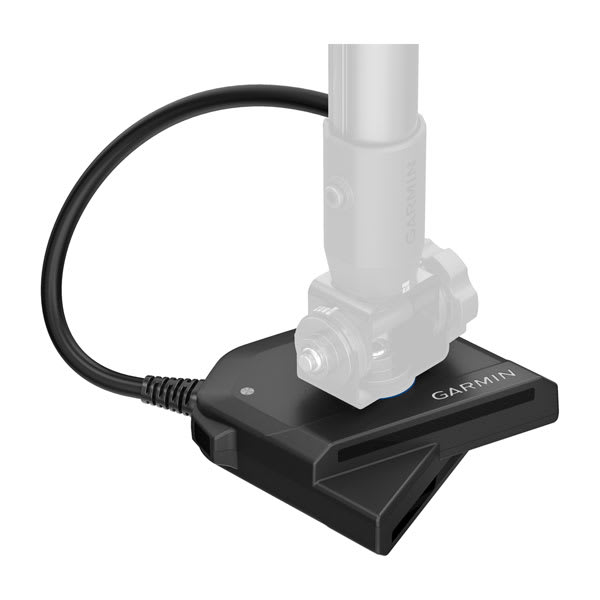

- Adjustable perspective shaft mount and trolling-motor barrel mount included
- LiveScope 2 LVS42HD transducer
- Adjustable perspective shaft mount for LiveScope 2 transducers

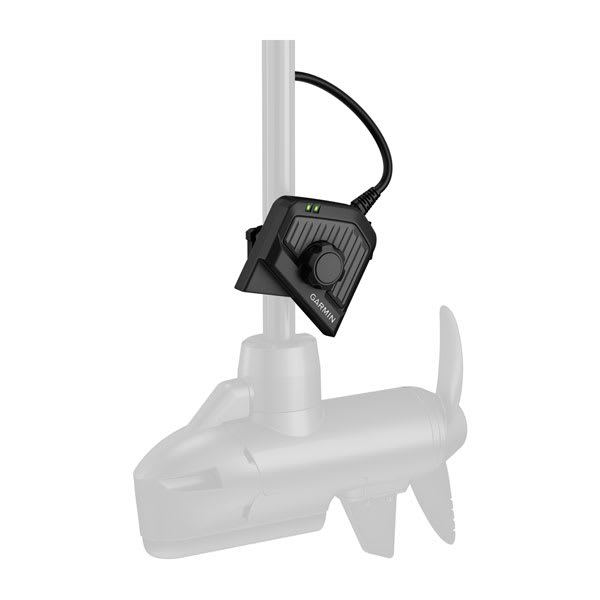

- Trolling motor barrel mount
- Power/network cable with adapter
- Adapter disc for the Force Kraken trolling motor LiveScope transducer mount
- Hardware
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
Shaft Mount for LiveScope™ 2 Transducers, 0 Degrees
Shaft Mount for LiveScope™ 2 Transducers, 8 Degrees
Trolling Motor Barrel Mount for LiveScope™ 2 Transducers
Transom Mount for LiveScope™ 2 Transducers
Jack Plate Mount for LiveScope™ 2 Transducers
Power/Network Cable for LiveScope™ 2 Transducers
Bulkhead Connector Kit for LiveScope™ 2 and 12-pin Scanning Transducers
Extension Cable for LiveScope™ 2 Series, 1 m (3 ft)
Extension Cable for LiveScope™ 2 Series, 3 m (10 ft)
Adjustable Perspective Shaft Mount for LiveScope™ Transducers
Adjustable Perspective Bottom Mount for LiveScope™ Transducers
Force® Kraken LiveScope™ Mounting Bracket
Cable coupler for Garmin BlueNet™ network
Garmin Marine Network adapter cable
Garmin BlueNet™ Marine Network Cable, 6 ft
Garmin BlueNet™ Marine Network Cable, 20 ft
Garmin BlueNet™ Network Cable, 40 ft
Garmin BlueNet™ Network Cable, 50 ft (Right Angle)
Garmin BlueNet™ Network Cable (1 ft)
Garmin BlueNet™ 20 Switch
Garmin GMS 10 Ethernet Network Port Expander or Network Switch
Garmin Cable Grommet for Marine Network Cables
Garmin Marine Network Cable Connector RJ45 Plug 2 Pack
Garmin Replacement RJ45 Split Threaded collar Connector 2 Pack 18mm
No compatible products found.
Sonar
| Sonar type | Live-scanning sonar (LiveScope 2) |
| Viewing modes | Forward, Down and Perspective (adjustable perspective shaft mount included) |
| Frequency | 850 kHz to 1,600 kHz |
| Transmit power | 521 W |
| Maximum depth/range | Down and Forward: 38 m (125 ft); dependent on water salinity, bottom type and conditions |
| Beamwidth (forward) | 20 x 165 degrees |
| Beamwidth (down/perspective) | 20 x 180 degrees |
| Target separation | 14.5 cm at 9 m (30 ft); 32 cm at 30 m (100 ft) |
| Water detection transmit control | Yes |
Connectivity
| Network connection | Garmin BlueNet (small connector) with GMN1 adapter; connects directly to a compatible Garmin chartplotter, no black box required |
| Power connection | Yes (2-wire) |
Electrical
| Input voltage | 10 to 35 V DC |
| Power usage | 32 W max |
| Fuse | 7.5 A |
Physical
| Dimensions (L x H x W) | 133 x 134 x 48 mm (5.2 x 5.3 x 1.9 in) |
| Weight (with cable) | 1.65 kg (3.6 lb) |
| Transducer cable length | 5.5 m (18 ft) |
| Transducer connector | 7-pin |
General
| Compass safe distance | 10 cm (4 in) |
| Operating temperature | 0 to 40°C (32 to 104°F) |
| Storage temperature | -40 to 85°C (-40 to 185°F) |
