Garmin
LiveScope™ 2 Transducer LVS44
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

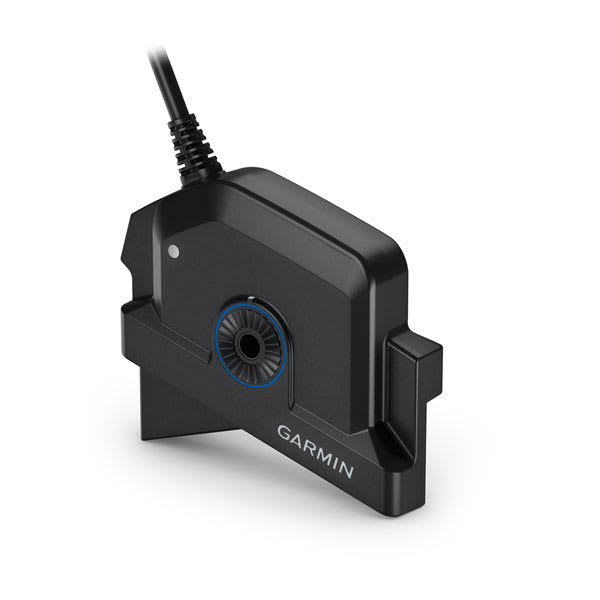

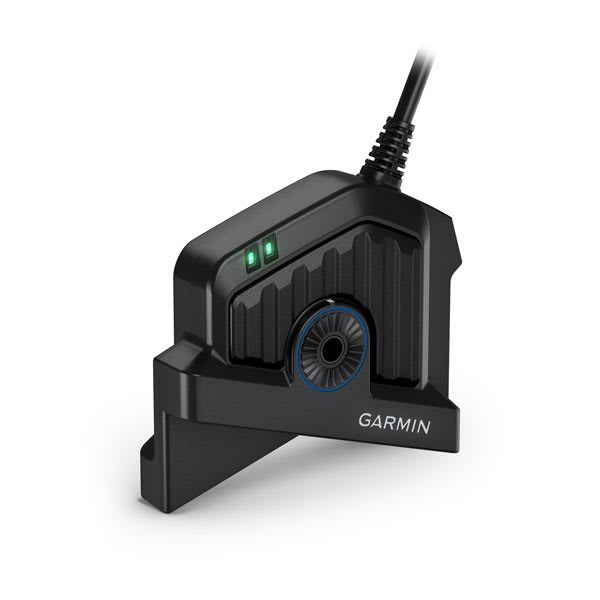

The Garmin LiveScope 2 LVS44 transducer brings the latest generation of LiveScope live-scanning sonar to compatible Garmin chartplotters. Unlike earlier LiveScope systems it needs no GLS 10 sonar black box: the transducer connects straight to your power source and to the chartplotter or network over Garmin BlueNet, using the included power/network cable and adapter. Compared with previous generations it delivers up to 20% higher resolution with reduced artefacts, ghosts and blind spots, integrated image stabilisation and improved stitching, so fish, structure and lures stand out clearly in real time.
Wider beams cover 20 x 165 degrees in Forward mode and 20 x 180 degrees in Down and Perspective modes, and the 600 kHz to 1,050 kHz transducer tracks the bottom out to 76 m (250 ft) in freshwater. Water detection turns the sonar off automatically when the transducer leaves the water, and a built-in temperature sensor provides water temperature readings. The adjustable perspective shaft mount and a trolling-motor barrel mount are included, together with an adapter disc for the Force Kraken LiveScope mounting bracket.
PRODUCT DETAILS
- Latest-generation LiveScope live-scanning sonar transducer (LVS44)
- Up to 20% higher resolution with fewer artefacts, ghosts and blind spots than previous generations
- Connects directly to a compatible Garmin chartplotter and power source, no black box needed
- Forward 20 x 165 degree and Down/Perspective 20 x 180 degree coverage
- Bottom tracking and forward range out to 76 m (250 ft) in freshwater
- Integrated image stabilisation, water detection transmit control and temperature sensor

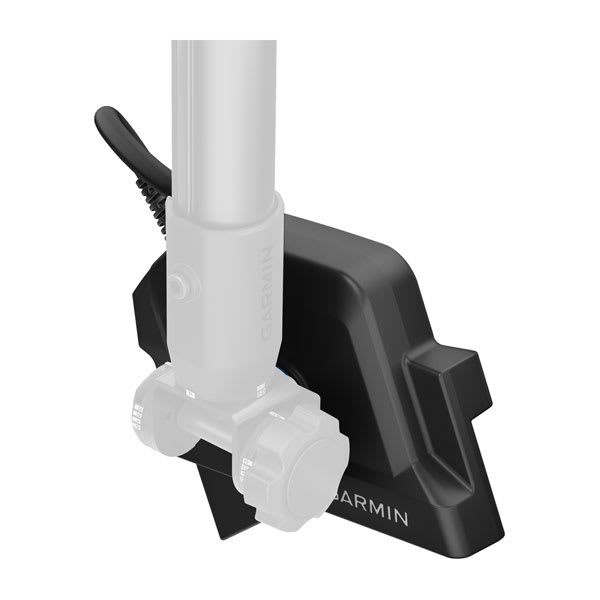

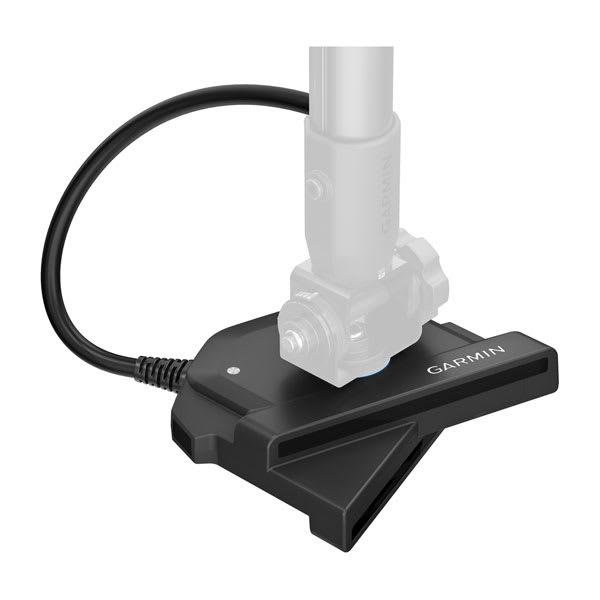

- Adjustable perspective shaft mount and trolling-motor barrel mount included
- LiveScope 2 LVS44 transducer
- Adjustable perspective shaft mount for LiveScope 2 transducers

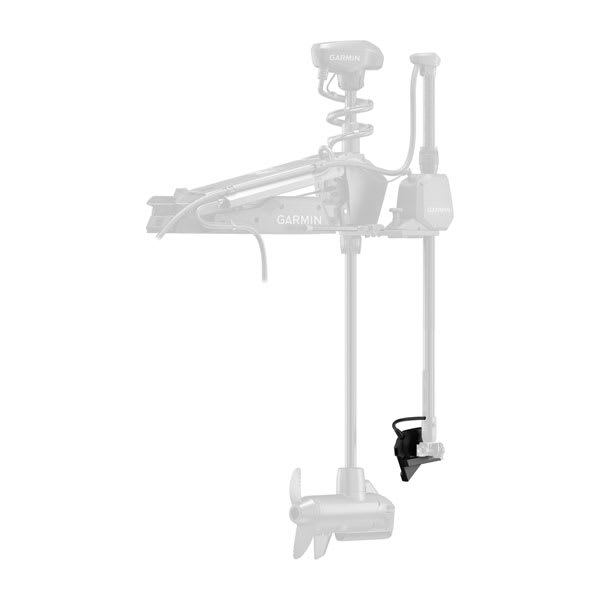

- Trolling motor barrel mount
- Power/network cable with adapter
- Adapter disc for the Force Kraken trolling motor LiveScope transducer mount
- Hardware
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
Shaft Mount for LiveScope™ 2 Transducers, 0 Degrees
Shaft Mount for LiveScope™ 2 Transducers, 8 Degrees
Trolling Motor Barrel Mount for LiveScope™ 2 Transducers
Transom Mount for LiveScope™ 2 Transducers
Jack Plate Mount for LiveScope™ 2 Transducers
Power/Network Cable for LiveScope™ 2 Transducers
Bulkhead Connector Kit for LiveScope™ 2 and 12-pin Scanning Transducers
Extension Cable for LiveScope™ 2 Series, 1 m (3 ft)
Extension Cable for LiveScope™ 2 Series, 3 m (10 ft)
Adjustable Perspective Shaft Mount for LiveScope™ Transducers
Adjustable Perspective Bottom Mount for LiveScope™ Transducers
Force® Kraken LiveScope™ Mounting Bracket
Cable coupler for Garmin BlueNet™ network
Garmin Marine Network adapter cable
Garmin BlueNet™ Marine Network Cable, 6 ft
Garmin BlueNet™ Marine Network Cable, 20 ft
Garmin BlueNet™ Network Cable, 40 ft
Garmin BlueNet™ Network Cable, 50 ft (Right Angle)
Garmin BlueNet™ Network Cable (1 ft)
Garmin BlueNet™ 20 Switch
Garmin GMS 10 Ethernet Network Port Expander or Network Switch
Garmin Cable Grommet for Marine Network Cables
Garmin Marine Network Cable Connector RJ45 Plug 2 Pack
Garmin Replacement RJ45 Split Threaded collar Connector 2 Pack 18mm
No compatible products found.
Sonar
| Sonar type | Live-scanning sonar (LiveScope 2) |
| Viewing modes | Forward, Down and Perspective (adjustable perspective shaft mount included) |
| Frequency | 600 kHz to 1,050 kHz |
| Transmit power | 392 W |
| Maximum depth/range | Down and Forward: 76 m (250 ft); dependent on water salinity, bottom type and conditions |
| Beamwidth (forward) | 20 x 165 degrees |
| Beamwidth (down/perspective) | 20 x 180 degrees |
| Target separation | 9.6 cm at 9 m (30 ft); 32 cm at 30 m (100 ft) |
| Water detection transmit control | Yes |
Connectivity
| Network connection | Garmin BlueNet (small connector) with GMN1 adapter; connects directly to a compatible Garmin chartplotter, no black box required |
| Power connection | Yes (2-wire) |
Electrical
| Input voltage | 10 to 35 V DC |
| Power usage | 32 W max |
| Fuse | 7.5 A |
Physical
| Dimensions (L x H x W) | 160 x 142 x 48 mm (6.3 x 5.6 x 1.9 in) |
| Weight (with cable) | 1.79 kg (3.9 lb) |
| Transducer cable length | 5.5 m (18 ft) |
| Transducer connector | 7-pin |
General
| Compass safe distance | 10 cm (4 in) |
| Operating temperature | 0 to 40°C (32 to 104°F) |
| Storage temperature | -40 to 85°C (-40 to 185°F) |
