Lopolight
Lopolight NL101-001 6M 1nm 112.5° Starboard Sidelight with 6m Cable
£292.09
/
Tax included.
Shipping calculated at checkout.
NL101-001 6M
Lopolight 1nm 112.5° Starboard Sidelight with 6m Cable (NL101-001 6M): LED navigation light, 1 nm visibility, 10-32 VDC, IP68.
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

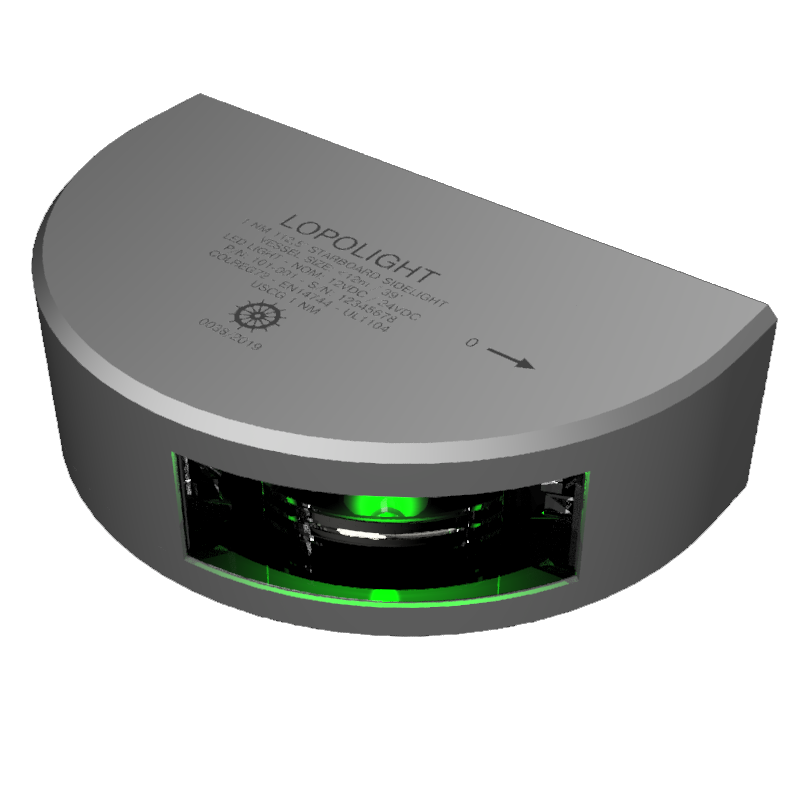

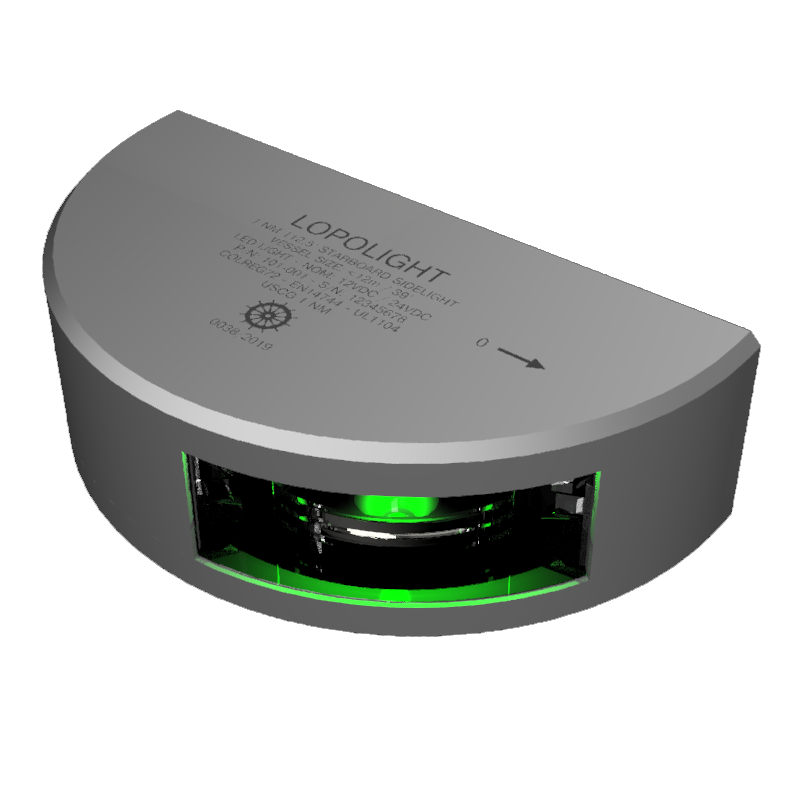

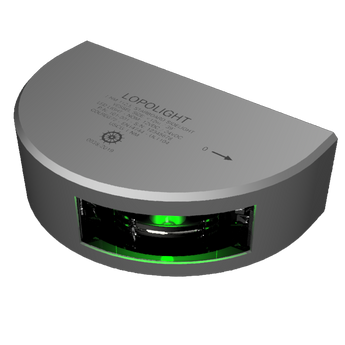

The Lopolight 1nm 112.5° Starboard Sidelight with 6m Cable (part number NL101-001 6M) is an LED navigation light from Lopolight of Denmark.
Key points: 1 nm visibility, 112.5° light arc. It operates from 10-32 VDC and draws 1.1 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, vertical mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight).
PRODUCT DETAILS
- 1 nm visibility
- 112.5° light arc
- 10-32 VDC operating voltage
- IP68 protection
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Vertical mounting
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Performance
| Visibility | 1nm |

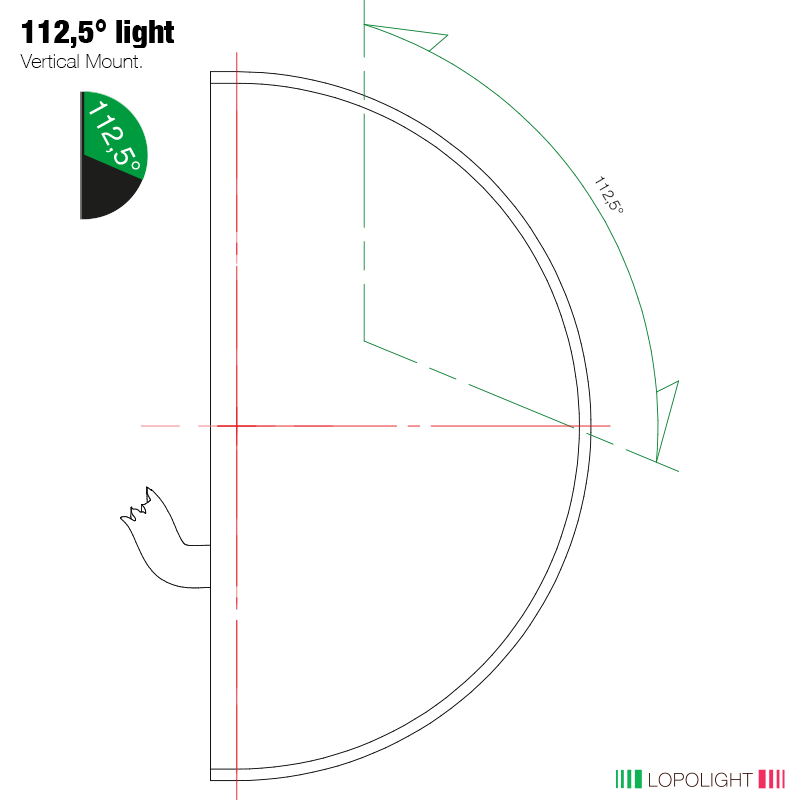

| Light arc | 112.5° |
Electrical
| Operating voltage | 10-32VDC |
| Power draw (W) | 1.1 |
| Current consumption @ 12 VDC | 66 mA |
| Current consumption @ 24 VDC | 34 mA |
| Minimum feed wire gauge | 0.5mm2 AWG22 |
Mechanical
| Mounting | Vertical |
| Dimensions | 92,5 x 28 x 49,7 mm |
| Materials | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Weight | 0.61 kg |
Environmental
| IP rating | IP68 |
| Operating temperature | -25°C to 55°C |
Approvals
| Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
General
| Lopolight part number | 101-001 6M |
| IMP part number | NL101-001 6M |
| UPC | 879343016173 |
| EAN | 5704438016163 |
No videos available for this product.
What is the visibility range of the Lopolight NL101-001 6M?
Lopolight specifies 1 nautical mile(s) visibility for this part.
What supply voltage does the Lopolight NL101-001 6M need?
Lopolight lists an operating voltage of 10-32 VDC with a power draw of 1.1 W.
Which approvals does the Lopolight NL101-001 6M carry?
Lopolight lists approvals to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR. Declarations of conformity and certificates are published on lopolight.com under Support.
