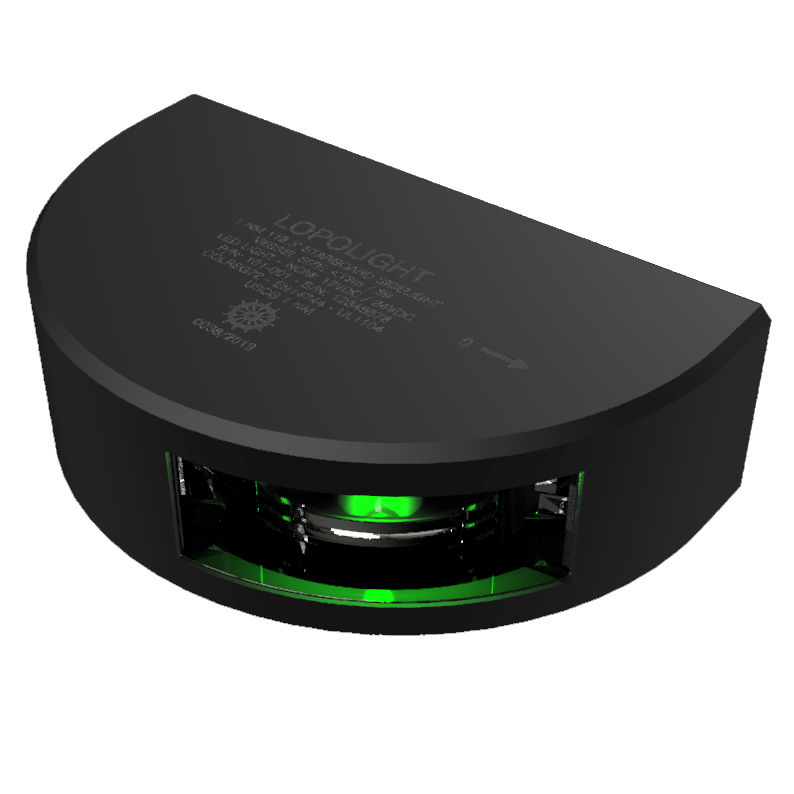

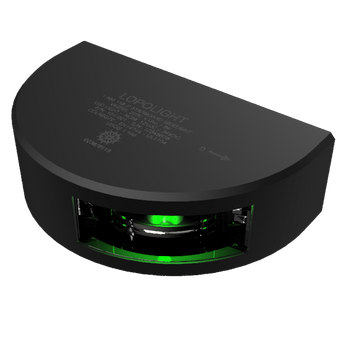

Lopolight NL101-001-B 1nm 112.5° Starboard Sidelight, Black with 2.5m Cable
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Lopolight 1nm 112.5° Starboard Sidelight, Black with 2.5m Cable (part number NL101-001-B) is an LED navigation light from Lopolight of Denmark.
Key points: 1 nm visibility, 112.5° light arc. It operates from 10-32 VDC and draws 1.1 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, vertical mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight).
Supplied with: 1 Navigation light, precabled with 2.5 meter shielded marine grade cable, Installation guide.
PRODUCT DETAILS
- 1 nm visibility
- 112.5° light arc
- 10-32 VDC operating voltage
- IP68 protection
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Vertical mounting
- Connection: 2.5m cable
- 1 Navigation light, precabled with 2.5 meter shielded marine grade cable, Installation guide
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Performance
| Visibility | 1nm |
| Light arc | 112.5° |
Electrical
| Operating voltage | 10-32VDC |
| Power draw (W) | 1.1 |
| Current consumption @ 12 VDC | 66 mA |
| Current consumption @ 24 VDC | 34 mA |
| Minimum feed wire gauge | 0.5mm2 AWG22 |
Mechanical
| Mounting | Vertical |
| Dimensions | 92,5 x 28 x 49,7 mm |
| Connection | 2.5m cable |
| Materials | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Housing finish | Black anodized |
| Weight | 0.39 kg |
Environmental
| IP rating | IP68 |
| Operating temperature | -25°C to 55°C |
Approvals
| Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
General
| Lopolight part number | 101-001-B |
| IMP part number | NL101-001-B |
| UPC | 879343010287 |
| EAN | 5704438010284 |
