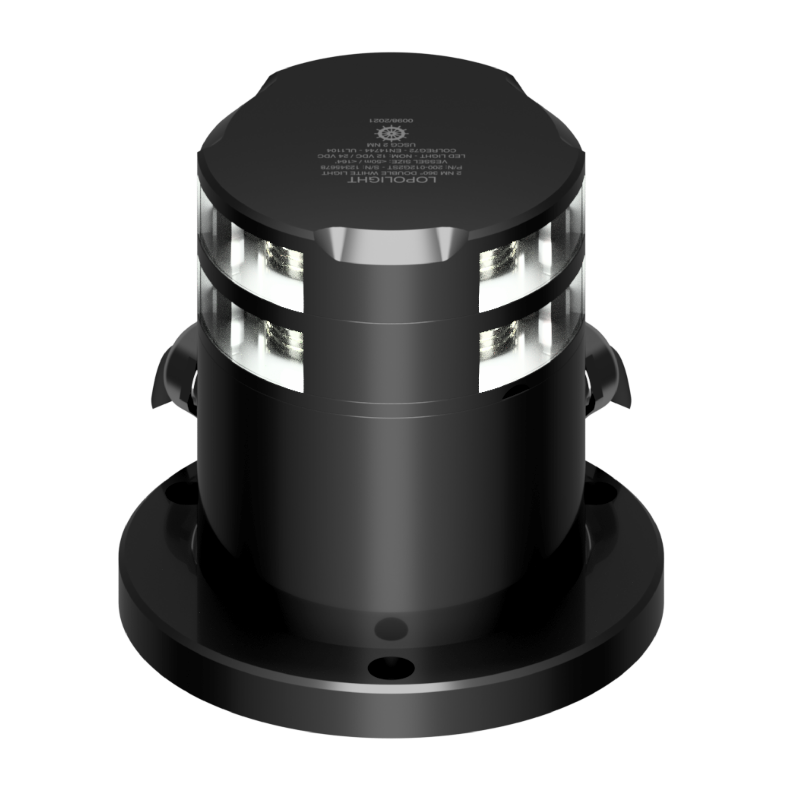

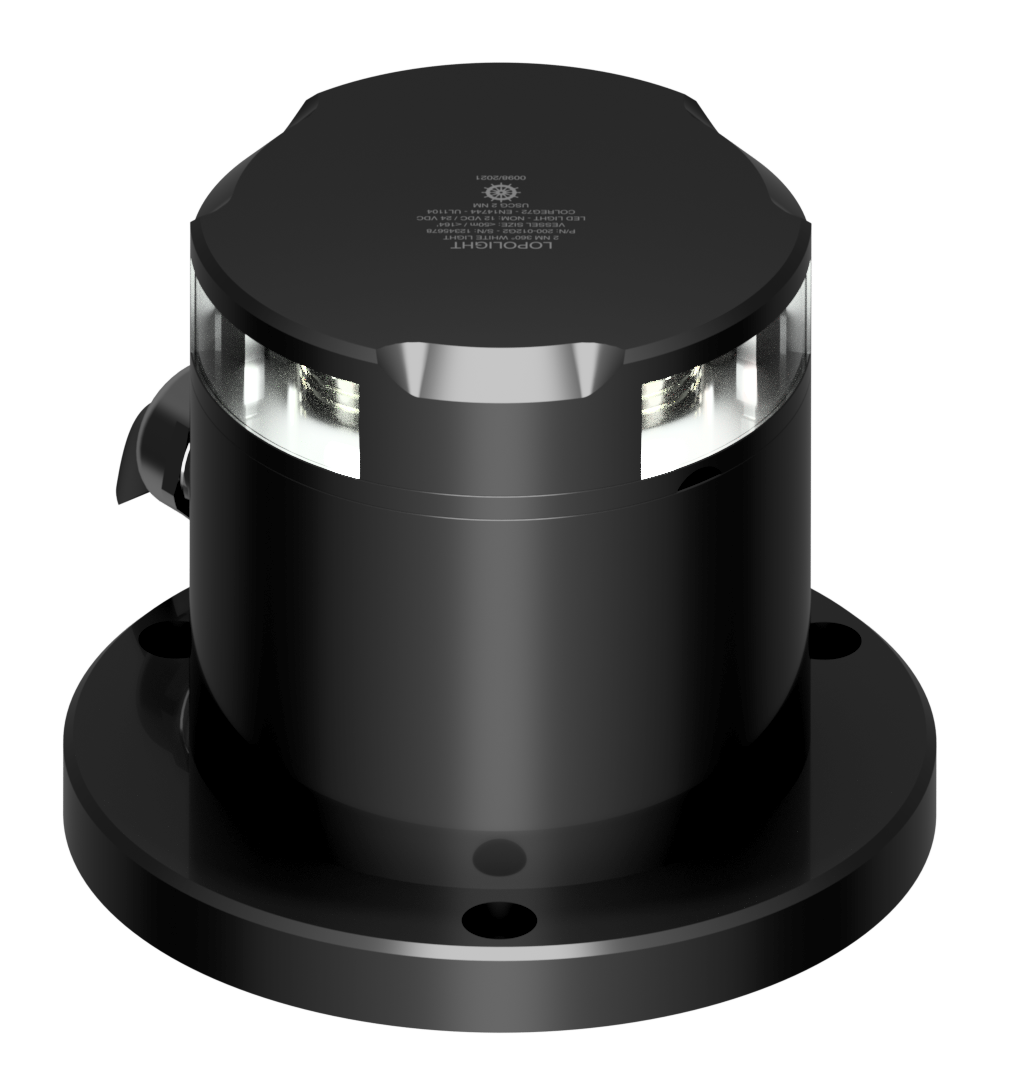

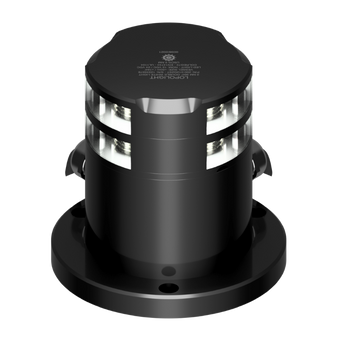

Lopolight NL200-012G2-PRO 2nm 360° White, Black Anodized

£561.80
Tax included. Shipping calculated at checkout.
NL200-012G2-PRO
Lopolight 2nm 360° White, Black Anodized (NL200-012G2-PRO): LED navigation light, 2 nm visibility, 10-32 VDC, IP68.

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Lopolight 2nm 360° White, Black Anodized (part number NL200-012G2-PRO) is an LED navigation light from Lopolight of Denmark.

Key points: 2 nm visibility, 360° light arc, white light. It operates from 10-32 VDC and draws 2.6 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, horizontal mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: Under 12M, 12-20M, 20-50M.

Supplied with: 1 Navigation light, Installation guide.

PRODUCT DETAILS

  • 2 nm visibility (>5.4cd)
  • 360° light arc
  • 10-32 VDC operating voltage
  • IP68 protection
  • Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
  • Horizontal mounting
  • Connection: Plug connector
  • 1 Navigation light, Installation guide

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Performance

Visibility2nm
Visibility2nm
Intensity>5.4cd
Intensity>5.4cd
Light arc360°
Light arc360°
Light colourWhite
Light colourWhite

Electrical

Operating voltage10-32VDC
Operating voltage10-32VDC
Power draw (W)2.6
Power draw (W)2.6
Current consumption @ 12 VDC167 mA
Current consumption @ 12 VDC167 mA
Current consumption @ 24 VDC110 mA
Current consumption @ 24 VDC110 mA
Minimum feed wire gauge0.5mm2 AWG22
Minimum feed wire gauge0.5mm2 AWG22

Mechanical

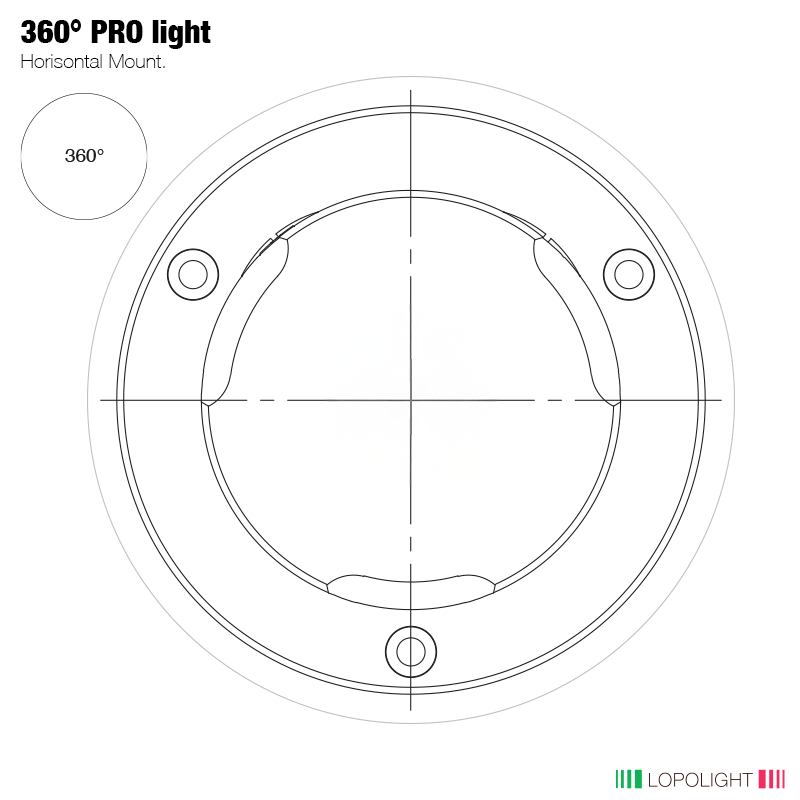

MountingHorizontal
MountingHorizontal
DimensionsØ92,5mm x 75mm
DimensionsØ92,5mm x 75mm
ConnectionPlug connector
ConnectionPlug connector
MaterialsBlack hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
MaterialsBlack hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Housing finishBlack anodized
Housing finishBlack anodized
Weight1 kg
Weight1 kg

Environmental

IP ratingIP68
IP ratingIP68
Operating temperature-25°C to 55°C
Operating temperature-25°C to 55°C

Approvals

Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR

General

Vessel size (Lopolight range)Under 12M,12-20M,20-50M
Vessel size (Lopolight range)Under 12M,12-20M,20-50M
Lopolight part number200-012G2-PRO
Lopolight part number200-012G2-PRO
IMP part numberNL200-012G2-PRO
IMP part numberNL200-012G2-PRO
UPC879343012076
UPC879343012076
EAN5704438012073
EAN5704438012073

No videos available for this product.

What is the visibility range of the Lopolight NL200-012G2-PRO?
Lopolight specifies 2 nautical mile(s) visibility with intensity >5.4cd for this part.
What supply voltage does the Lopolight NL200-012G2-PRO need?
Lopolight lists an operating voltage of 10-32 VDC with a power draw of 2.6 W.
Which approvals does the Lopolight NL200-012G2-PRO carry?
Lopolight lists approvals to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR. Declarations of conformity and certificates are published on lopolight.com under Support.
