Lopolight NL200-012G2-UL 2nm 360° White, Silver Anodized
Lopolight NL200-012G2-UL 2nm 360° White, Silver Anodized (lopolight.com image)

Lopolight

Lopolight NL200-012G2-UL 2nm 360° White, Silver Anodized

£577.40
Tax included. Shipping calculated at checkout.
NL200-012G2-UL
Lopolight 2nm 360° White, Silver Anodized (NL200-012G2-UL): LED navigation light, 2 nm visibility, 10-32 VDC, IP68.

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

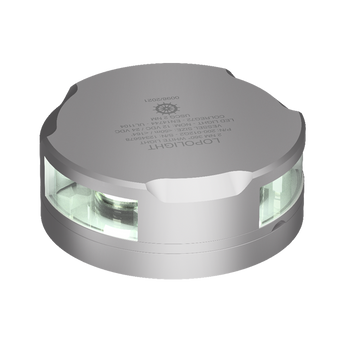

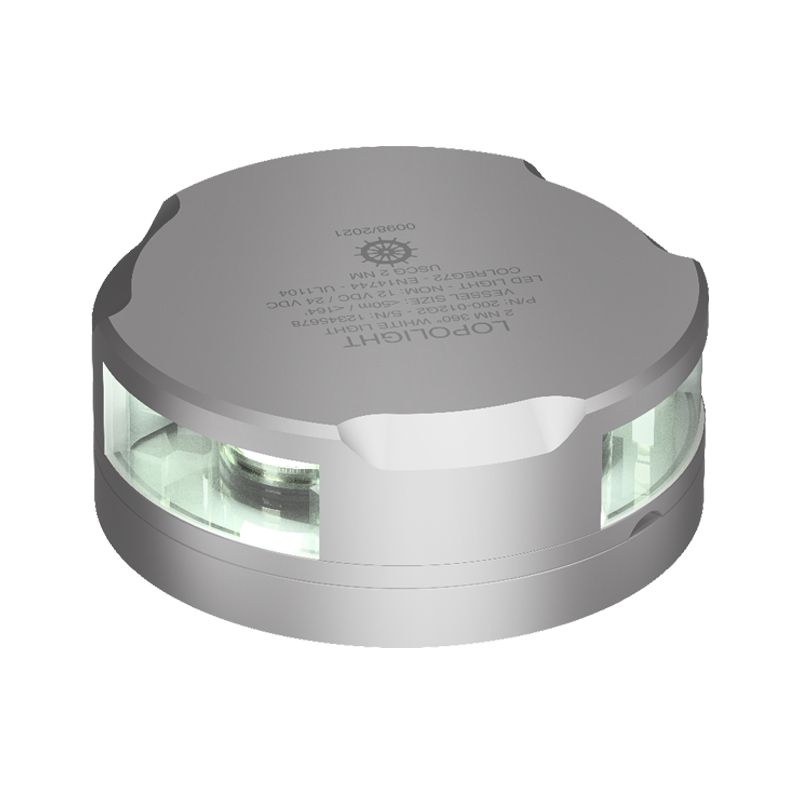

The Lopolight 2nm 360° White, Silver Anodized (part number NL200-012G2-UL) is an LED navigation light from Lopolight of Denmark.

Key points: 2 nm visibility, 360° light arc, white light. It operates from 10-32 VDC. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, horizontal mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: Under 12M, 12-20M, 20-50M.

Supplied with: 1 Navigation light, precabled with 0.75 meter shielded marine grade cable, Installation guide.

PRODUCT DETAILS

  • 2 nm visibility (>5.4cd)
  • 360° light arc
  • 10-32 VDC operating voltage
  • IP68 protection
  • Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
  • Horizontal mounting
  • Connection: 0.7m cable
  • 1 Navigation light, precabled with 0.75 meter shielded marine grade cable, Installation guide

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Performance

Visibility2nm
Visibility2nm
Intensity>5.4cd
Intensity>5.4cd

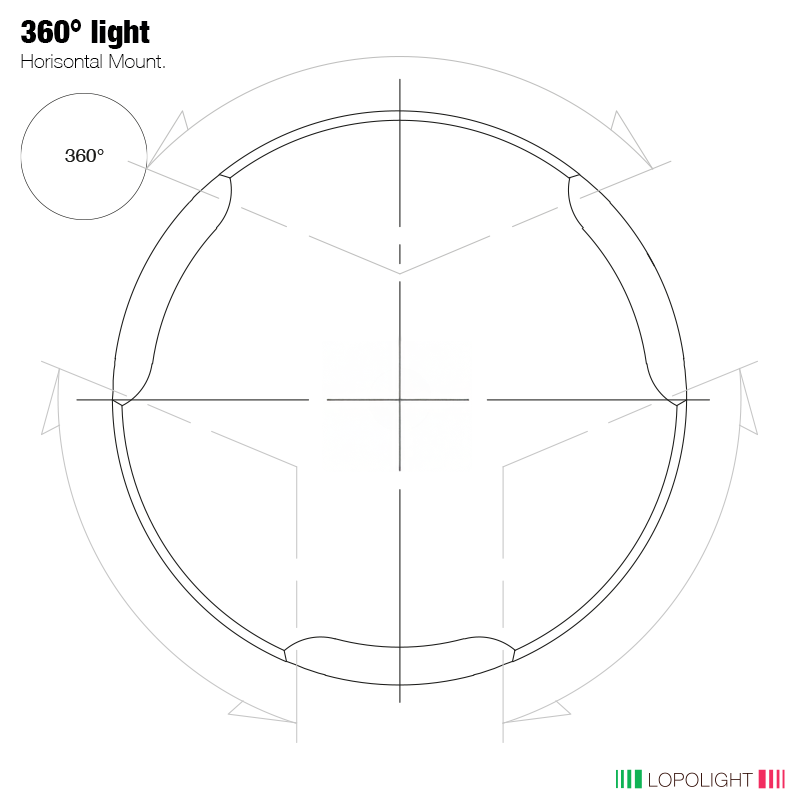

Light arc360°
Light arc360°
Light colourWhite
Light colourWhite

Electrical

Operating voltage10-32VDC
Operating voltage10-32VDC
Current consumption @ 12 VDC167 mA
Current consumption @ 12 VDC167 mA
Current consumption @ 24 VDC110 mA
Current consumption @ 24 VDC110 mA

Mechanical

MountingHorizontal
MountingHorizontal
DimensionsØ92,5mm x 86,5mm
DimensionsØ92,5mm x 86,5mm
Connection0.7m cable
Connection0.7m cable
MaterialsSilver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
MaterialsSilver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Housing finishSilver anodized
Housing finishSilver anodized
Weight0.53 kg
Weight0.53 kg

Environmental

IP ratingIP68
IP ratingIP68
Operating temperature-25°C to 55°C
Operating temperature-25°C to 55°C

Approvals

Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR

General

Vessel size (Lopolight range)Under 12M,12-20M,20-50M
Vessel size (Lopolight range)Under 12M,12-20M,20-50M
Lopolight part number200-012G2-UL
Lopolight part number200-012G2-UL
IMP part numberNL200-012G2-UL
IMP part numberNL200-012G2-UL
UPC879343022341
UPC879343022341
EAN5704438022218
EAN5704438022218

No videos available for this product.

What is the visibility range of the Lopolight NL200-012G2-UL?
Lopolight specifies 2 nautical mile(s) visibility with intensity >5.4cd for this part.
What supply voltage does the Lopolight NL200-012G2-UL need?
Lopolight lists an operating voltage of 10-32 VDC.
Which approvals does the Lopolight NL200-012G2-UL carry?
Lopolight lists approvals to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR. Declarations of conformity and certificates are published on lopolight.com under Support.
