Lopolight
Lopolight NL200-012G2ST-PRO 2nm 360° White, Double, Black Anodized
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

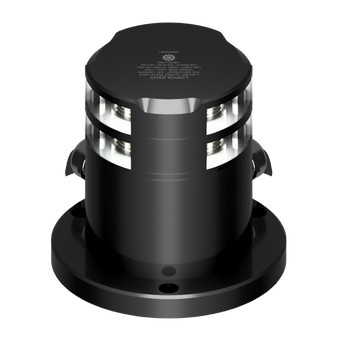

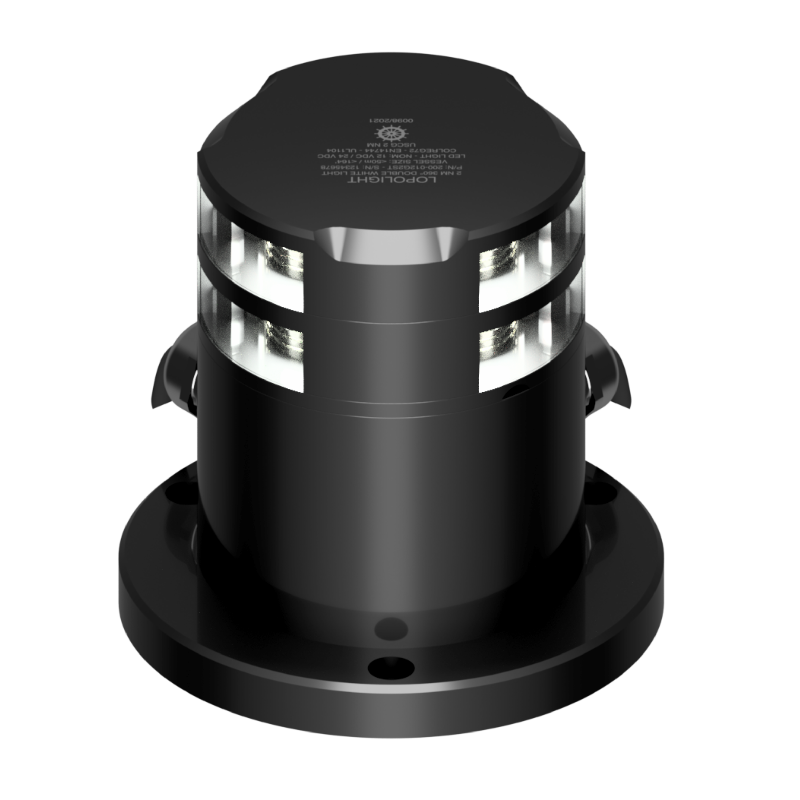

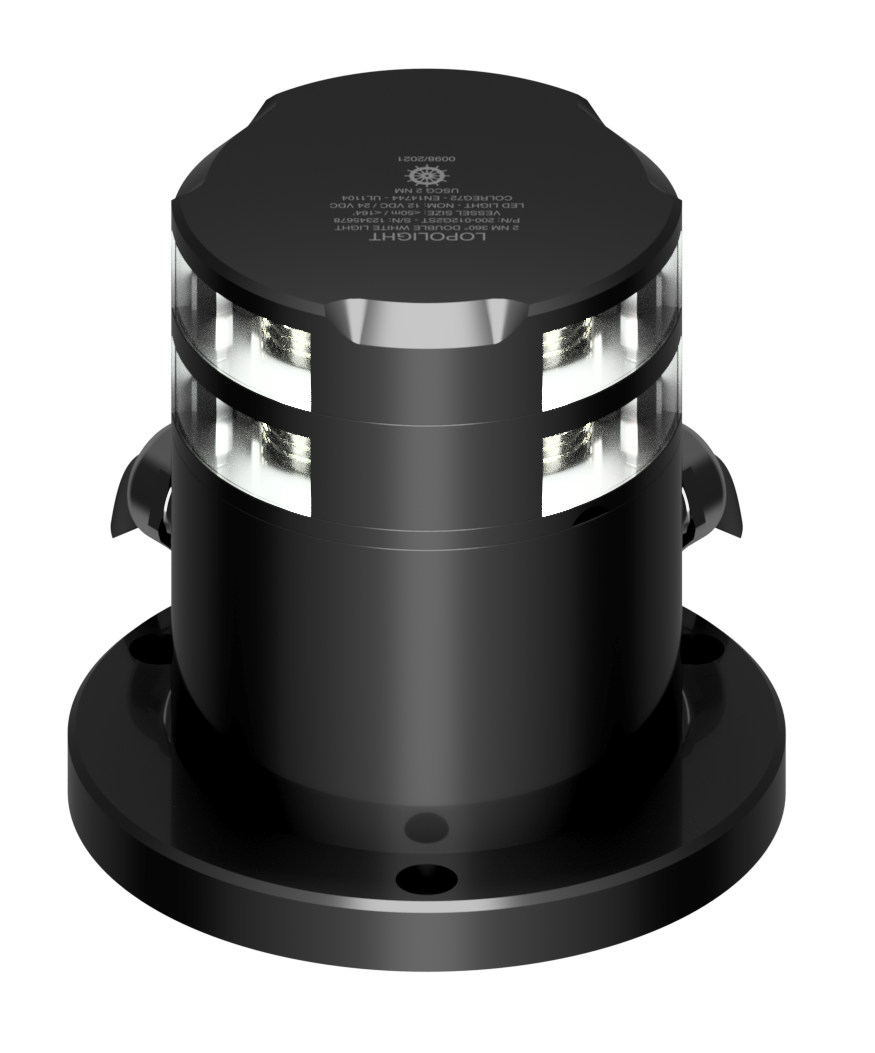

The Lopolight 2nm 360° White, Double, Black Anodized (part number NL200-012G2ST-PRO) is an LED navigation light from Lopolight of Denmark.
Key points: 2 nm visibility, 360° light arc, white light. It operates from 10-32 VDC and draws 2.6 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, horizontal mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: Under 12M, 12-20M, 20-50M.
PRODUCT DETAILS
- 2 nm visibility (>5.4cd)
- 360° light arc
- 10-32 VDC operating voltage
- IP68 protection
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Horizontal mounting
- Connection: Plug connector
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Performance
| Visibility | 2nm |
| Intensity | >5.4cd |
| Light arc | 360° |
| Light colour | White |
Electrical
| Operating voltage | 10-32VDC |
| Power draw (W) | 2.6 |
| Current consumption @ 12 VDC | 167 mA |
| Current consumption @ 24 VDC | 110 mA |
| Minimum feed wire gauge | 0.5mm2 AWG22 |
Mechanical

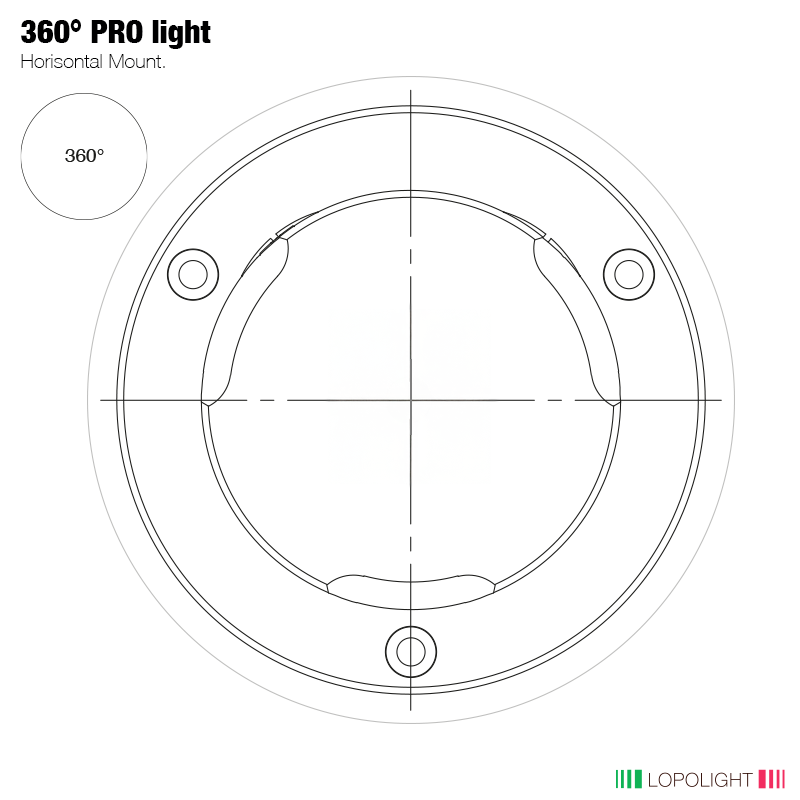

| Mounting | Horizontal |
| Dimensions | Ø92,5mm x 96,5mm |
| Connection | Plug connector |
| Materials | Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Housing finish | Black anodized |
| Weight | 1.3 kg |
Environmental
| IP rating | IP68 |
| Operating temperature | -25°C to 55°C |
Approvals
| Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
General
| Vessel size (Lopolight range) | Under 12M,12-20M,20-50M |
| Lopolight part number | 200-012G2ST-PRO |
| IMP part number | NL200-012G2ST-PRO |
| UPC | 879343012090 |
| EAN | 5704438012097 |
