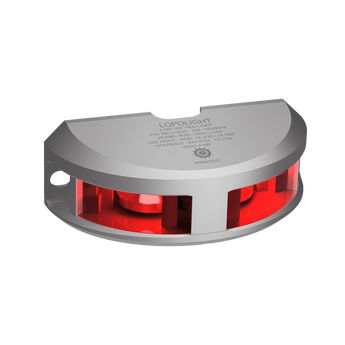

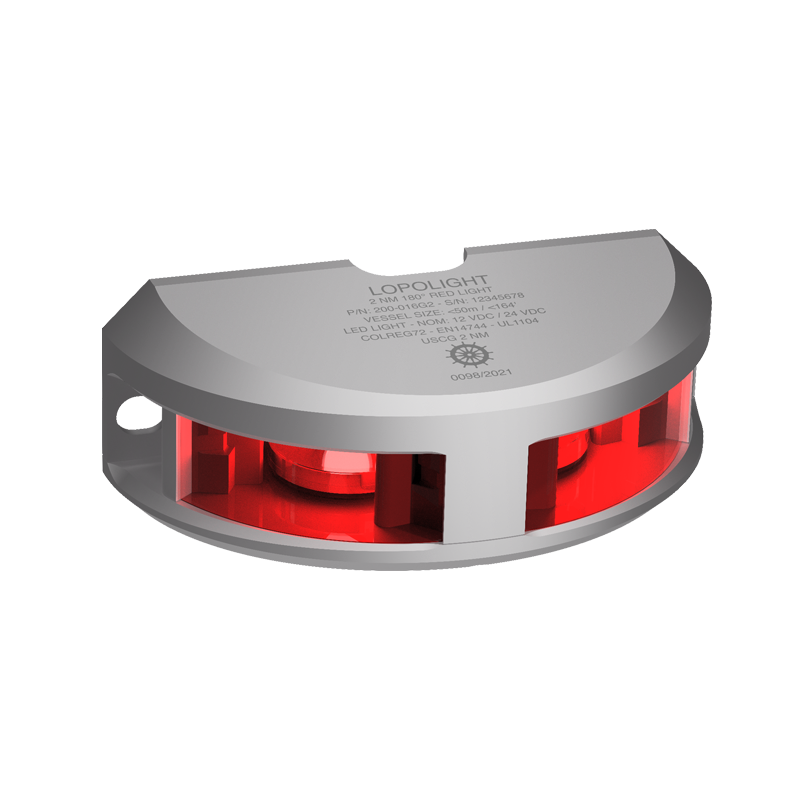

Lopolight NL200-016G2 6M silver anodised 180° red navigation light, front view showing the red lens openingsLopolight NL200-016G2 6M silver anodised 180° red navigation light, front view showing the red lens openings
Lopolight NL200-016G2 6M silver anodised 180° red navigation light, front view showing the red lens openings

Lopolight

Lopolight NL200-016G2 6M 2nm 180° Red, Silver Anodized

£353.81
Tax included. Shipping calculated at checkout.
NL200-016G2 6M
Lopolight 2nm 180° Red, Silver Anodized (NL200-016G2 6M): LED navigation light, 2 nm visibility, 10-32 VDC, IP68.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Lopolight 2nm 180° Red, Silver Anodized (part number NL200-016G2 6M) is an LED navigation light from Lopolight of Denmark.

Key points: 2 nm visibility, 180° light arc, red light. It operates from 10-32 VDC and draws 1.5 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, vertical mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: Under 12M, 12-20M, 20-50M.

Supplied with: 1 Navigation light, Installation guide.

PRODUCT DETAILS

  • 2 nm visibility (>5.4cd)
  • 180° light arc
  • 10-32 VDC operating voltage
  • IP68 protection
  • Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
  • Vertical mounting
  • Connection: 6m cable
  • 1 Navigation light, Installation guide

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Performance

Visibility2nm
Intensity>5.4cd
Light arc180°
Light colourRed

Electrical

Operating voltage10-32VDC
Power draw (W)1.5
Current consumption @ 12 VDC145 mA
Current consumption @ 24 VDC60 mA
Minimum feed wire gauge0.5mm2 AWG22

Mechanical

MountingVertical
Dimensions104 mm x 37 mm x 45 mm
Connection6m cable
MaterialsSilver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Housing finishSilver anodized
Weight0.48 kg

Environmental

IP ratingIP68
Operating temperature-25°C to 55°C

Approvals

Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR

General

Vessel size (Lopolight range)Under 12M,12-20M,20-50M
Lopolight part number200-016G2 6M
IMP part numberNL200-016G2 6M
UPC879343020965
EAN5704438020832

No videos available for this product.

What is the visibility range of the Lopolight NL200-016G2 6M?
Lopolight specifies 2 nautical mile(s) visibility with intensity >5.4cd for this part.
What supply voltage does the Lopolight NL200-016G2 6M need?
Lopolight lists an operating voltage of 10-32 VDC with a power draw of 1.5 W.
Which approvals does the Lopolight NL200-016G2 6M carry?
Lopolight lists approvals to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR. Declarations of conformity and certificates are published on lopolight.com under Support.
