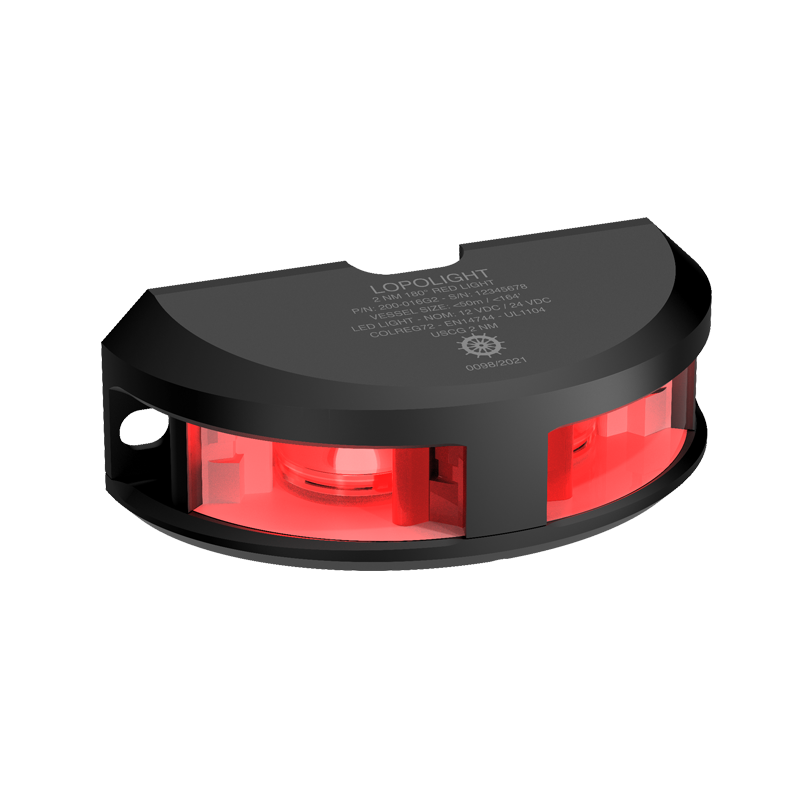

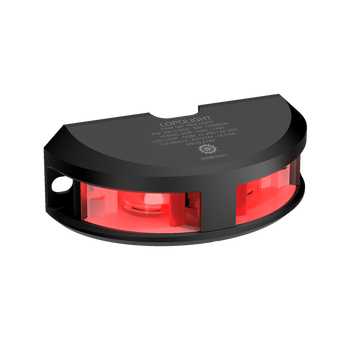

Lopolight NL200-016G2-B 6M 2nm 180° Red, Black Anodized
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Lopolight 2nm 180° Red, Black Anodized (part number NL200-016G2-B 6M) is an LED navigation light from Lopolight of Denmark.
Key points: 2 nm visibility, 180° light arc, red light. Lopolight lists it as IP68 rated, vertical mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: Under 12M, 12-20M, 20-50M.
Supplied with: 1 Navigation light, Installation guide.
PRODUCT DETAILS
- 2 nm visibility (>5.4cd)
- 180° light arc
- IP68 protection
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Vertical mounting
- Connection: 6m cable
- 1 Navigation light, Installation guide
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Performance
| Visibility | 2nm |
| Visibility | 2nm |
| Intensity | >5.4cd |
| Intensity | >5.4cd |
| Light arc | 180° |
| Light arc | 180° |
| Light colour | Red |
| Light colour | Red |
Electrical
| Current consumption @ 12 VDC | 145 mA |
| Current consumption @ 12 VDC | 145 mA |
| Current consumption @ 24 VDC | 60 mA |
| Current consumption @ 24 VDC | 60 mA |
Mechanical
| Mounting | Vertical |
| Mounting | Vertical |
| Dimensions | 104 mm x 37 mm x 45 mm |
| Dimensions | 104 mm x 37 mm x 45 mm |
| Connection | 6m cable |
| Connection | 6m cable |
| Materials | Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Materials | Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Housing finish | Black anodized |
| Housing finish | Black anodized |
| Weight | 0.48 kg |
| Weight | 0.48 kg |
Environmental
| IP rating | IP68 |
| IP rating | IP68 |
Approvals
| Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
| Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
General
| Vessel size (Lopolight range) | Under 12M,12-20M,20-50M |
| Vessel size (Lopolight range) | Under 12M,12-20M,20-50M |
| Lopolight part number | 200-016G2-B 6M |
| Lopolight part number | 200-016G2-B 6M |
| IMP part number | NL200-016G2-B 6M |
| IMP part number | NL200-016G2-B 6M |
| UPC | 879343020972 |
| UPC | 879343020972 |
| EAN | 5704438020849 |
| EAN | 5704438020849 |
