Lopolight NL200-016G2ST 2nm 180° Red, Double on Back Plate with 0.7m Cable Lopolight NL200-016G2ST 2nm 180° Red, Double on Back Plate with 0.7m Cable
Lopolight NL200-016G2ST 2nm 180° Red, Double on Back Plate with 0.7m Cable

Lopolight

Lopolight NL200-016G2ST 2nm 180° Red, Double on Back Plate with 0.7m Cable

£624.17
Tax included. Shipping calculated at checkout.
NL200-016G2ST
Lopolight 2nm 180° Red, Double on Back Plate with 0.7m Cable (NL200-016G2ST): LED navigation light, 2 nm visibility, 10-32 VDC, IP68.

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

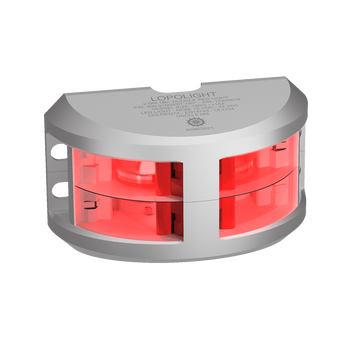

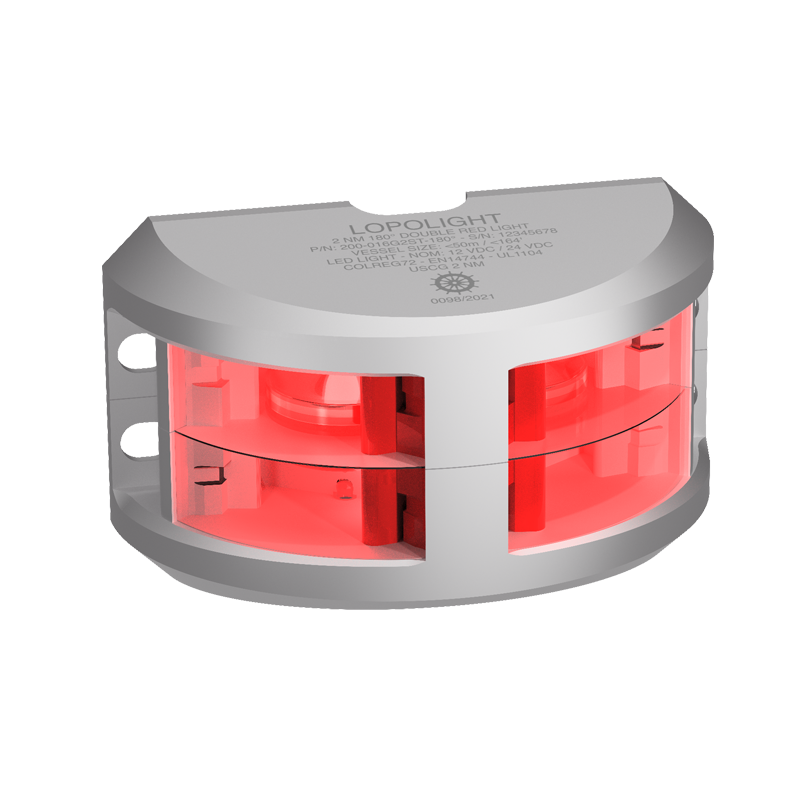

The Lopolight 2nm 180° Red, Double on Back Plate with 0.7m Cable (part number NL200-016G2ST) is an LED navigation light from Lopolight of Denmark.

Key points: 2 nm visibility, 180° light arc, red light. It operates from 10-32 VDC and draws 1.4 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, vertical mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: Under 12M, 12-20M, 20-50M.

Supplied with: 1 Navigation light, precabled with 0.75 meter shielded marine grade cable, Installation guide.

PRODUCT DETAILS

  • 2 nm visibility (>5.4cd)
  • 180° light arc
  • 10-32 VDC operating voltage
  • IP68 protection
  • Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
  • Vertical mounting
  • Connection: 0.7m cable
  • 1 Navigation light, precabled with 0.75 meter shielded marine grade cable, Installation guide

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Performance

Visibility2nm
Intensity>5.4cd
Light arc180°
Light colourRed

Electrical

Operating voltage10-32VDC
Power draw (W)1.4
Current consumption @ 12 VDC145 mA
Current consumption @ 24 VDC60 mA

Mechanical

MountingVertical
Connection0.7m cable
MaterialsSilver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Weight0.54 kg

Environmental

IP ratingIP68
Operating temperature-25°C to 55°C

Approvals

Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR

General

Vessel size (Lopolight range)Under 12M,12-20M,20-50M
Lopolight part number200-016G2ST
IMP part numberNL200-016G2ST
UPC879343021504
EAN5704438021372

No videos available for this product.

What is the visibility range of the Lopolight NL200-016G2ST?
Lopolight specifies 2 nautical mile(s) visibility with intensity >5.4cd for this part.
What supply voltage does the Lopolight NL200-016G2ST need?
Lopolight lists an operating voltage of 10-32 VDC with a power draw of 1.4 W.
Which approvals does the Lopolight NL200-016G2ST carry?
Lopolight lists approvals to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR. Declarations of conformity and certificates are published on lopolight.com under Support.
