Lopolight NL200-018G2 2nm 180° Green with 0.7m Cable Lopolight NL200-018G2 2nm 180° Green with 0.7m Cable
Lopolight NL200-018G2 2nm 180° Green with 0.7m Cable

Lopolight

Lopolight NL200-018G2 2nm 180° Green with 0.7m Cable

£316.02
Tax included. Shipping calculated at checkout.
NL200-018G2
Lopolight 2nm 180° Green with 0.7m Cable (NL200-018G2): LED navigation light, 2 nm visibility, 10-32 VDC, IP68.

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

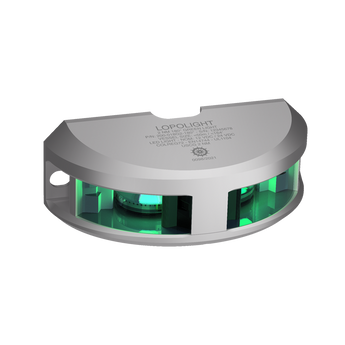

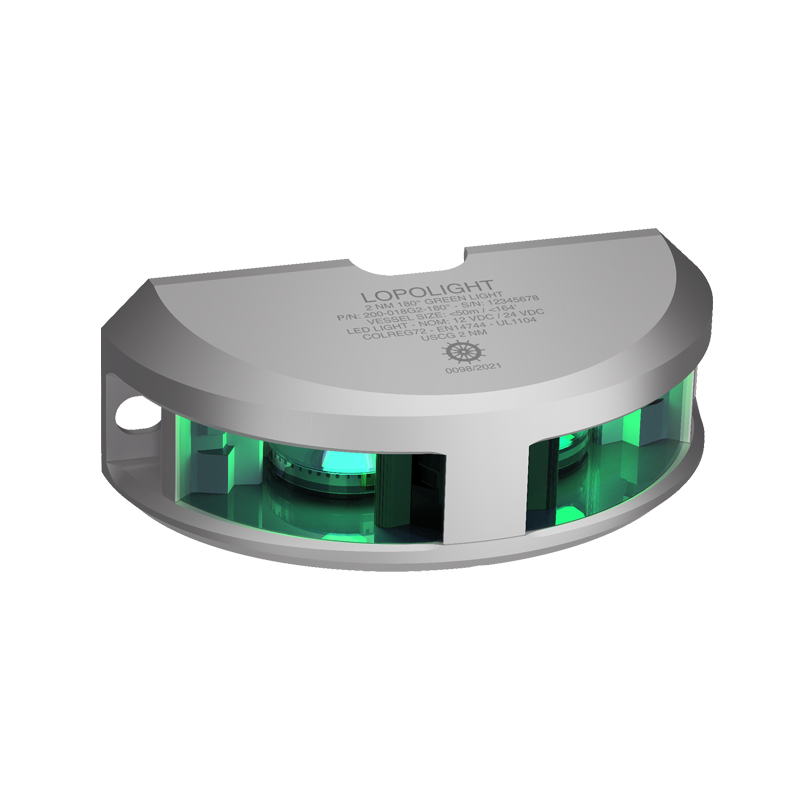

The Lopolight 2nm 180° Green with 0.7m Cable (part number NL200-018G2) is an LED navigation light from Lopolight of Denmark.

Key points: 2 nm visibility, 180° light arc, green light. It operates from 10-32 VDC and draws 1.5 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, vertical mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: Under 12M, 12-20M, 20-50M.

Supplied with: 1 Navigation light, precabled with 0.75 meter shielded marine grade cable, Installation guide.

PRODUCT DETAILS

  • 2 nm visibility (>5.4cd)
  • 180° light arc
  • 10-32 VDC operating voltage
  • IP68 protection
  • Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
  • Vertical mounting
  • Connection: 6m cable
  • 1 Navigation light, precabled with 0.75 meter shielded marine grade cable, Installation guide

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Performance

Visibility2nm
Intensity>5.4cd
Light arc180°
Light colourGreen

Electrical

Operating voltage10-32VDC
Power draw (W)1.5
Current consumption @ 12 VDC145 mA
Current consumption @ 24 VDC60 mA
Minimum feed wire gauge0.5mm2 AWG22

Mechanical

MountingVertical
Dimensions104 mm x 37 mm x 45 mm
Connection6m cable
MaterialsSilver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Weight0.34 kg

Environmental

IP ratingIP68
Operating temperature-25°C to 55°C

Approvals

Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR

General

Vessel size (Lopolight range)Under 12M,12-20M,20-50M
Lopolight part number200-018G2
IMP part numberNL200-018G2
UPC879343020538
EAN5704438020405

No videos available for this product.

What is the visibility range of the Lopolight NL200-018G2?
Lopolight specifies 2 nautical mile(s) visibility with intensity >5.4cd for this part.
What supply voltage does the Lopolight NL200-018G2 need?
Lopolight lists an operating voltage of 10-32 VDC with a power draw of 1.5 W.
Which approvals does the Lopolight NL200-018G2 carry?
Lopolight lists approvals to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR. Declarations of conformity and certificates are published on lopolight.com under Support.
