Lopolight NL200-018G2-B 20M 2nm 180° Green, Black Anodized Lopolight NL200-018G2-B 20M 2nm 180° Green, Black Anodized
Lopolight NL200-018G2-B 20M 2nm 180° Green, Black Anodized

Lopolight

Lopolight NL200-018G2-B 20M 2nm 180° Green, Black Anodized

£442.01
Tax included. Shipping calculated at checkout.
NL200-018G2-B 20M
Lopolight 2nm 180° Green, Black Anodized (NL200-018G2-B 20M): LED navigation light, 2 nm visibility, IP68.

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

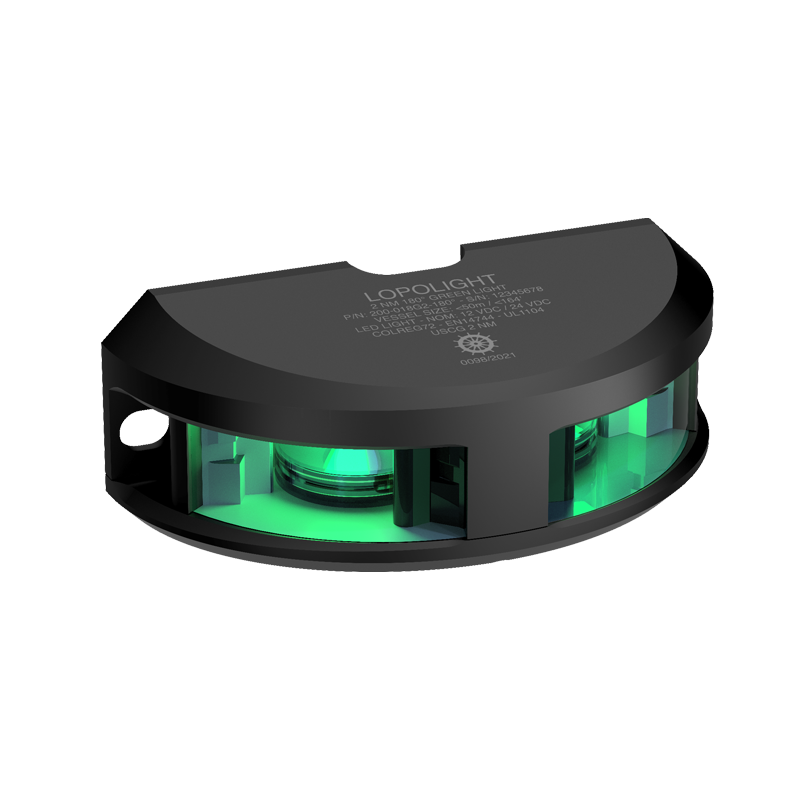

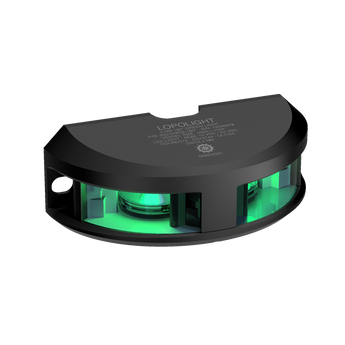

The Lopolight 2nm 180° Green, Black Anodized (part number NL200-018G2-B 20M) is an LED navigation light from Lopolight of Denmark.

Key points: 2 nm visibility, 180° light arc, green light. Lopolight lists it as IP68 rated, vertical mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: Under 12M, 12-20M, 20-50M.

Supplied with: 1 Navigation light, Installation guide.

PRODUCT DETAILS

  • 2 nm visibility (>5.4cd)
  • 180° light arc
  • IP68 protection
  • Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
  • Vertical mounting
  • 1 Navigation light, Installation guide

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Performance

Visibility2nm
Visibility2nm
Intensity>5.4cd
Intensity>5.4cd
Light arc180°
Light arc180°
Light colourGreen
Light colourGreen

Electrical

Current consumption @ 12 VDC145 mA
Current consumption @ 12 VDC145 mA
Current consumption @ 24 VDC60 mA
Current consumption @ 24 VDC60 mA

Mechanical

MountingVertical
MountingVertical
Dimensions104 mm x 37 mm x 45 mm
Dimensions104 mm x 37 mm x 45 mm
MaterialsBlack anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
MaterialsBlack anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Housing finishBlack anodized
Housing finishBlack anodized
Weight0.99 kg
Weight0.99 kg

Environmental

IP ratingIP68
IP ratingIP68

Approvals

Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR

General

Vessel size (Lopolight range)Under 12M,12-20M,20-50M
Vessel size (Lopolight range)Under 12M,12-20M,20-50M
Lopolight part number200-018G2-B 20M
Lopolight part number200-018G2-B 20M
IMP part numberNL200-018G2-B 20M
IMP part numberNL200-018G2-B 20M
UPC879343021092
UPC879343021092
EAN5704438020962
EAN5704438020962

No videos available for this product.

What is the visibility range of the Lopolight NL200-018G2-B 20M?
Lopolight specifies 2 nautical mile(s) visibility with intensity >5.4cd for this part.
Which approvals does the Lopolight NL200-018G2-B 20M carry?
Lopolight lists approvals to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR. Declarations of conformity and certificates are published on lopolight.com under Support.
