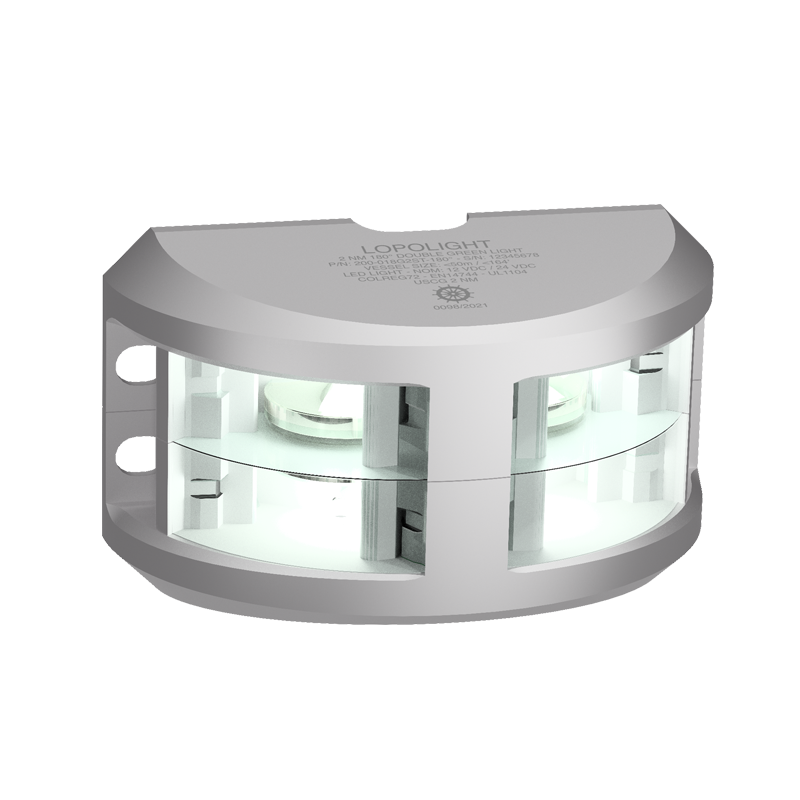

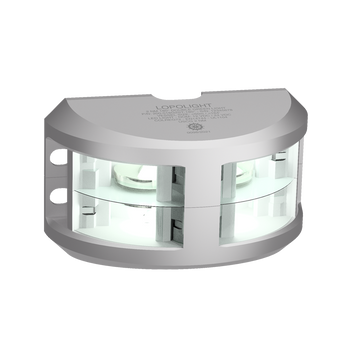

Lopolight NL200-024G2ST 20M 2nm 180° White, Double, Silver Anodized
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Lopolight 2nm 180° White, Double, Silver Anodized (part number NL200-024G2ST 20M) is an LED navigation light from Lopolight of Denmark.
Key points: 2 nm visibility, 180° light arc, white light. It operates from 10-32 VDC. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, vertical mounting. Approved to COLREG72, EN14744, IEC 60945, USCG (per Lopolight). Lopolight lists this part for vessel sizes: Under 12M, 12-20M, 20-50M.
Supplied with: 1 Navigation light, Installation guide.
PRODUCT DETAILS
- 2 nm visibility (>5.4cd)

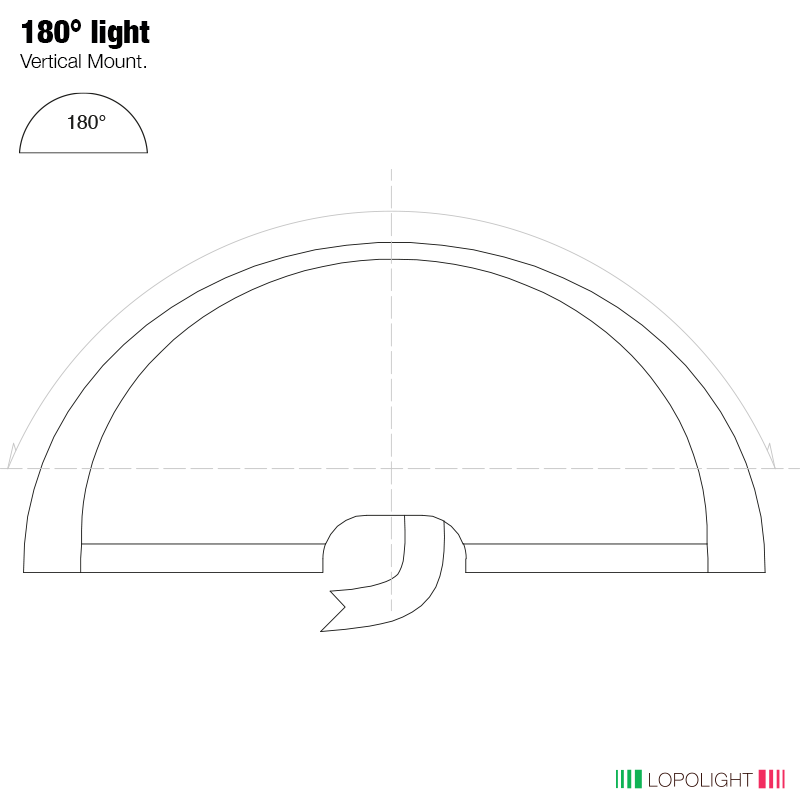

- 180° light arc
- 10-32 VDC operating voltage
- IP68 protection
- Approvals: COLREG72, EN14744, IEC 60945, USCG
- Vertical mounting
- 1 Navigation light, Installation guide
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Performance
| Visibility | 2nm |
| Intensity | >5.4cd |
| Light arc | 180° |
| Light colour | White |
Electrical
| Operating voltage | 10-32VDC |
| Current consumption @ 12 VDC | 137 mA |
| Current consumption @ 24 VDC | 80 mA |
Mechanical
| Mounting | Vertical |
| Materials | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Housing finish | Silver anodized |
| Weight | 1.97 kg |
Environmental
| IP rating | IP68 |
| Operating temperature | -25°C to 55°C |
Approvals
| Approved to | COLREG72,EN14744,IEC 60945,USCG |
General
| Vessel size (Lopolight range) | Under 12M,12-20M,20-50M |
| Lopolight part number | 200-024G2ST 20M |
| IMP part number | NL200-024G2ST 20M |
| UPC | 879343021931 |
| EAN | 5704438021808 |
