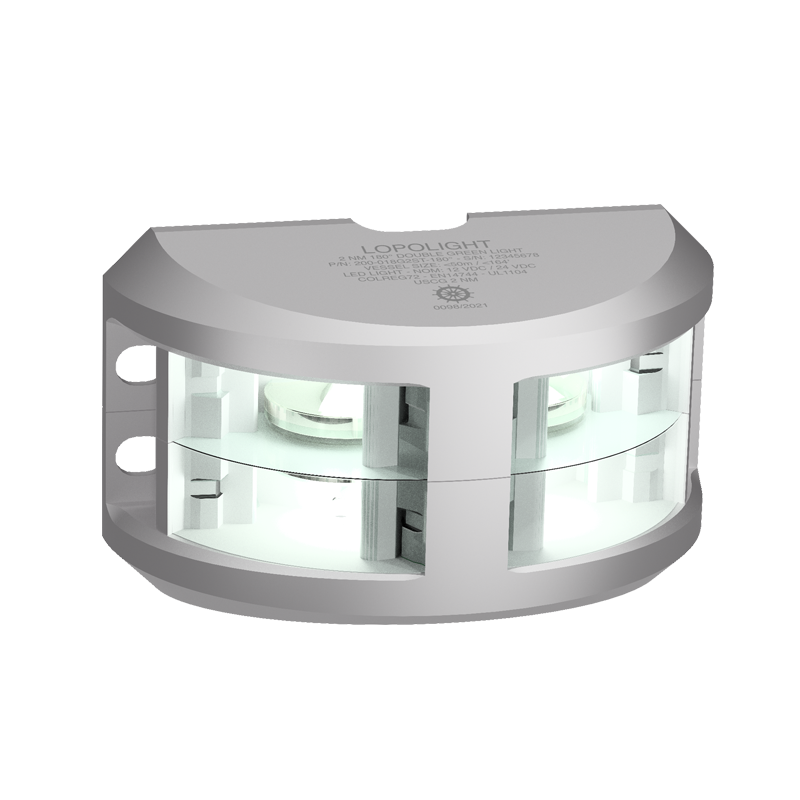

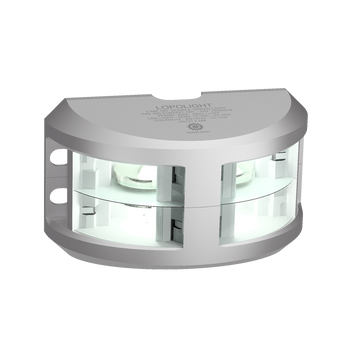

Lopolight NL200-024G2ST 6M 2nm 180° White, Double, Silver Anodized

£699.79
Tax included. Shipping calculated at checkout.
NL200-024G2ST 6M
Lopolight 2nm 180° White, Double, Silver Anodized (NL200-024G2ST 6M): LED navigation light, 2 nm visibility, 10-32 VDC, IP68.

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Lopolight 2nm 180° White, Double, Silver Anodized (part number NL200-024G2ST 6M) is an LED navigation light from Lopolight of Denmark.

Key points: 2 nm visibility, 180° light arc, white light. It operates from 10-32 VDC. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, vertical mounting. Approved to COLREG72, EN14744, IEC 60945, USCG (per Lopolight). Lopolight lists this part for vessel sizes: Under 12M, 12-20M, 20-50M.

Supplied with: 1 Navigation light, Installation guide.

PRODUCT DETAILS

  • 2 nm visibility (>5.4cd)

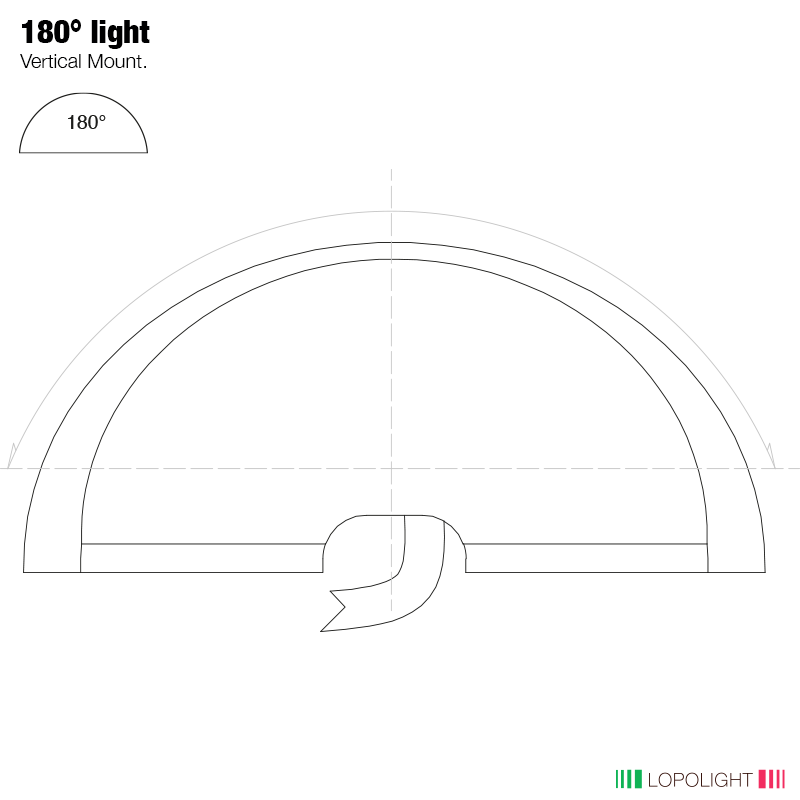

  • 180° light arc
  • 10-32 VDC operating voltage
  • IP68 protection
  • Approvals: COLREG72, EN14744, IEC 60945, USCG
  • Vertical mounting
  • Connection: 6m cable
  • 1 Navigation light, Installation guide

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Performance

Visibility2nm
Visibility2nm
Intensity>5.4cd
Intensity>5.4cd
Light arc180°
Light arc180°
Light colourWhite
Light colourWhite

Electrical

Operating voltage10-32VDC
Operating voltage10-32VDC
Current consumption @ 12 VDC137 mA
Current consumption @ 12 VDC137 mA
Current consumption @ 24 VDC80 mA
Current consumption @ 24 VDC80 mA

Mechanical

MountingVertical
MountingVertical
Connection6m cable
Connection6m cable
MaterialsSilver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
MaterialsSilver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Housing finishSilver anodized
Housing finishSilver anodized
Weight1.01 kg
Weight1.01 kg

Environmental

IP ratingIP68
IP ratingIP68
Operating temperature-25°C to 55°C
Operating temperature-25°C to 55°C

Approvals

Approved toCOLREG72,EN14744,IEC 60945,USCG
Approved toCOLREG72,EN14744,IEC 60945,USCG

General

Vessel size (Lopolight range)Under 12M,12-20M,20-50M
Vessel size (Lopolight range)Under 12M,12-20M,20-50M
Lopolight part number200-024G2ST 6M
Lopolight part number200-024G2ST 6M
IMP part numberNL200-024G2ST 6M
IMP part numberNL200-024G2ST 6M
UPC879343021924
UPC879343021924
EAN5704438021792
EAN5704438021792

No videos available for this product.

What is the visibility range of the Lopolight NL200-024G2ST 6M?
Lopolight specifies 2 nautical mile(s) visibility with intensity >5.4cd for this part.
What supply voltage does the Lopolight NL200-024G2ST 6M need?
Lopolight lists an operating voltage of 10-32 VDC.
Which approvals does the Lopolight NL200-024G2ST 6M carry?
Lopolight lists approvals to COLREG72, EN14744, IEC 60945, USCG. Declarations of conformity and certificates are published on lopolight.com under Support.
