Lopolight

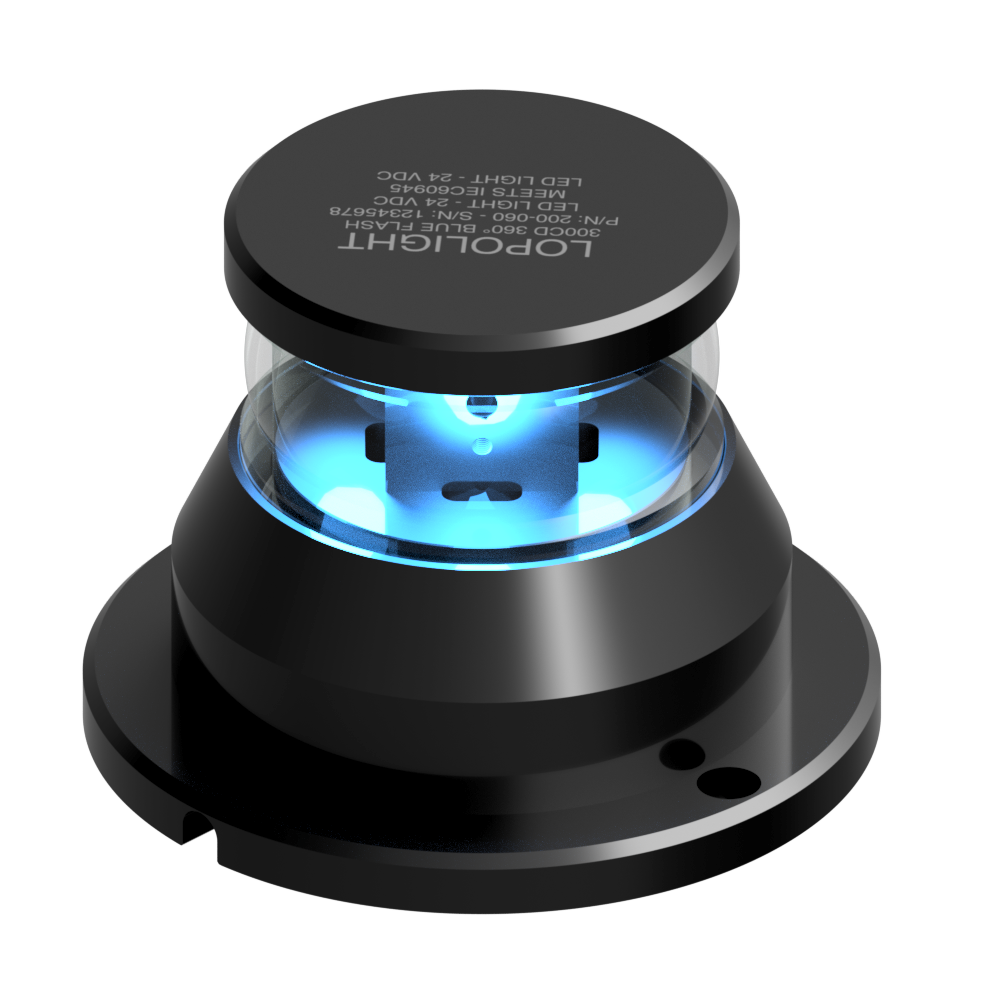

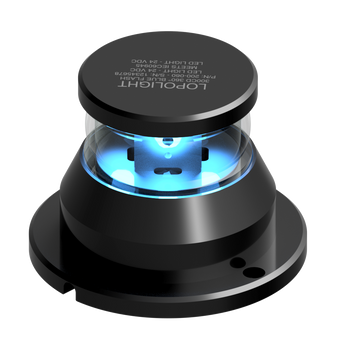

Lopolight NL200-060-B 360° Blue with Strobe (Double Flash, 300cd Intensity) with 0.7m Cable

£976.94
Tax included. Shipping calculated at checkout.
NL200-060-B
Lopolight 360° Blue with Strobe (Double Flash, 300cd Intensity) with 0.7m Cable (NL200-060-B): LED navigation light, 6 nm visibility, 20-32 VDC, IP68.

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Lopolight 360° Blue with Strobe (Double Flash, 300cd Intensity) with 0.7m Cable (part number NL200-060-B) is an LED navigation light from Lopolight of Denmark.

Key points: 6 nm visibility, 360° light arc, blue light. It operates from 20-32 VDC and draws 6 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, horizontal mounting. Approved to IEC 60945 (per Lopolight). Lopolight lists this part for vessel sizes: All Sizes.

PRODUCT DETAILS

  • 6 nm visibility (>94cd)
  • 360° light arc
  • 20-32 VDC operating voltage
  • IP68 protection
  • Approvals: IEC 60945
  • Horizontal mounting
  • Connection: Plug connector

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Performance

Visibility6nm
Intensity>94cd

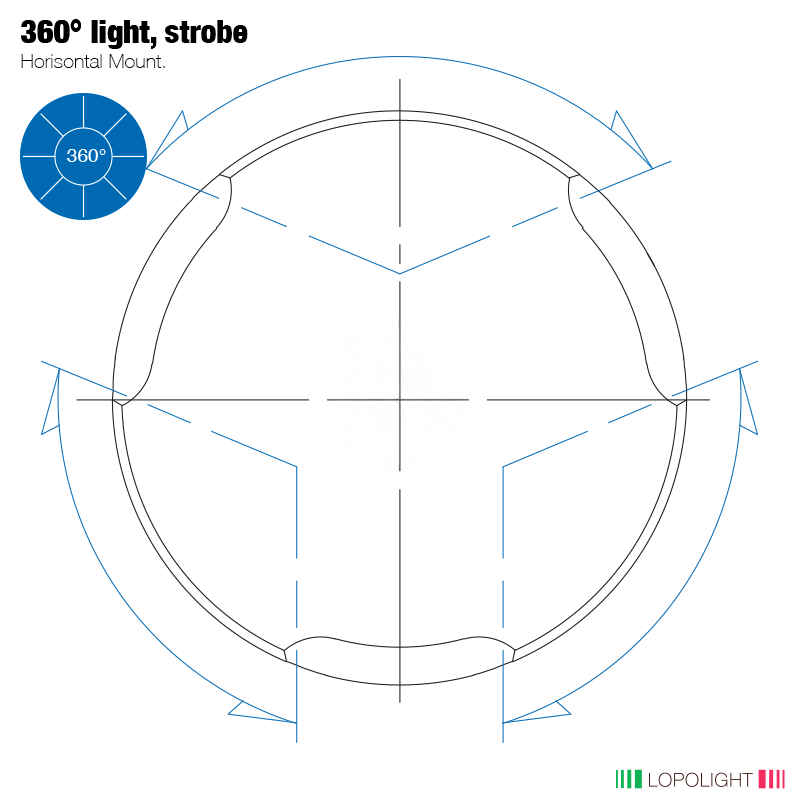

Light arc360°
Light colourBlue

Electrical

Operating voltage20-32VDC
Power draw (W)6
Current consumption @ 12 VDC600 mA
Current consumption @ 24 VDC300 mA
Minimum feed wire gauge0.5mm2 AWG22

Mechanical

MountingHorizontal
DimensionsØ92,5mm x 82mm
ConnectionPlug connector
MaterialsBlack anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Weight0.67 kg

Environmental

IP ratingIP68
Operating temperature-25°C to 55°C

Approvals

Approved toIEC 60945

General

Vessel size (Lopolight range)All Sizes
Lopolight part number200-060-B
IMP part numberNL200-060-B
UPC879343003241
EAN5704438003248

No videos available for this product.

What is the visibility range of the Lopolight NL200-060-B?
Lopolight specifies 6 nautical mile(s) visibility with intensity >94cd for this part.
What supply voltage does the Lopolight NL200-060-B need?
Lopolight lists an operating voltage of 20-32 VDC with a power draw of 6 W.
Which approvals does the Lopolight NL200-060-B carry?
Lopolight lists approvals to IEC 60945. Declarations of conformity and certificates are published on lopolight.com under Support.
