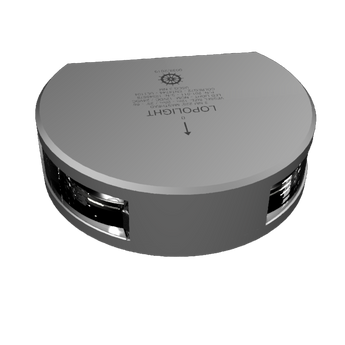

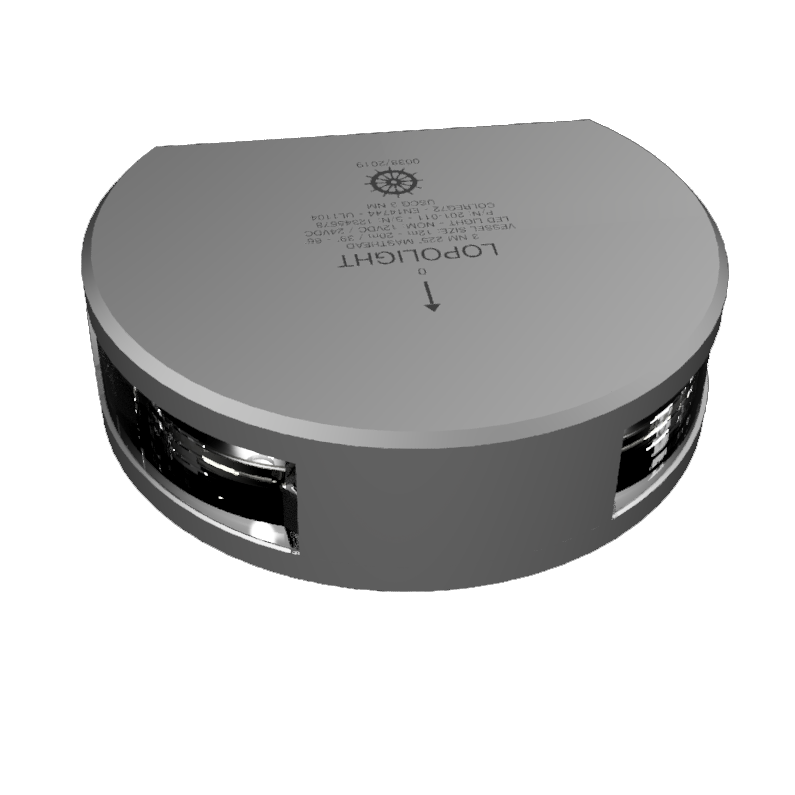

Lopolight NL201-011 15M 3nm 225° Masthead, Vertical Mount with 15m Cable Lopolight NL201-011 15M 3nm 225° Masthead, Vertical Mount with 15m Cable
Lopolight NL201-011 15M 3nm 225° Masthead, Vertical Mount with 15m Cable (lopolight.com image) Lopolight NL201-011 15M 3nm 225° Masthead, Vertical Mount with 15m Cable (lopolight.com image)
Lopolight NL201-011 15M 3nm 225° Masthead, Vertical Mount with 15m Cable
Lopolight NL201-011 15M 3nm 225° Masthead, Vertical Mount with 15m Cable (lopolight.com image)

Lopolight

Lopolight NL201-011 15M 3nm 225° Masthead, Vertical Mount with 15m Cable

£735.94
Tax included. Shipping calculated at checkout.
NL201-011 15M
Lopolight 3nm 225° Masthead, Vertical Mount with 15m Cable (NL201-011 15M): LED navigation light, 3 nm visibility, 10-32 VDC, IP68.

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Lopolight 3nm 225° Masthead, Vertical Mount with 15m Cable (part number NL201-011 15M) is an LED navigation light from Lopolight of Denmark.

Key points: 3 nm visibility, 225° light arc. It operates from 10-32 VDC and draws 3 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, vertical mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: 12-20M.

Supplied with: 1 Navigation light, 2 Mounting screws (M6 * 8 mm), Installation guide.

PRODUCT DETAILS

  • 3 nm visibility (>15cd)

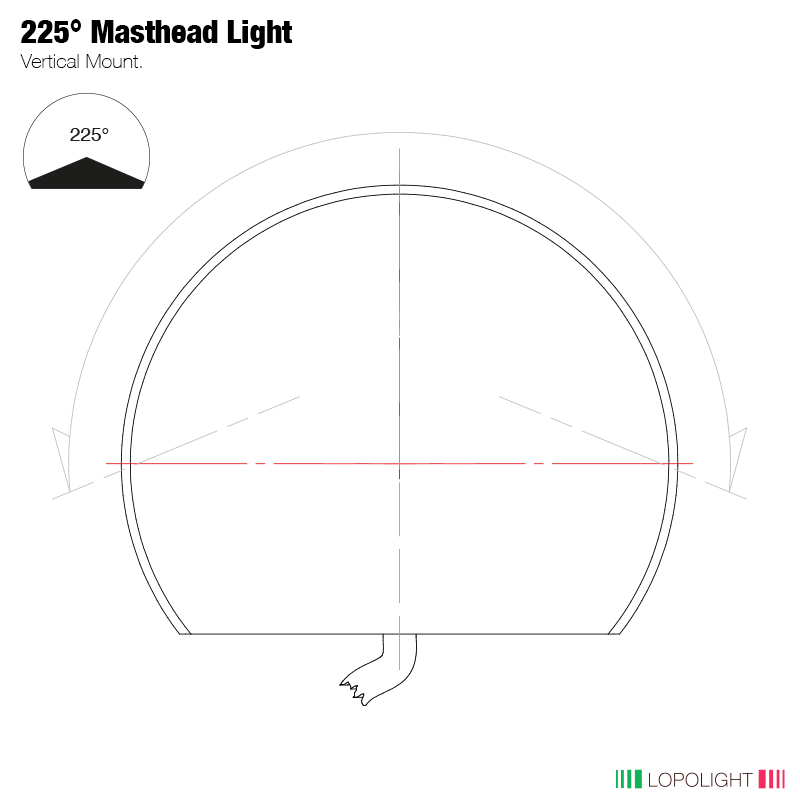

  • 225° light arc
  • 10-32 VDC operating voltage
  • IP68 protection
  • Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
  • Vertical mounting
  • Connection: 15m cable
  • 1 Navigation light, 2 Mounting screws (M6 * 8 mm), Installation guide

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Performance

Visibility3nm
Intensity>15cd
Light arc225°

Electrical

Operating voltage10-32VDC
Power draw (W)3
Current consumption @ 12 VDC232 mA
Current consumption @ 24 VDC127 mA
Minimum feed wire gauge0.5mm2 AWG22

Mechanical

MountingVertical
Dimensions74,55 x 28 x 73,16 mm
Connection15m cable
MaterialsSilver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Weight1.059 kg

Environmental

IP ratingIP68
Operating temperature-25°C to 55°C

Approvals

Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR

General

Vessel size (Lopolight range)12-20M
Lopolight part number201-011 15M
IMP part numberNL201-011 15M
UPC879343012540
EAN5704438012547

No videos available for this product.

What is the visibility range of the Lopolight NL201-011 15M?
Lopolight specifies 3 nautical mile(s) visibility with intensity >15cd for this part.
What supply voltage does the Lopolight NL201-011 15M need?
Lopolight lists an operating voltage of 10-32 VDC with a power draw of 3 W.
Which approvals does the Lopolight NL201-011 15M carry?
Lopolight lists approvals to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR. Declarations of conformity and certificates are published on lopolight.com under Support.
