Lopolight NL201-011KL-FB 3nm Masthead, Silver Anodized with FB Base Lopolight NL201-011KL-FB 3nm Masthead, Silver Anodized with FB Base
Lopolight NL201-011KL-FB 3nm Masthead, Silver Anodized with FB Base (lopolight.com image) Lopolight NL201-011KL-FB 3nm Masthead, Silver Anodized with FB Base (lopolight.com image)
Lopolight NL201-011KL-FB 3nm Masthead, Silver Anodized with FB Base
Lopolight NL201-011KL-FB 3nm Masthead, Silver Anodized with FB Base (lopolight.com image)

Lopolight

Lopolight NL201-011KL-FB 3nm Masthead, Silver Anodized with FB Base

£644.76
Tax included. Shipping calculated at checkout.
NL201-011KL-FB
Lopolight 3nm Masthead, Silver Anodized with FB Base (NL201-011KL-FB): LED navigation light, 3 nm visibility, 10-32 VDC, IP68.

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

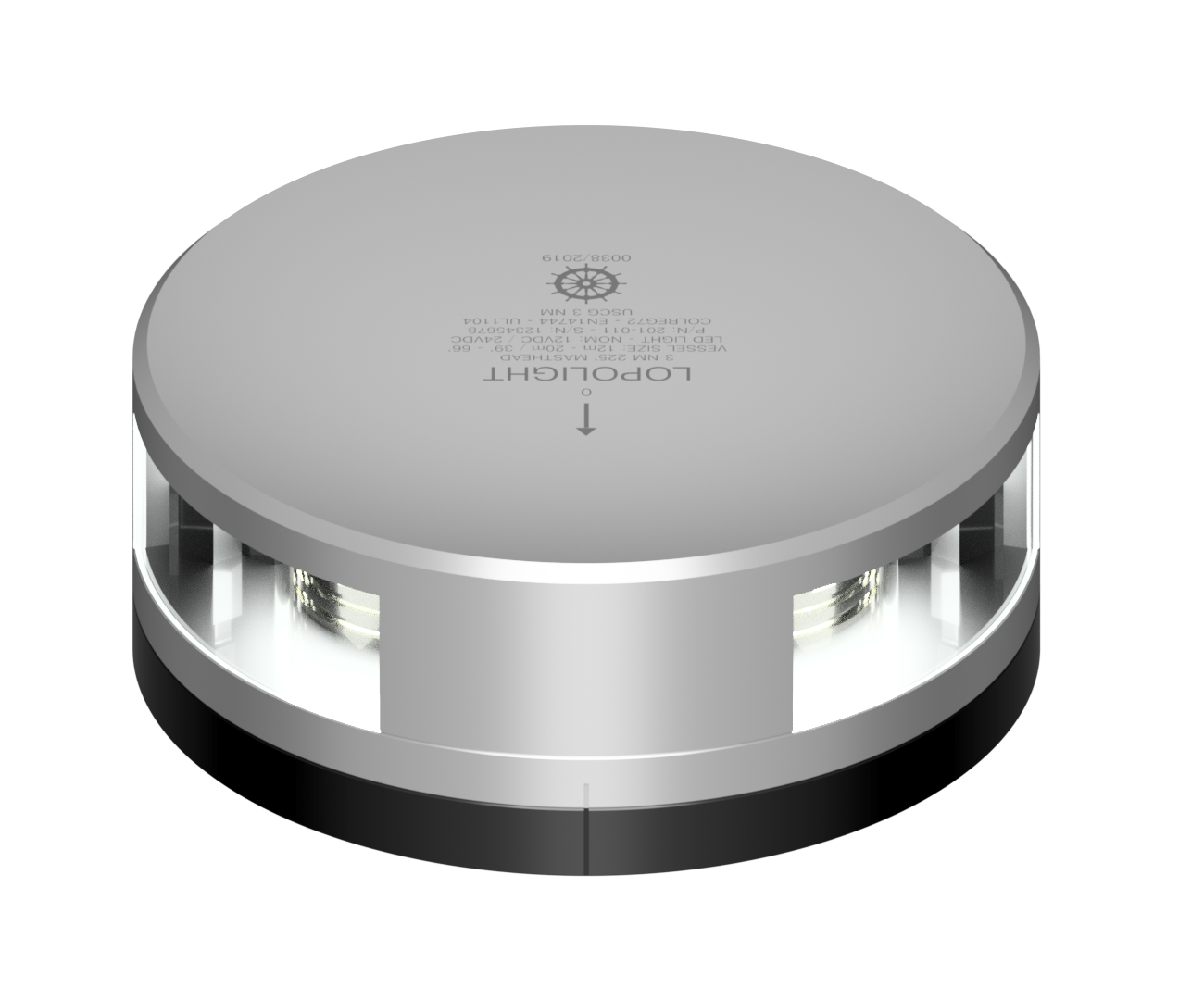

The Lopolight 3nm Masthead, Silver Anodized with FB Base (part number NL201-011KL-FB) is an LED navigation light from Lopolight of Denmark.

Key points: 3 nm visibility. It operates from 10-32 VDC and draws 2 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, horizontal mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: 12-20M.

Supplied with: 1 Navigation light, precabled with 0.75 meter shielded marine grade cable, Installation guide.

PRODUCT DETAILS

  • 3 nm visibility
  • 10-32 VDC operating voltage
  • IP68 protection
  • Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
  • Horizontal mounting
  • Connection: 0.7m cable
  • 1 Navigation light, precabled with 0.75 meter shielded marine grade cable, Installation guide

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Performance

Visibility3nm

Electrical

Operating voltage10-32VDC
Power draw (W)2
Current consumption @ 12 VDC137 mA
Current consumption @ 24 VDC80 mA
Minimum feed wire gauge0.5mm2 AWG22

Mechanical

MountingHorizontal
DimensionsØ92,5mm x 36mm
Connection0.7m cable
MaterialsSilver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Housing finishSilver anodized
Weight0.48 kg

Environmental

IP ratingIP68
Operating temperature-25°C to 55°C

Approvals

Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR

General

Vessel size (Lopolight range)12-20M
Lopolight part number201-011KL-FB
IMP part numberNL201-011KL-FB
UPC879343043537
EAN5704438043404

No videos available for this product.

What is the visibility range of the Lopolight NL201-011KL-FB?
Lopolight specifies 3 nautical mile(s) visibility for this part.
What supply voltage does the Lopolight NL201-011KL-FB need?
Lopolight lists an operating voltage of 10-32 VDC with a power draw of 2 W.
Which approvals does the Lopolight NL201-011KL-FB carry?
Lopolight lists approvals to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR. Declarations of conformity and certificates are published on lopolight.com under Support.
