Lopolight

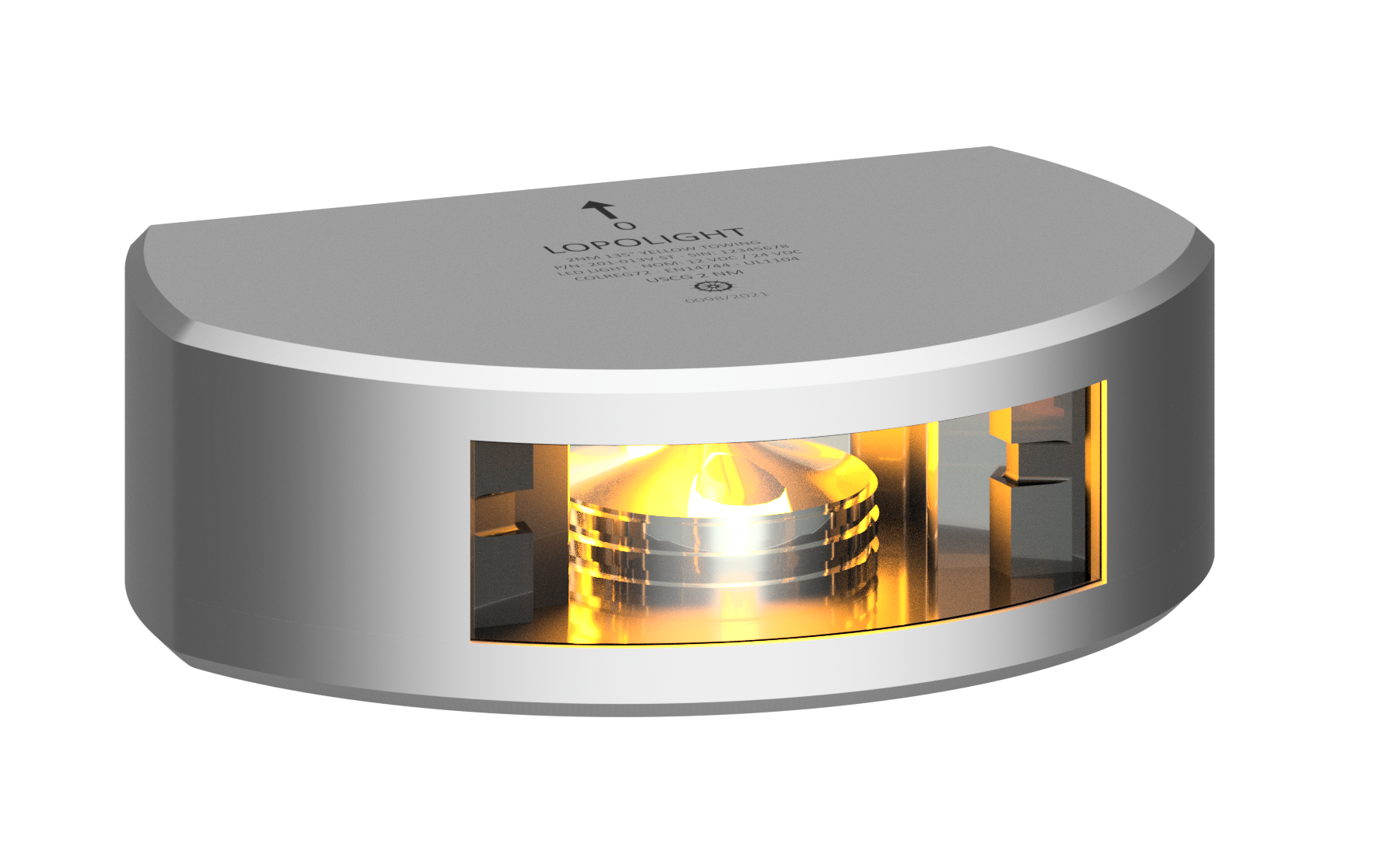

Lopolight NL201-013V 2nm Stern Towing, Vertical Mount with 2.5m Cable

£510.89
Tax included. Shipping calculated at checkout.
NL201-013V
Lopolight 2nm Stern Towing, Vertical Mount with 2.5m Cable (NL201-013V): LED navigation light, 2 nm visibility, 10-32 VDC, IP68.

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Lopolight 2nm Stern Towing, Vertical Mount with 2.5m Cable (part number NL201-013V) is an LED navigation light from Lopolight of Denmark.

Key points: 2 nm visibility. It operates from 10-32 VDC and draws 1.7 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, vertical mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: Under 12M, 12-20M, 20-50M.

Supplied with: 1 Navigation light, precabled with 2.5 meter shielded marine grade cable, 2 Mounting screws (M6 * 8 mm), Installation guide.

PRODUCT DETAILS

  • 2 nm visibility (>5.4cd)
  • 10-32 VDC operating voltage
  • IP68 protection
  • Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
  • Vertical mounting
  • Connection: 2.5m cable
  • 1 Navigation light, precabled with 2.5 meter shielded marine grade cable, 2 Mounting screws (M6 * 8 mm), Installation guide

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Performance

Visibility2nm
Intensity>5.4cd

Electrical

Operating voltage10-32VDC
Power draw (W)1.7
Current consumption @ 12 VDC124 mA
Current consumption @ 24 VDC71 mA
Minimum feed wire gauge0.5mm2 AWG22

Mechanical

MountingVertical
Dimensions86,2 x 28 x 57,75 mm
Connection2.5m cable
MaterialsSilver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Weight0.41 kg

Environmental

IP ratingIP68
Operating temperature-25°C to 55°C

Approvals

Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR

General

Vessel size (Lopolight range)Under 12M,12-20M,20-50M
Lopolight part number201-013V
IMP part numberNL201-013V
UPC879343010706
EAN5704438010703

No videos available for this product.

What is the visibility range of the Lopolight NL201-013V?
Lopolight specifies 2 nautical mile(s) visibility with intensity >5.4cd for this part.
What supply voltage does the Lopolight NL201-013V need?
Lopolight lists an operating voltage of 10-32 VDC with a power draw of 1.7 W.
Which approvals does the Lopolight NL201-013V carry?
Lopolight lists approvals to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR. Declarations of conformity and certificates are published on lopolight.com under Support.
