Lopolight NL201-014-B-CSCD 2nm 360° Red,black with Conn & Alu-base CSCD
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Lopolight 2nm 360° Red,black with Conn & Alu-base CSCD (part number NL201-014-B-CSCD) is an LED navigation light from Lopolight of Denmark.
Key points: 2 nm visibility, 360° light arc, red light. It operates from 10-32 VDC. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, horizontal mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: Under 12M, 12-20M, 20-50M.
Supplied with: 1 Navigation light, Installation guide.
PRODUCT DETAILS
- 2 nm visibility (>5.4cd)

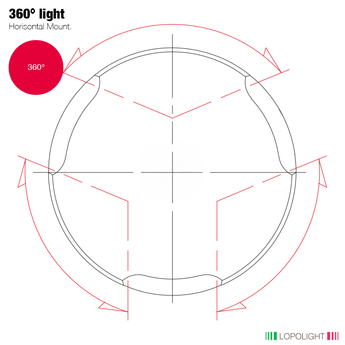

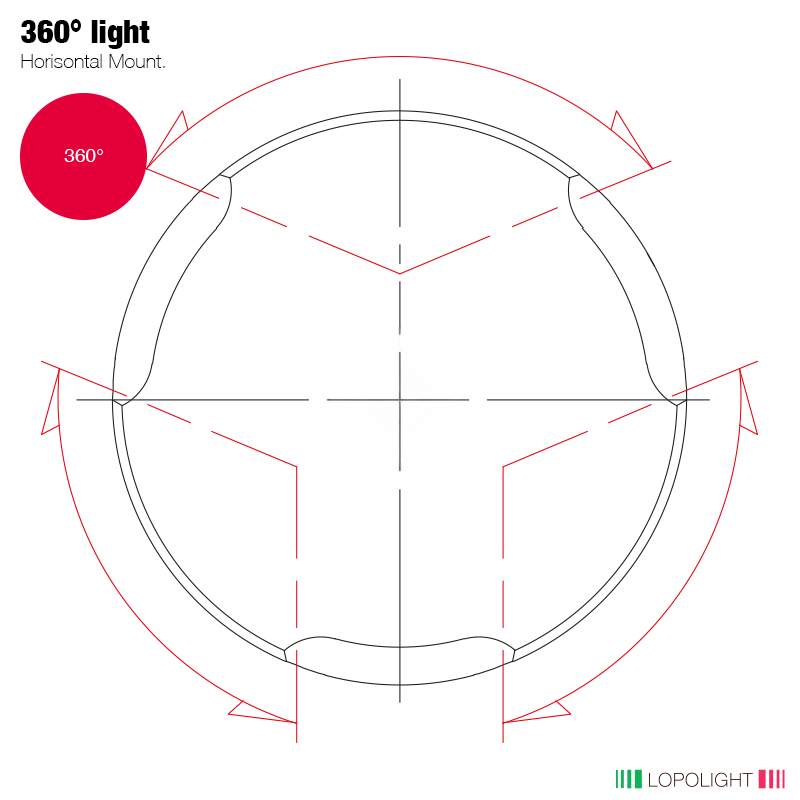

- 360° light arc
- 10-32 VDC operating voltage
- IP68 protection
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Horizontal mounting
- Connection: Plug connector
- 1 Navigation light, Installation guide
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Performance
| Visibility | 2nm |
| Intensity | >5.4cd |
| Light arc | 360° |
| Light colour | Red |
Electrical
| Operating voltage | 10-32VDC |
| Current consumption @ 12 VDC | 150 mA |
| Current consumption @ 24 VDC | 85 mA |
Mechanical
| Mounting | Horizontal |
| Dimensions | Ø92,5mm x 74,5mm |
| Connection | Plug connector |
| Materials | Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Housing finish | Black anodized |
Environmental
| IP rating | IP68 |
| Operating temperature | -25°C to 55°C |
Approvals
| Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
General
| Vessel size (Lopolight range) | Under 12M,12-20M,20-50M |
| Lopolight part number | 201-014-B-CSCD |
| IMP part number | NL201-014-B-CSCD |
| UPC | 879343046439 |
| EAN | 5704438046306 |
