Lopolight

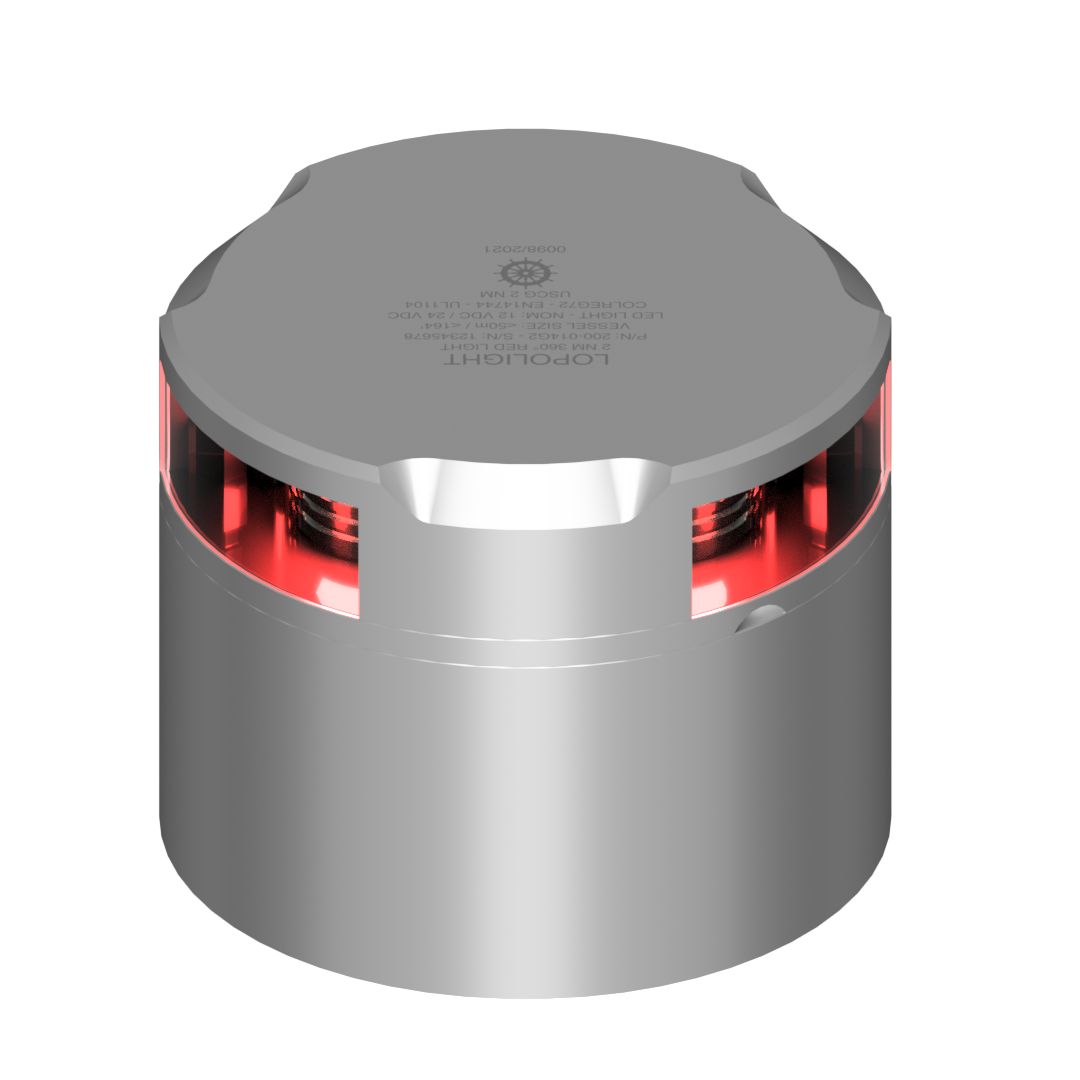

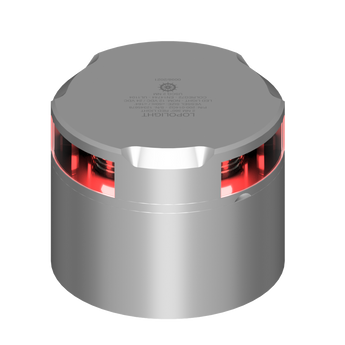

Lopolight NL201-014-CD 2nm 360° Red, Silver with Connector & Alu-base (CD)

£687.50
Tax included. Shipping calculated at checkout.
NL201-014-CD
Lopolight 2nm 360° Red, Silver with Connector & Alu-base (CD) (NL201-014-CD): LED navigation light, 2 nm visibility, 10-32 VDC, IP68.

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Lopolight 2nm 360° Red, Silver with Connector & Alu-base (CD) (part number NL201-014-CD) is an LED navigation light from Lopolight of Denmark.

Key points: 2 nm visibility, 360° light arc, red light. It operates from 10-32 VDC. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, horizontal mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: Under 12M, 12-20M, 20-50M.

Supplied with: 1 Navigation light.

PRODUCT DETAILS

  • 2 nm visibility (>5.4cd)
  • 360° light arc
  • 10-32 VDC operating voltage
  • IP68 protection
  • Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
  • Horizontal mounting
  • Connection: Plug connector
  • 1 Navigation light

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Performance

Visibility2nm
Visibility2nm
Intensity>5.4cd
Intensity>5.4cd

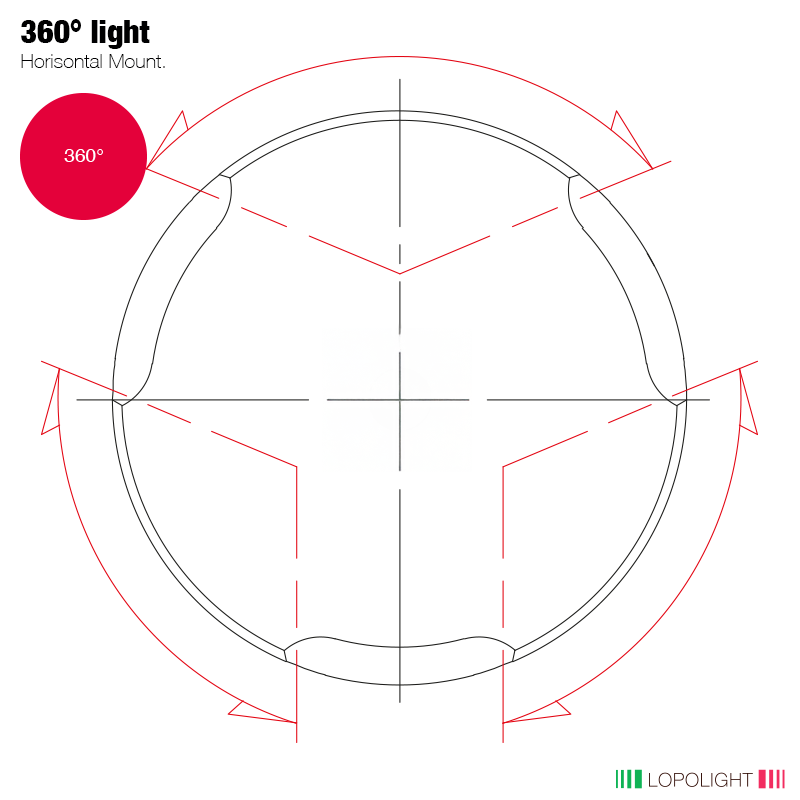

Light arc360°
Light arc360°
Light colourRed
Light colourRed

Electrical

Operating voltage10-32VDC
Operating voltage10-32VDC
Current consumption @ 12 VDC150 mA
Current consumption @ 12 VDC150 mA
Current consumption @ 24 VDC85 mA
Current consumption @ 24 VDC85 mA

Mechanical

MountingHorizontal
MountingHorizontal
DimensionsØ92,5mm x 74,5mm
DimensionsØ92,5mm x 74,5mm
ConnectionPlug connector
ConnectionPlug connector
MaterialsSilver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
MaterialsSilver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Housing finishSilver anodized
Housing finishSilver anodized

Environmental

IP ratingIP68
IP ratingIP68
Operating temperature-25°C to 55°C
Operating temperature-25°C to 55°C

Approvals

Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR

General

Vessel size (Lopolight range)Under 12M,12-20M,20-50M
Vessel size (Lopolight range)Under 12M,12-20M,20-50M
Lopolight part number201-014-CD
Lopolight part number201-014-CD
IMP part numberNL201-014-CD
IMP part numberNL201-014-CD
UPC879343044817
UPC879343044817
EAN5704438044685
EAN5704438044685

No videos available for this product.

What is the visibility range of the Lopolight NL201-014-CD?
Lopolight specifies 2 nautical mile(s) visibility with intensity >5.4cd for this part.
What supply voltage does the Lopolight NL201-014-CD need?
Lopolight lists an operating voltage of 10-32 VDC.
Which approvals does the Lopolight NL201-014-CD carry?
Lopolight lists approvals to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR. Declarations of conformity and certificates are published on lopolight.com under Support.
