Lopolight
Lopolight NL201-014-FB 15M 2nm 360° Red, Silver with FB Base
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

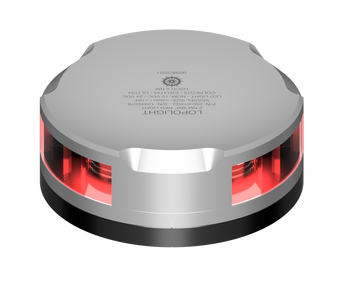

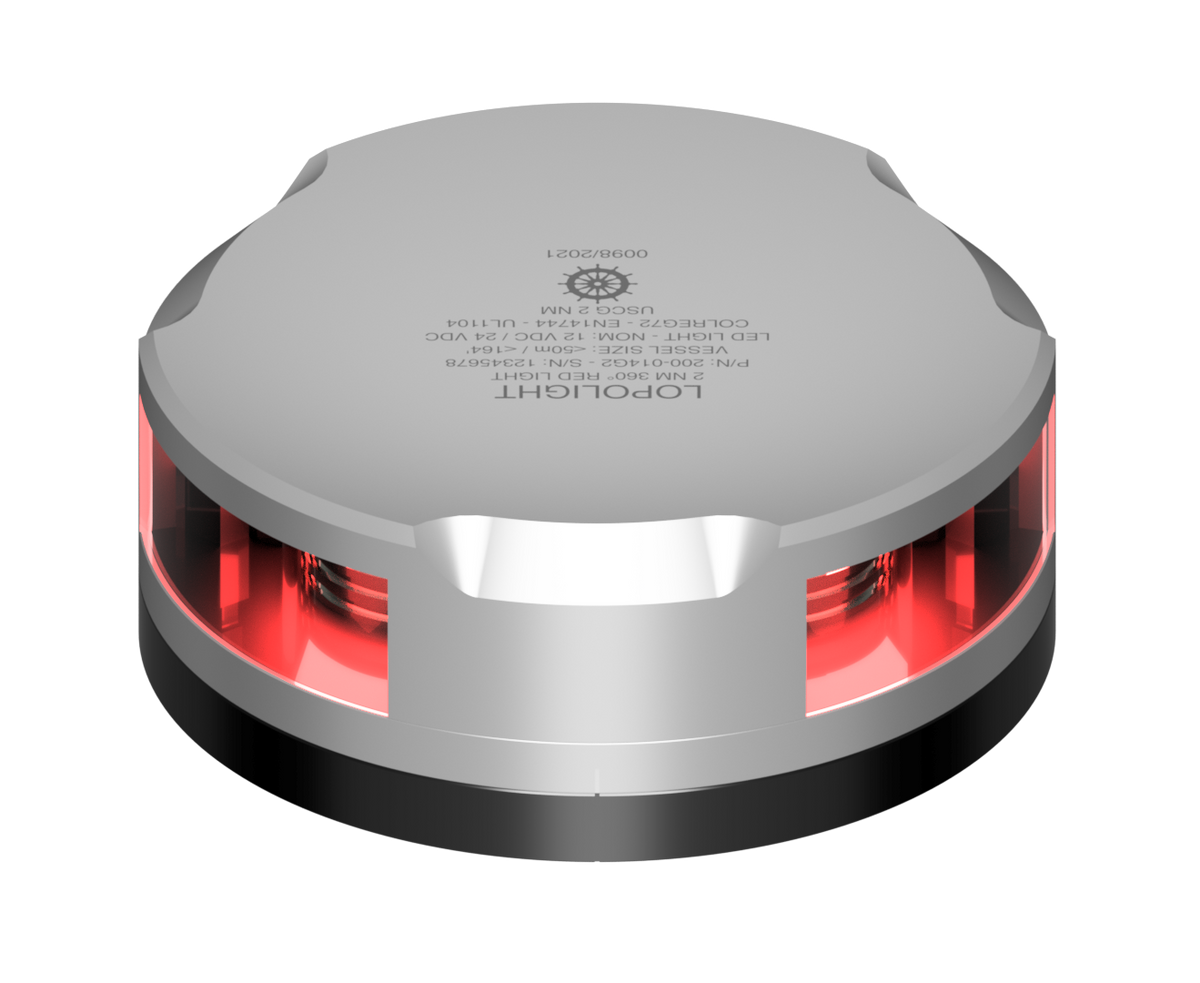

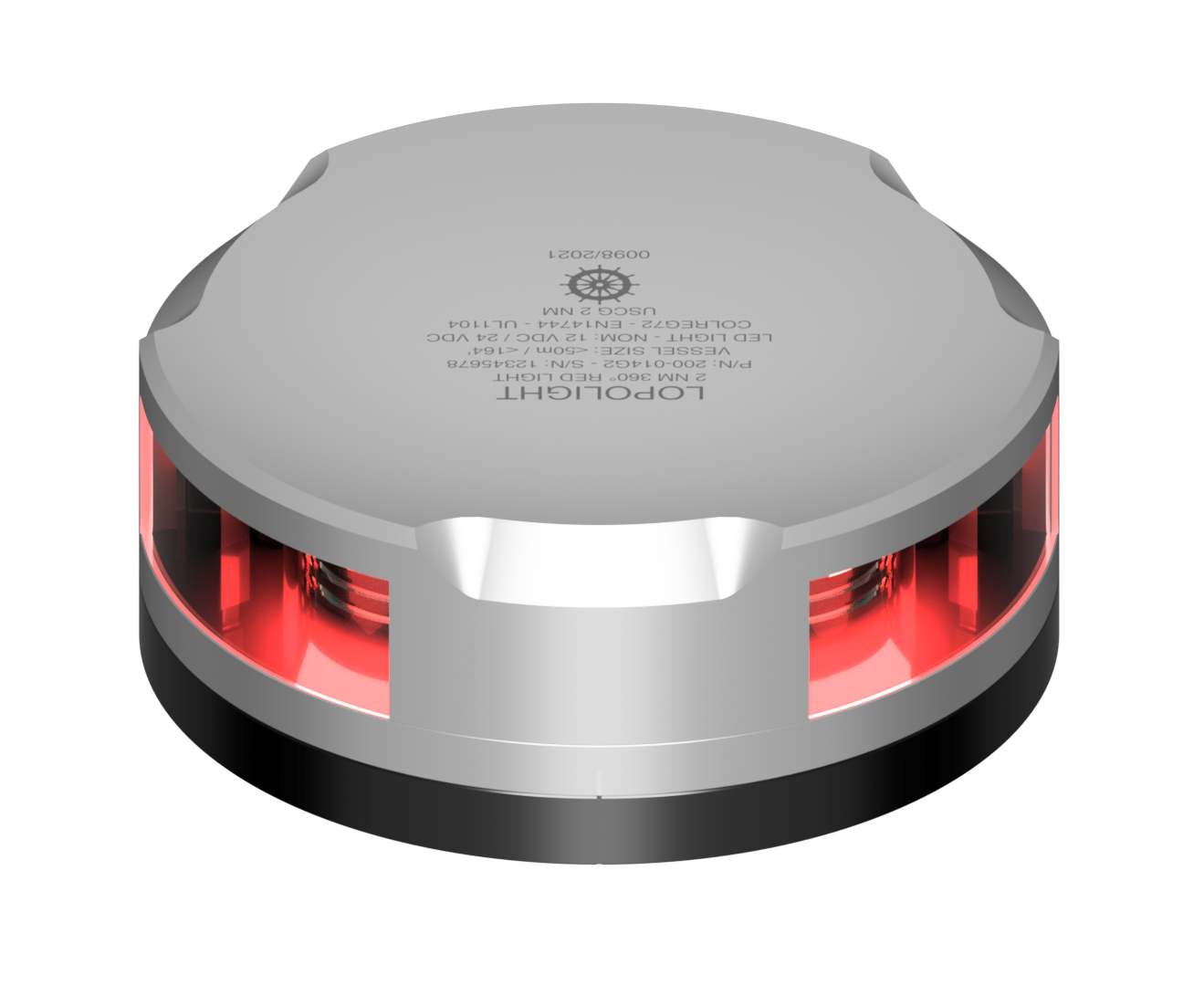

The Lopolight 2nm 360° Red, Silver with FB Base (part number NL201-014-FB 15M) is an LED navigation light from Lopolight of Denmark.
Key points: 2 nm visibility, 360° light arc, red light. It operates from 10-32 VDC and draws 2.1 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, horizontal mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: Under 12M, 12-20M, 20-50M.
Supplied with: 1 Navigation light, Installation guide.
PRODUCT DETAILS
- 2 nm visibility

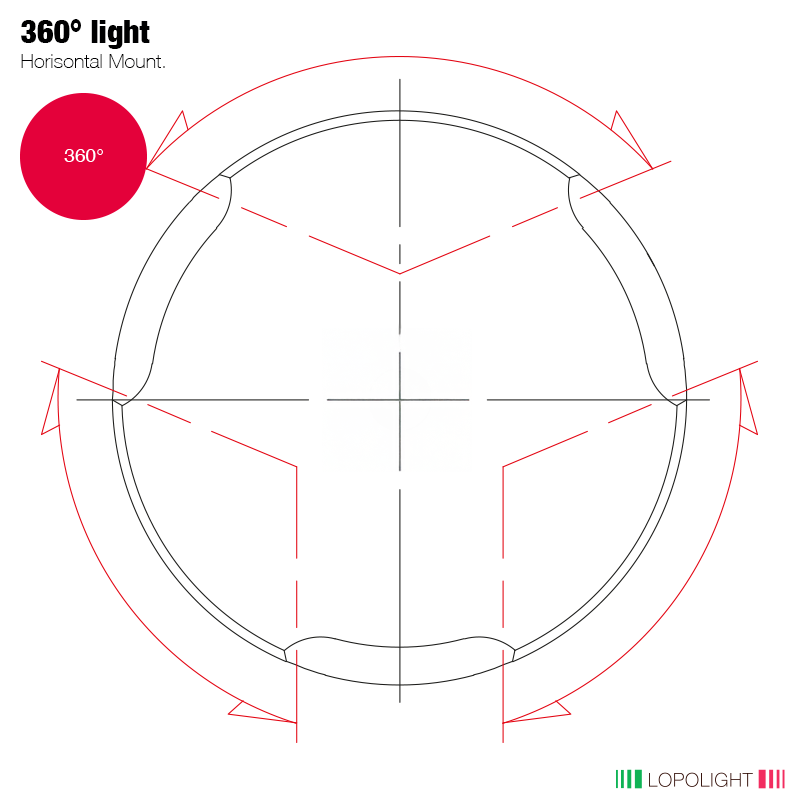

- 360° light arc
- 10-32 VDC operating voltage
- IP68 protection
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Horizontal mounting
- Connection: 15m cable
- 1 Navigation light, Installation guide
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Performance
| Visibility | 2nm |
| Visibility | 2nm |
| Light arc | 360° |
| Light arc | 360° |
| Light colour | Red |
| Light colour | Red |
Electrical
| Operating voltage | 10-32VDC |
| Operating voltage | 10-32VDC |
| Power draw (W) | 2.1 |
| Power draw (W) | 2.1 |
| Current consumption @ 12 VDC | 150 mA |
| Current consumption @ 12 VDC | 150 mA |
| Current consumption @ 24 VDC | 85 mA |
| Current consumption @ 24 VDC | 85 mA |
| Minimum feed wire gauge | 0.5mm2 AWG22 |
| Minimum feed wire gauge | 0.5mm2 AWG22 |
Mechanical
| Mounting | Horizontal |
| Mounting | Horizontal |
| Dimensions | Ø92,5mm x 36mm |
| Dimensions | Ø92,5mm x 36mm |
| Connection | 15m cable |
| Connection | 15m cable |
| Housing finish | Silver anodized |
| Housing finish | Silver anodized |
Environmental
| IP rating | IP68 |
| IP rating | IP68 |
| Operating temperature | -25°C to 55°C |
| Operating temperature | -25°C to 55°C |
Approvals
| Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
| Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
General
| Vessel size (Lopolight range) | Under 12M,12-20M,20-50M |
| Vessel size (Lopolight range) | Under 12M,12-20M,20-50M |
| Lopolight part number | 201-014-FB 15M |
| Lopolight part number | 201-014-FB 15M |
| IMP part number | NL201-014-FB 15M |
| IMP part number | NL201-014-FB 15M |
| UPC | 879343043117 |
| UPC | 879343043117 |
| EAN | 5704438042988 |
| EAN | 5704438042988 |
