Lopolight NL201-014-FB 2nm 360° Red, Silver Anodized with FB Base Lopolight NL201-014-FB 2nm 360° Red, Silver Anodized with FB Base
Lopolight NL201-014-FB 2nm 360° Red, Silver Anodized with FB Base (lopolight.com image) Lopolight NL201-014-FB 2nm 360° Red, Silver Anodized with FB Base (lopolight.com image)
Lopolight NL201-014-FB 2nm 360° Red, Silver Anodized with FB Base
Lopolight NL201-014-FB 2nm 360° Red, Silver Anodized with FB Base (lopolight.com image)

Lopolight

Lopolight NL201-014-FB 2nm 360° Red, Silver Anodized with FB Base

£512.50
Tax included. Shipping calculated at checkout.
NL201-014-FB
Lopolight 2nm 360° Red, Silver Anodized with FB Base (NL201-014-FB): LED navigation light, 2 nm visibility, 10-32 VDC, IP68.

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

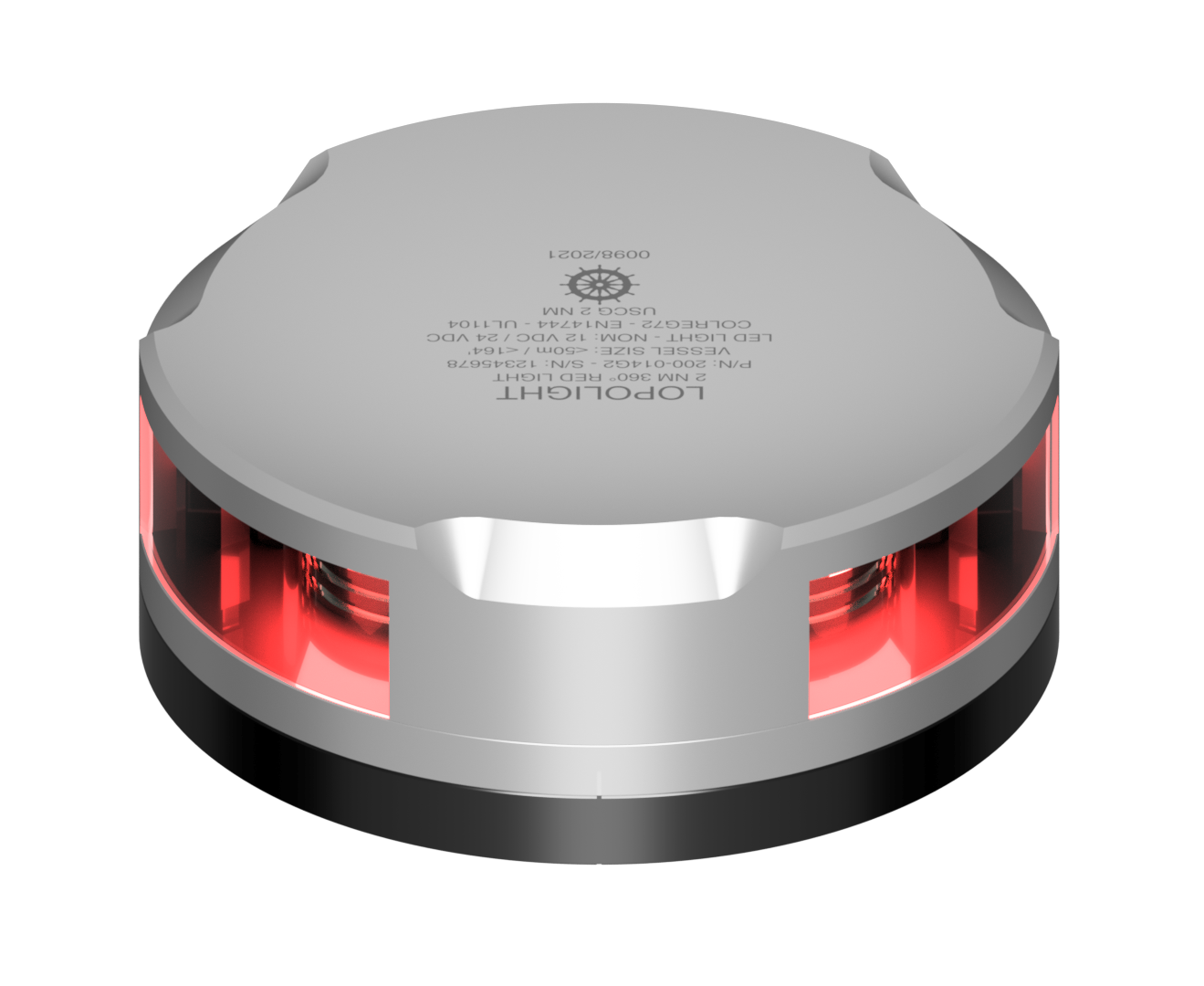

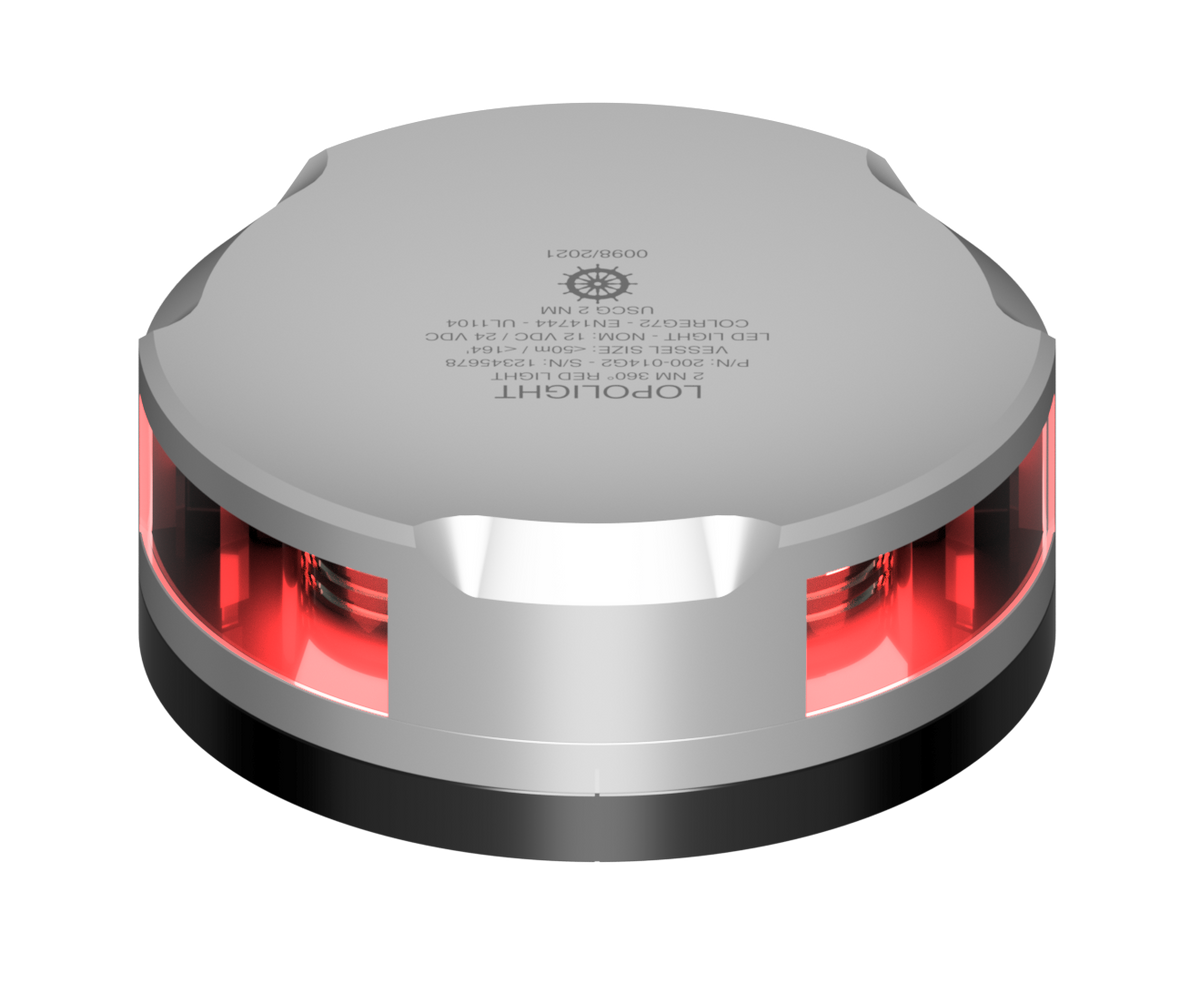

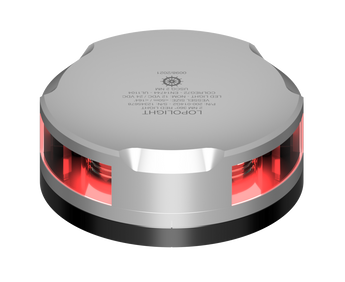

The Lopolight 2nm 360° Red, Silver Anodized with FB Base (part number NL201-014-FB) is an LED navigation light from Lopolight of Denmark.

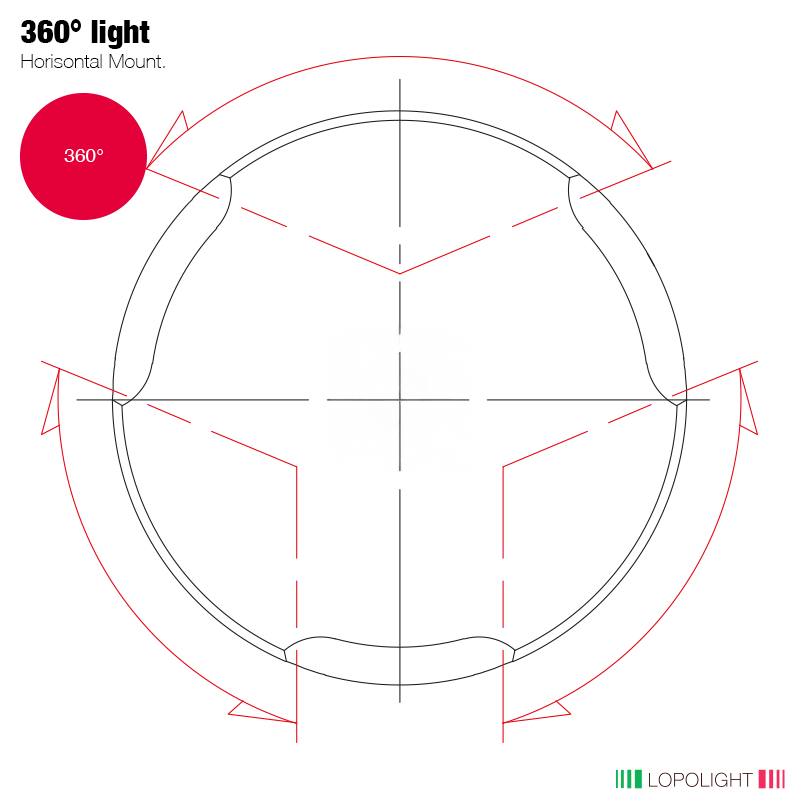

Key points: 2 nm visibility, 360° light arc, red light. It operates from 10-32 VDC and draws 2.1 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, horizontal mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: Under 12M, 12-20M, 20-50M.

Supplied with: 1 Navigation light, precabled with 0.75 meter shielded marine grade cable, Installation guide.

PRODUCT DETAILS

  • 2 nm visibility
  • 360° light arc
  • 10-32 VDC operating voltage
  • IP68 protection
  • Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
  • Horizontal mounting
  • Connection: 0.7m cable
  • 1 Navigation light, precabled with 0.75 meter shielded marine grade cable, Installation guide

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Performance

Visibility2nm
Light arc360°
Light colourRed

Electrical

Operating voltage10-32VDC
Power draw (W)2.1
Current consumption @ 12 VDC150 mA
Current consumption @ 24 VDC85 mA
Minimum feed wire gauge0.5mm2 AWG22

Mechanical

MountingHorizontal
DimensionsØ92,5mm x 36mm
Connection0.7m cable
MaterialsSilver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Housing finishSilver anodized
Weight0.45 kg

Environmental

IP ratingIP68
Operating temperature-25°C to 55°C

Approvals

Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR

General

Vessel size (Lopolight range)Under 12M,12-20M,20-50M
Lopolight part number201-014-FB
IMP part numberNL201-014-FB
UPC879343043100
EAN5704438042971

No videos available for this product.

What is the visibility range of the Lopolight NL201-014-FB?
Lopolight specifies 2 nautical mile(s) visibility for this part.
What supply voltage does the Lopolight NL201-014-FB need?
Lopolight lists an operating voltage of 10-32 VDC with a power draw of 2.1 W.
Which approvals does the Lopolight NL201-014-FB carry?
Lopolight lists approvals to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR. Declarations of conformity and certificates are published on lopolight.com under Support.
