Lopolight

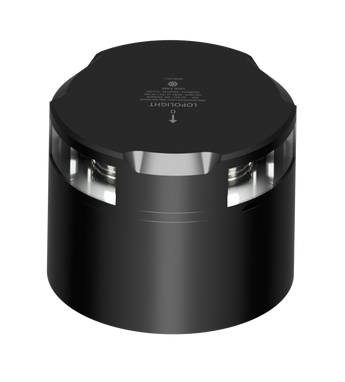

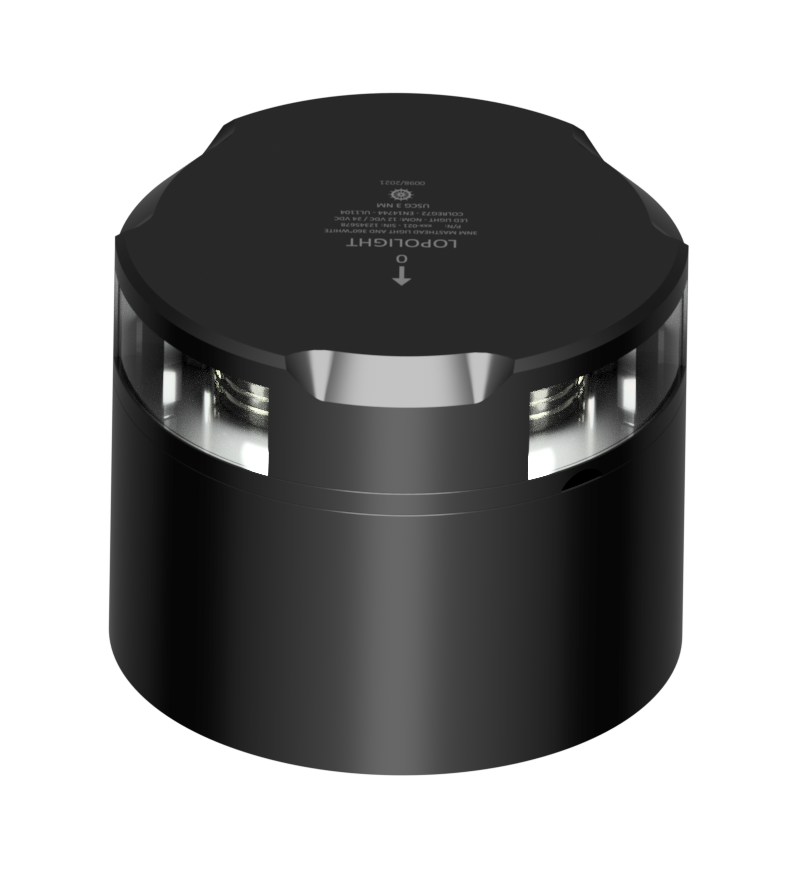

Lopolight NL201-021-B-CD 3nm Masthead/360° White, Black with Conn &Alu-base CD
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Lopolight 3nm Masthead/360° White, Black with Conn &Alu-base CD (part number NL201-021-B-CD) is an LED navigation light from Lopolight of Denmark.
Key points: 3 nm visibility, 360° light arc, white light. It operates from 10-32 VDC. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, horizontal mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: 12-20M.
Supplied with: 1 Navigation light.
PRODUCT DETAILS
- 3 nm visibility (>15cd)
- 360° light arc
- 10-32 VDC operating voltage
- IP68 protection
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Horizontal mounting
- Connection: Plug connector
- 1 Navigation light
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Performance
| Visibility | 3nm |
| Intensity | >15cd |

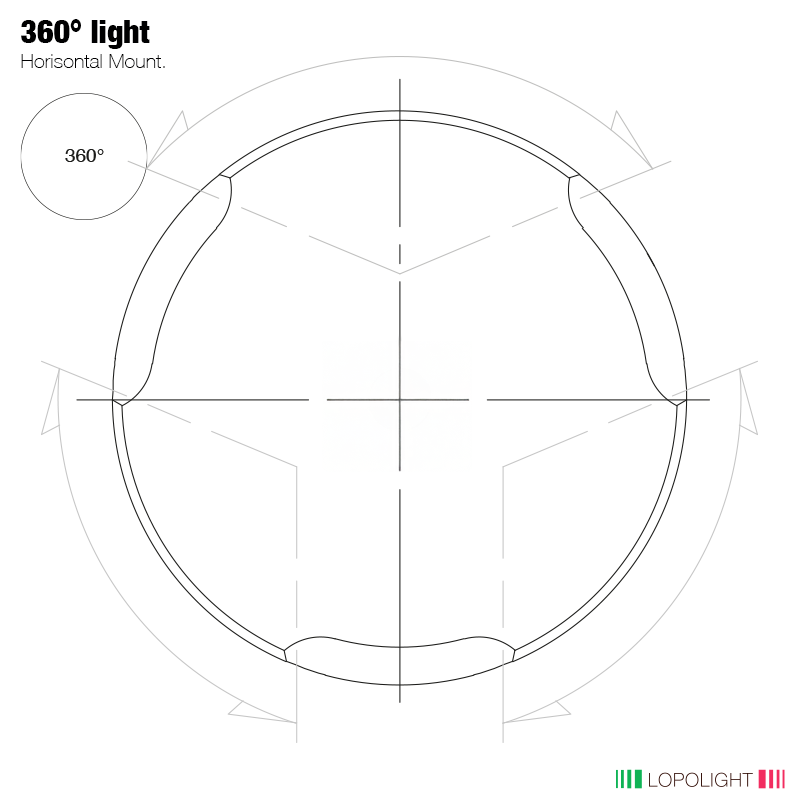

| Light arc | 360° |
| Light colour | White |
Electrical
| Operating voltage | 10-32VDC |
| Current consumption @ 12 VDC | 245 mA |
| Current consumption @ 24 VDC | 148 mA |
Mechanical
| Mounting | Horizontal |
| Dimensions | Ø92,5mm x 74,5mm |
| Connection | Plug connector |
| Materials | Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Housing finish | Black anodized |
Environmental
| IP rating | IP68 |
| Operating temperature | -25°C to 55°C |
Approvals
| Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
General
| Vessel size (Lopolight range) | 12-20M |
| Lopolight part number | 201-021-B-CD |
| IMP part number | NL201-021-B-CD |
| UPC | 879343045029 |
| EAN | 5704438044890 |
No videos available for this product.
