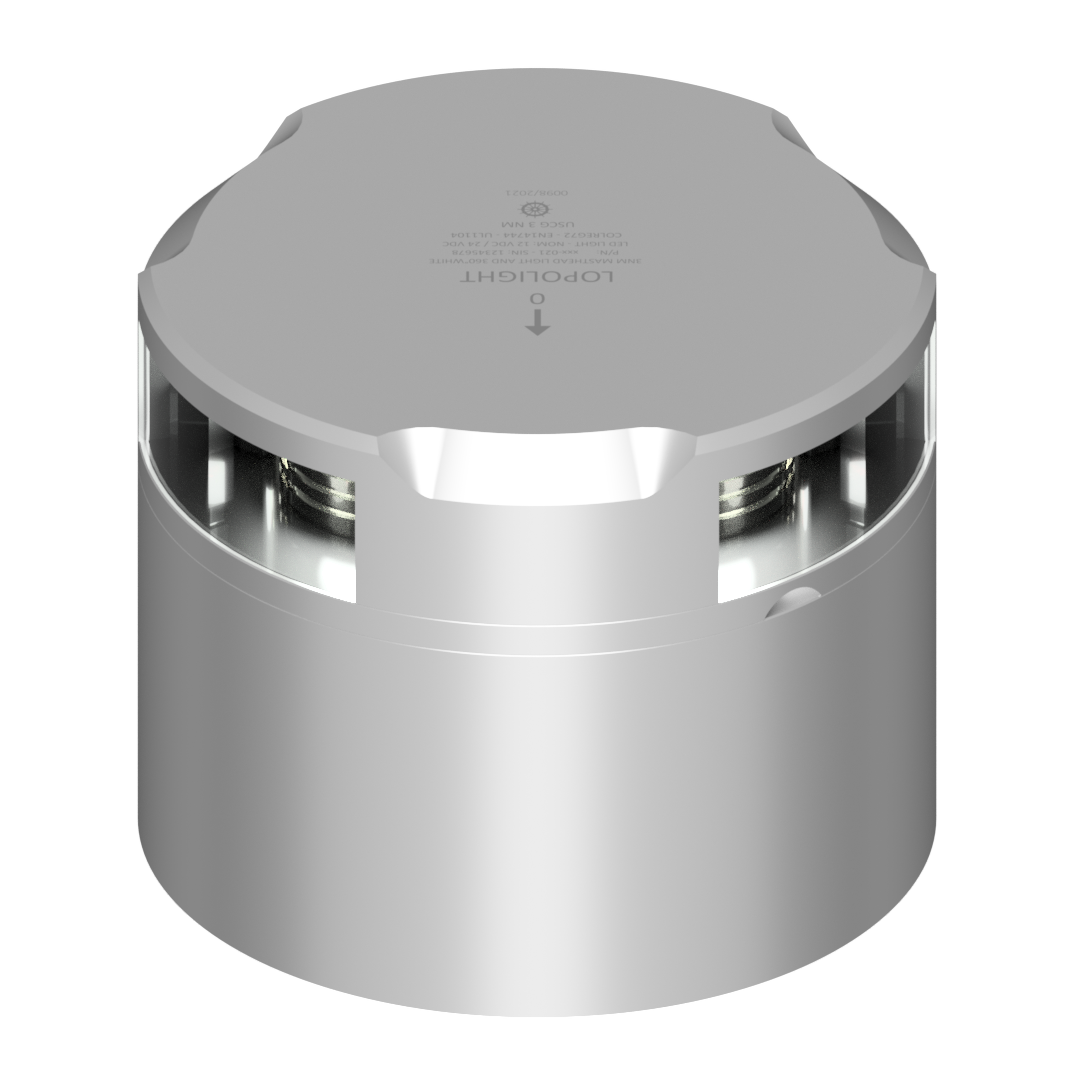

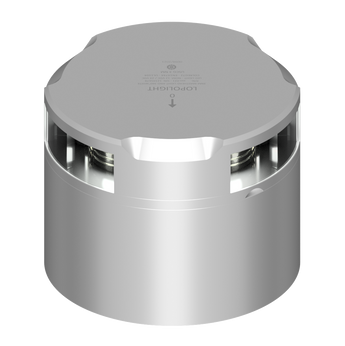

Lopolight NL201-021-B-CSCD 3nm Masthead/360° White,silver with Conn&Alu-baseCSCD
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Lopolight 3nm Masthead/360° White,silver with Conn&Alu-baseCSCD (part number NL201-021-B-CSCD) is an LED navigation light from Lopolight of Denmark.
Key points: 3 nm visibility, 360° light arc, white light. It operates from 10-32 VDC. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, horizontal mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: 12-20M.
Supplied with: 1 Navigation light, Installation guide.
PRODUCT DETAILS
- 3 nm visibility (>15cd)
- 360° light arc
- 10-32 VDC operating voltage
- IP68 protection
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Horizontal mounting
- Connection: Plug connector
- 1 Navigation light, Installation guide
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Performance
| Visibility | 3nm |
| Visibility | 3nm |
| Intensity | >15cd |
| Intensity | >15cd |
| Light arc | 360° |
| Light arc | 360° |
| Light colour | White |
| Light colour | White |
Electrical
| Operating voltage | 10-32VDC |
| Operating voltage | 10-32VDC |
| Current consumption @ 12 VDC | 245 mA |
| Current consumption @ 12 VDC | 245 mA |
| Current consumption @ 24 VDC | 148 mA |
| Current consumption @ 24 VDC | 148 mA |
Mechanical
| Mounting | Horizontal |
| Mounting | Horizontal |
| Dimensions | Ø92,5mm x 74,5mm |
| Dimensions | Ø92,5mm x 74,5mm |
| Connection | Plug connector |
| Connection | Plug connector |
| Materials | Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Materials | Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Housing finish | Silver anodized |
| Housing finish | Silver anodized |
Environmental
| IP rating | IP68 |
| IP rating | IP68 |
| Operating temperature | -25°C to 55°C |
| Operating temperature | -25°C to 55°C |
Approvals
| Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
| Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
General
| Vessel size (Lopolight range) | 12-20M |
| Vessel size (Lopolight range) | 12-20M |
| Lopolight part number | 201-021-B-CSCD |
| Lopolight part number | 201-021-B-CSCD |
| IMP part number | NL201-021-B-CSCD |
| IMP part number | NL201-021-B-CSCD |
| UPC | 879343046590 |
| UPC | 879343046590 |
| EAN | 5704438046467 |
| EAN | 5704438046467 |
