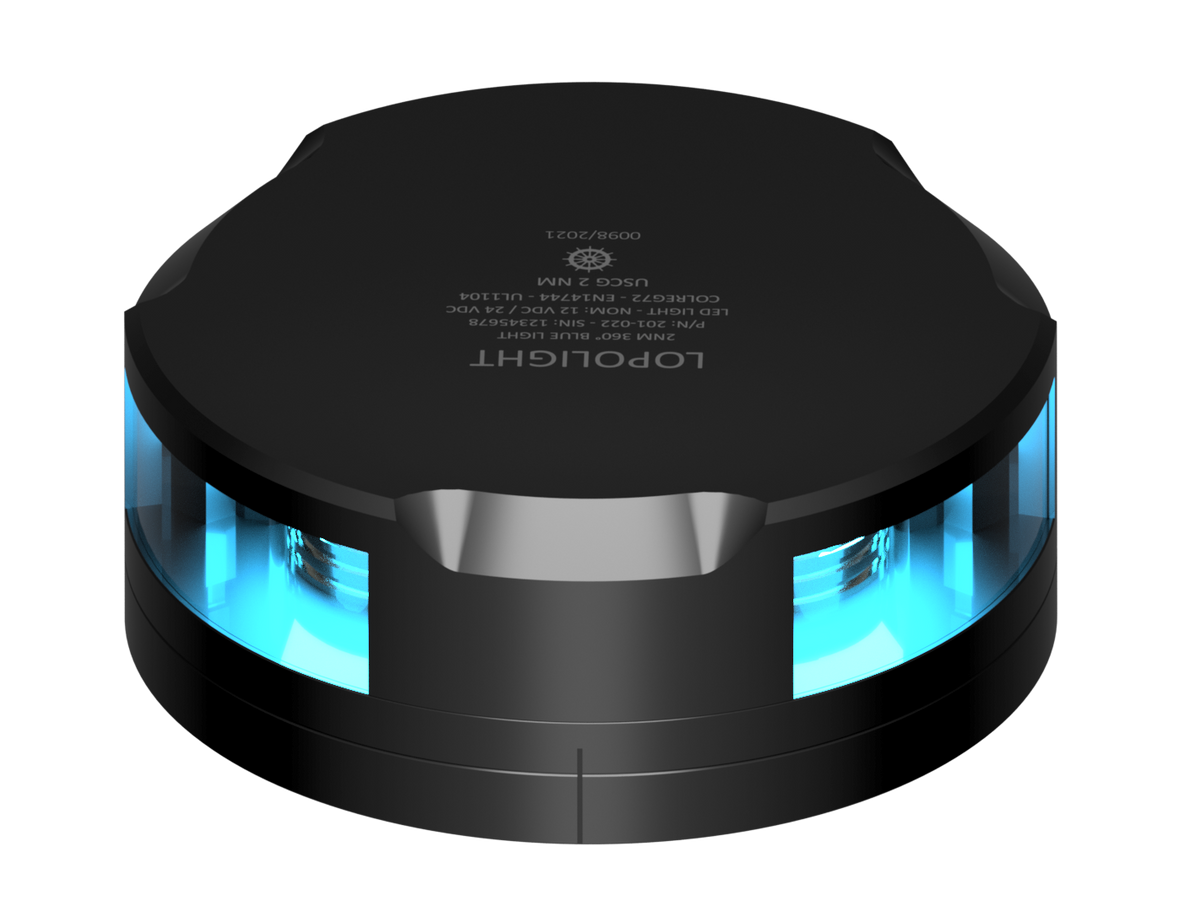

Lopolight NL201-022-FB-B 2nm 360° Blue Fuelling, Black with FB Base Lopolight NL201-022-FB-B 2nm 360° Blue Fuelling, Black with FB Base
Lopolight NL201-022-FB-B 2nm 360° Blue Fuelling, Black with FB Base (lopolight.com image) Lopolight NL201-022-FB-B 2nm 360° Blue Fuelling, Black with FB Base (lopolight.com image)
Lopolight NL201-022-FB-B 2nm 360° Blue Fuelling, Black with FB Base
Lopolight NL201-022-FB-B 2nm 360° Blue Fuelling, Black with FB Base (lopolight.com image)

Lopolight

Lopolight NL201-022-FB-B 2nm 360° Blue Fuelling, Black with FB Base

£674.09
Tax included. Shipping calculated at checkout.
NL201-022-FB-B
Lopolight 2nm 360° Blue Fuelling, Black with FB Base (NL201-022-FB-B): LED navigation light, 2 nm visibility, 10-32 VDC, IP68.

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Lopolight 2nm 360° Blue Fuelling, Black with FB Base (part number NL201-022-FB-B) is an LED navigation light from Lopolight of Denmark.

Key points: 2 nm visibility, 360° light arc, blue light. It operates from 10-32 VDC and draws 3.7 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, horizontal mounting. Approved to IEC 60945 (per Lopolight). Lopolight lists this part for vessel sizes: All Sizes.

Supplied with: 1 Navigation light, precabled with 0.75 meter shielded marine grade cable, Installation guide.

PRODUCT DETAILS

  • 2 nm visibility
  • 360° light arc
  • 10-32 VDC operating voltage
  • IP68 protection
  • Approvals: IEC 60945
  • Horizontal mounting
  • Connection: 0.7m cable
  • 1 Navigation light, precabled with 0.75 meter shielded marine grade cable, Installation guide

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Performance

Visibility2nm
Visibility2nm

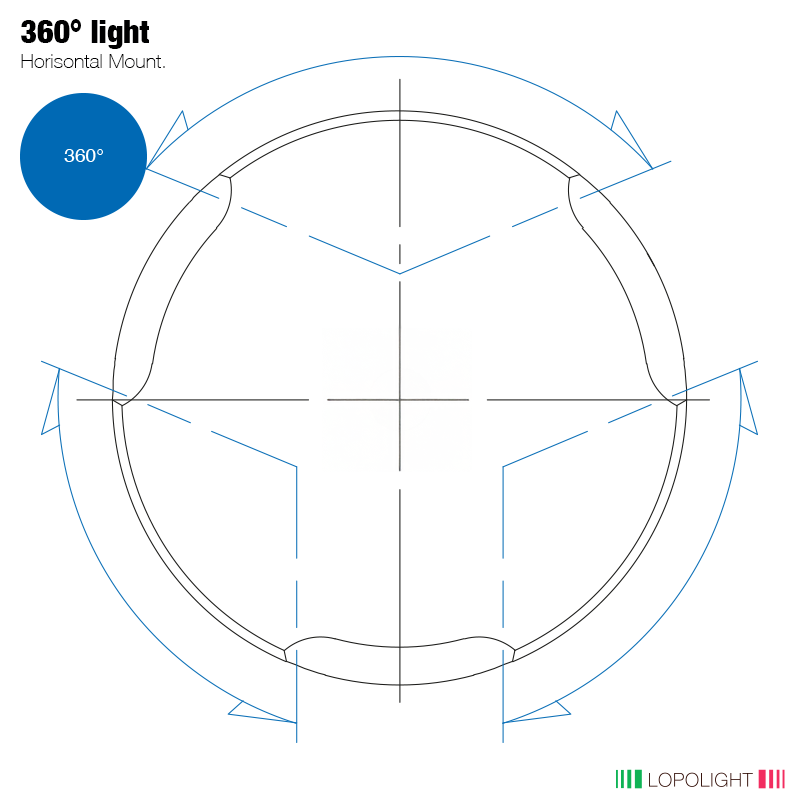

Light arc360°
Light arc360°
Light colourBlue
Light colourBlue

Electrical

Operating voltage10-32VDC
Operating voltage10-32VDC
Power draw (W)3.7
Power draw (W)3.7
Current consumption @ 12 VDC225 mA
Current consumption @ 12 VDC225 mA
Current consumption @ 24 VDC156 mA
Current consumption @ 24 VDC156 mA
Minimum feed wire gauge0.5mm2 AWG22
Minimum feed wire gauge0.5mm2 AWG22

Mechanical

MountingHorizontal
MountingHorizontal
DimensionsØ92,5mm x 36mm
DimensionsØ92,5mm x 36mm
Connection0.7m cable
Connection0.7m cable
MaterialsBlack anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
MaterialsBlack anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Housing finishBlack anodized
Housing finishBlack anodized
Weight0.42 kg
Weight0.42 kg

Environmental

IP ratingIP68
IP ratingIP68
Operating temperature-25°C to 55°C
Operating temperature-25°C to 55°C

Approvals

Approved toIEC 60945
Approved toIEC 60945

General

Vessel size (Lopolight range)All Sizes
Vessel size (Lopolight range)All Sizes
Lopolight part number201-022-FB-B
Lopolight part number201-022-FB-B
IMP part numberNL201-022-FB-B
IMP part numberNL201-022-FB-B
UPC879343043339
UPC879343043339
EAN5704438043206
EAN5704438043206

No videos available for this product.

What is the visibility range of the Lopolight NL201-022-FB-B?
Lopolight specifies 2 nautical mile(s) visibility for this part.
What supply voltage does the Lopolight NL201-022-FB-B need?
Lopolight lists an operating voltage of 10-32 VDC with a power draw of 3.7 W.
Which approvals does the Lopolight NL201-022-FB-B carry?
Lopolight lists approvals to IEC 60945. Declarations of conformity and certificates are published on lopolight.com under Support.
