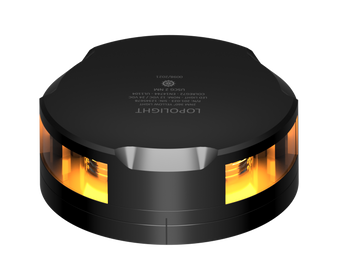

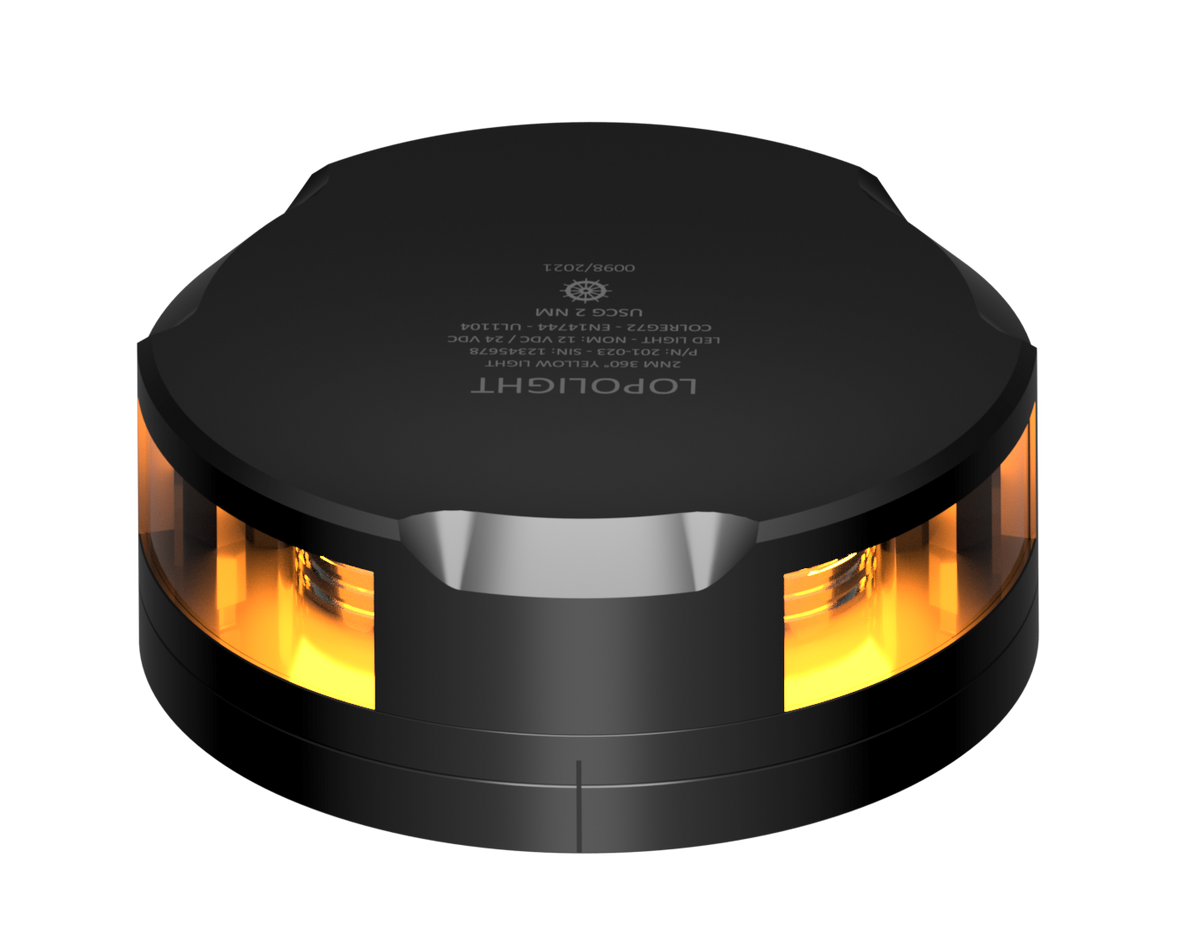

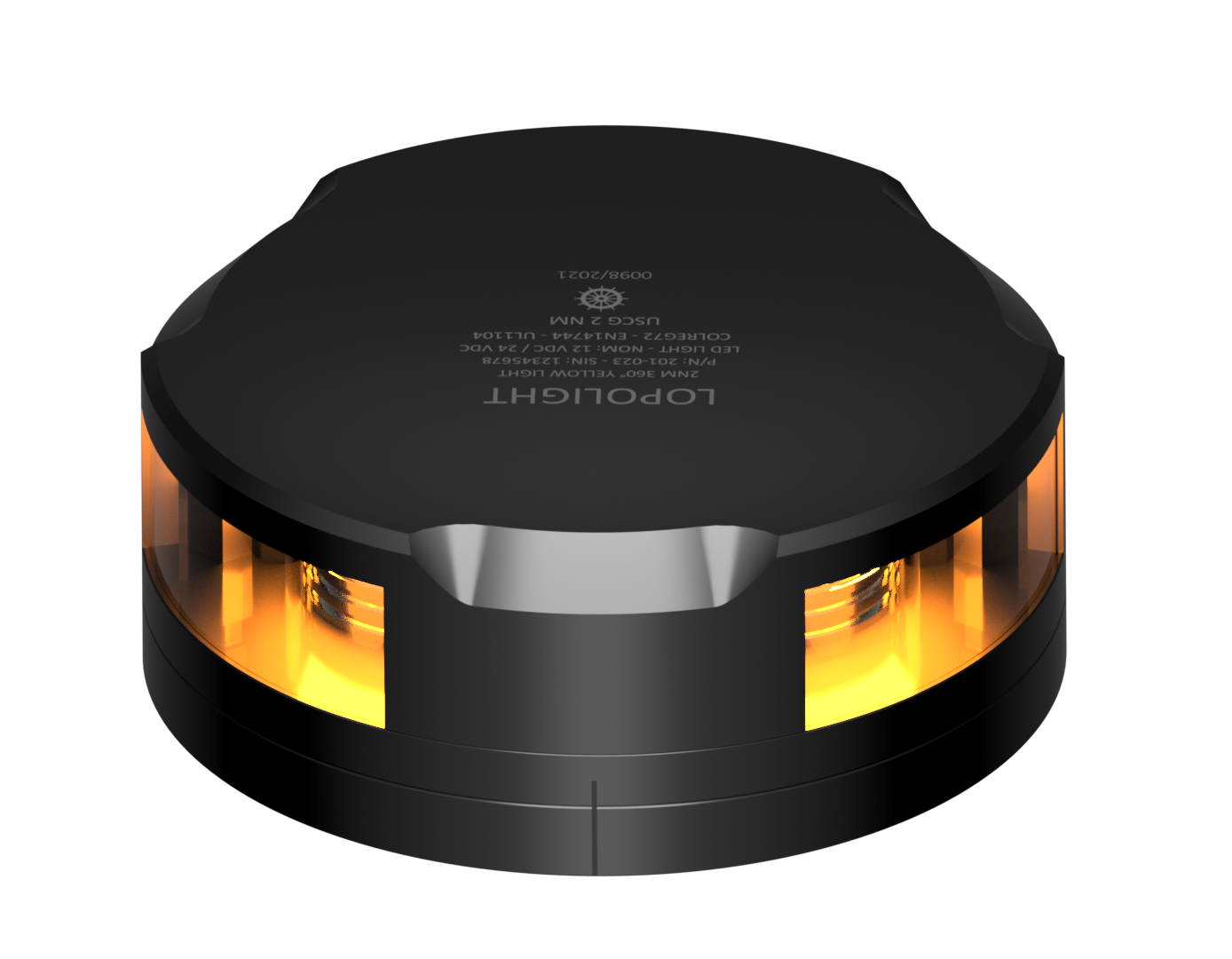

Lopolight NL201-023-FB-B 2nm 360° Yellow Whistle, Black with FB Base
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Lopolight 2nm 360° Yellow Whistle, Black with FB Base (part number NL201-023-FB-B) is an LED navigation light from Lopolight of Denmark.
Key points: 3 nm visibility, 360° light arc, yellow light. It operates from 10-32 VDC and draws 3.6 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, horizontal mounting. Approved to IEC 60945 (per Lopolight). Lopolight lists this part for vessel sizes: All Sizes.
Supplied with: 1 Navigation light, precabled with 0.75 meter shielded marine grade cable, Installation guide.
PRODUCT DETAILS
- 3 nm visibility
- 360° light arc
- 10-32 VDC operating voltage
- IP68 protection
- Approvals: IEC 60945
- Horizontal mounting
- Connection: 0.7m cable
- 1 Navigation light, precabled with 0.75 meter shielded marine grade cable, Installation guide
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Performance
| Visibility | 3nm |

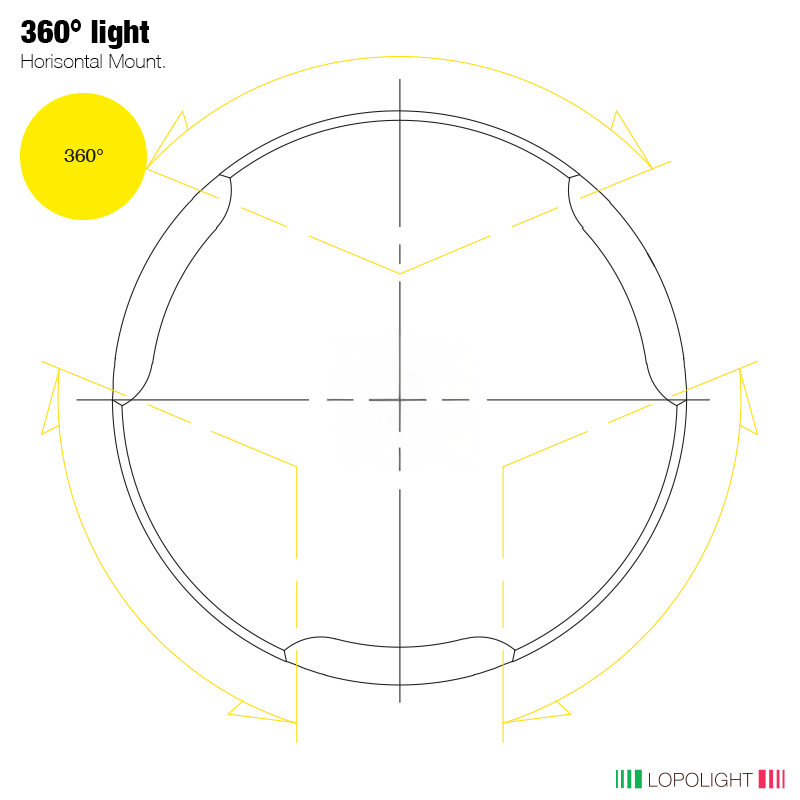

| Light arc | 360° |
| Light colour | Yellow |
Electrical
| Operating voltage | 10-32VDC |
| Power draw (W) | 3.6 |
| Current consumption @ 12 VDC | 300 mA |
| Current consumption @ 24 VDC | 151 mA |
| Minimum feed wire gauge | 0.5mm2 AWG22 |
Mechanical
| Mounting | Horizontal |
| Dimensions | Ø92,5mm x 36mm |
| Connection | 0.7m cable |
| Materials | Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Housing finish | Black anodized |
| Weight | 0.42 kg |
Environmental
| IP rating | IP68 |
| Operating temperature | -25°C to 55°C |
Approvals
| Approved to | IEC 60945 |
General
| Vessel size (Lopolight range) | All Sizes |
| Lopolight part number | 201-023-FB-B |
| IMP part number | NL201-023-FB-B |
| UPC | 879343043384 |
| EAN | 5704438043251 |
