Lopolight

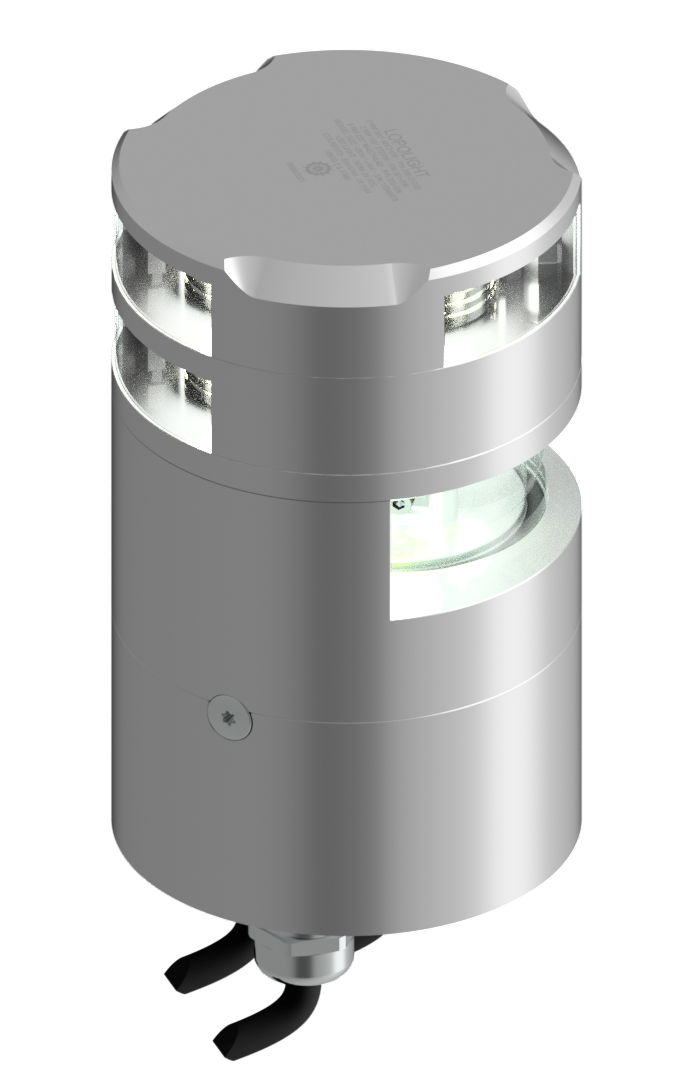

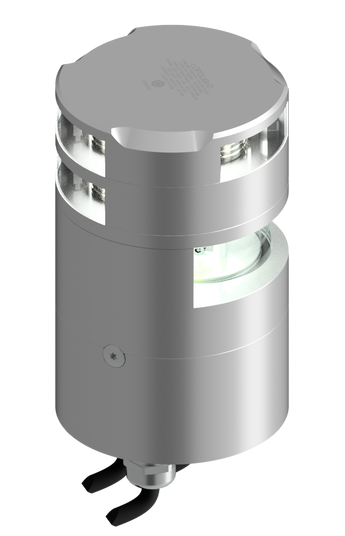

Lopolight NL300-036+005+012G2 5nm Masthead + 2nm 135° Stern + 360° White, Silver
£2,695.82
/
Tax included.
Shipping calculated at checkout.
NL300-036+005+012G2
Lopolight 5nm Masthead + 2nm 135° Stern + 360° White, Silver (NL300-036+005+012G2): LED navigation light, 5 nm visibility, 20-32 VDC, IP68.
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Lopolight 5nm Masthead + 2nm 135° Stern + 360° White, Silver (part number NL300-036+005+012G2) is an LED navigation light from Lopolight of Denmark.
Key points: 5 nm visibility, white light. It operates from 20-32 VDC. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: 20-50M.
PRODUCT DETAILS
- 5 nm visibility (>52cd)
- 20-32 VDC operating voltage
- IP68 protection
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Connection: Plug connector
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Performance
| Visibility | 5nm |
| Intensity | >52cd |
| Light colour | White |
Electrical
| Operating voltage | 20-32VDC |
| Current consumption @ 12 VDC | 0 mA |
| Current consumption @ 24 VDC | 290 mA |
Mechanical
| Connection | Plug connector |
| Materials | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Housing finish | Silver anodized |
| Weight | 1.8 kg |
Environmental
| IP rating | IP68 |
| Operating temperature | -25°C to 55°C |
Approvals
| Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
General
| Vessel size (Lopolight range) | 20-50M |
| Lopolight part number | 300-036+005+012G2 |
| IMP part number | NL300-036+005+012G2 |
| UPC | 879343020958 |
| EAN | 5704438020825 |
No videos available for this product.
What is the visibility range of the Lopolight NL300-036+005+012G2?
Lopolight specifies 5 nautical mile(s) visibility with intensity >52cd for this part.
What supply voltage does the Lopolight NL300-036+005+012G2 need?
Lopolight lists an operating voltage of 20-32 VDC.
Which approvals does the Lopolight NL300-036+005+012G2 carry?
Lopolight lists approvals to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR. Declarations of conformity and certificates are published on lopolight.com under Support.
