Lopolight NL300-037-B 2,5M 5nm Masthead, Black Anodized
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

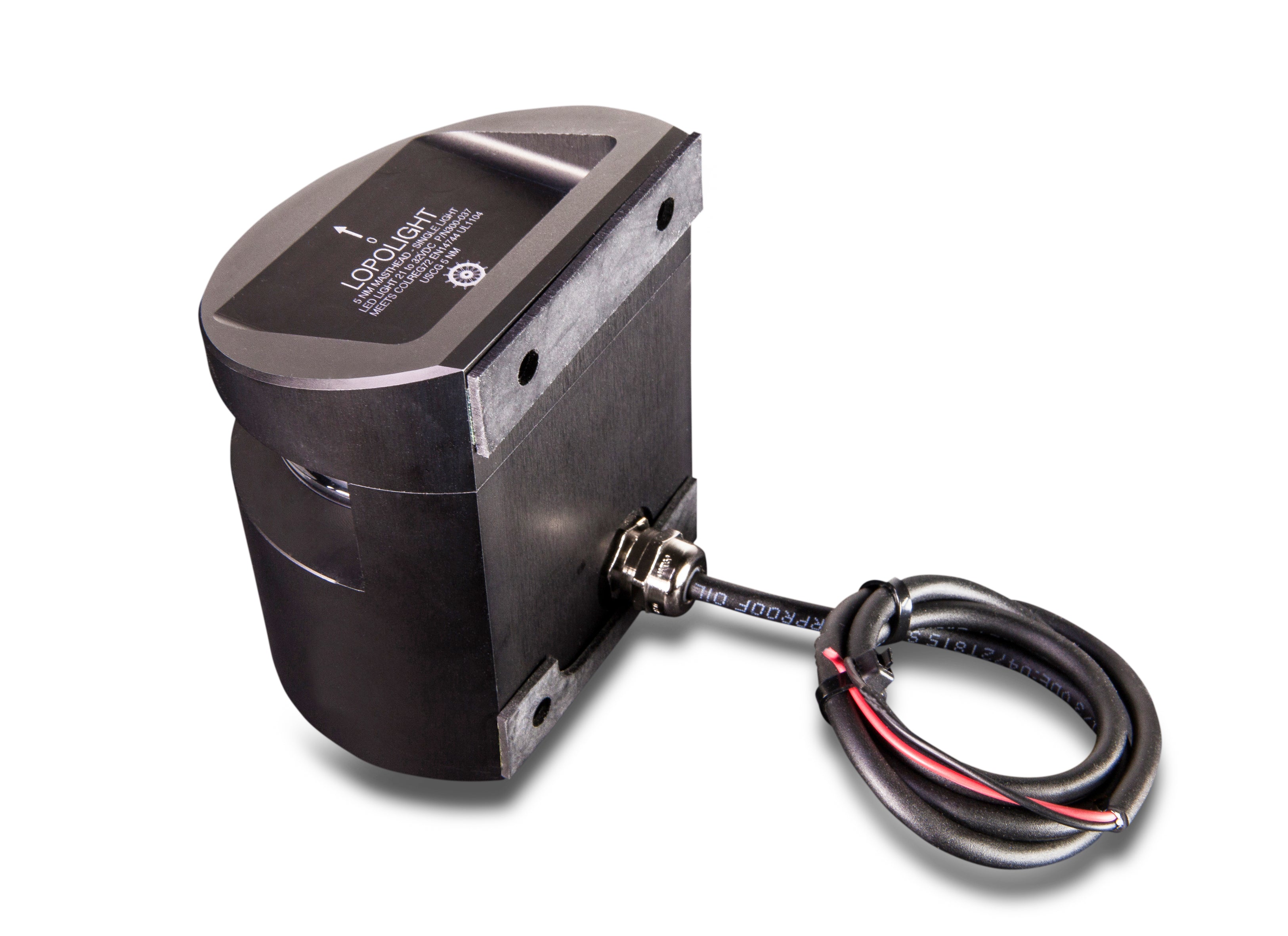

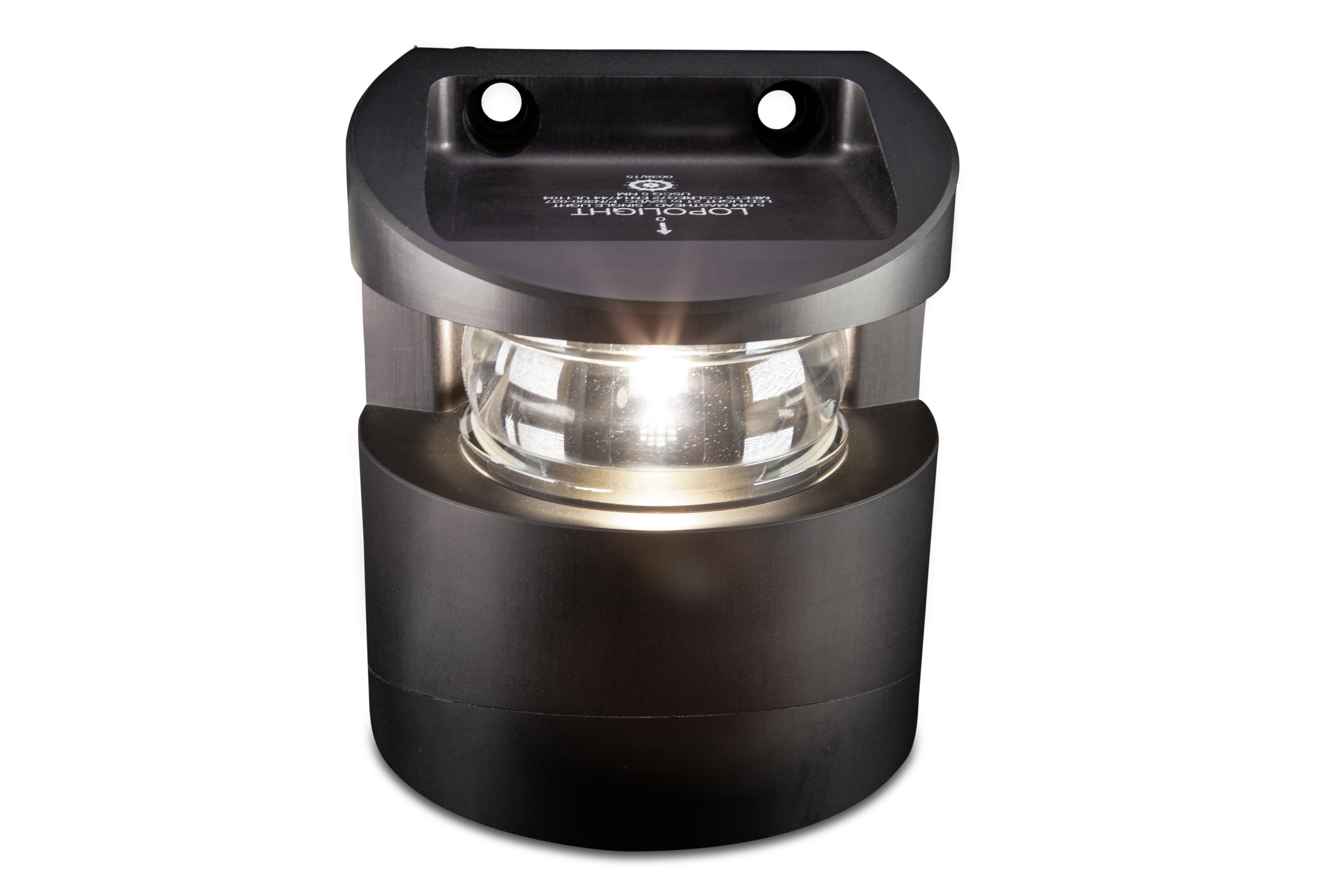

The Lopolight 5nm Masthead, Black Anodized (part number NL300-037-B 2,5M) is an LED navigation light from Lopolight of Denmark.
Key points: 5 nm visibility. It operates from 20-32 VDC and draws 7 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, vertical mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: 20-50M.
Supplied with: 1 Navigation light, Installation guide.
PRODUCT DETAILS
- 5 nm visibility (>52cd)
- 20-32 VDC operating voltage
- IP68 protection
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Vertical mounting
- 1 Navigation light, Installation guide
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Performance
| Visibility | 5nm |
| Intensity | >52cd |
Electrical
| Operating voltage | 20-32VDC |
| Power draw (W) | 7 |
| Current consumption @ 12 VDC | 0 mA |
| Current consumption @ 24 VDC | 290 mA |
| Minimum feed wire gauge | 0.5mm2 AWG22 |
Mechanical

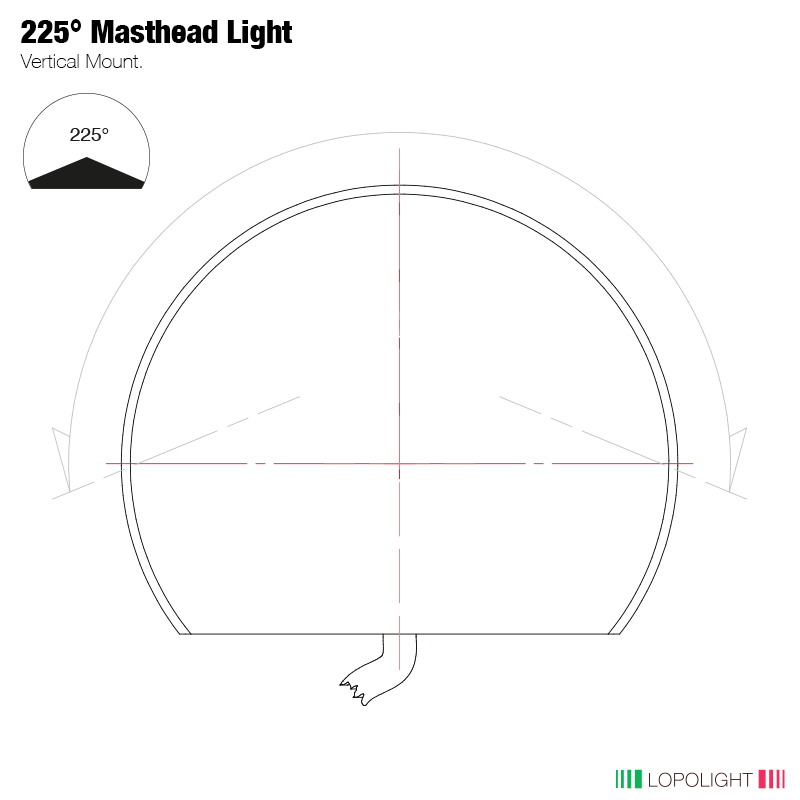

| Mounting | Vertical |
| Dimensions | 107 x 92,5 x 74 mm |
| Materials | Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Housing finish | Black anodized |
| Weight | 1.21 kg |
Environmental
| IP rating | IP68 |
| Operating temperature | -25°C to 55°C |
Approvals
| Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
General
| Vessel size (Lopolight range) | 20-50M |
| Lopolight part number | 300-037-B 2,5M |
| IMP part number | NL300-037-B 2,5M |
| UPC | 879343020781 |
| EAN | 5704438020658 |
