Lopolight
Lopolight NL300-037-B 225° Masthead, Cable Back with 0.7m Cable, Black
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

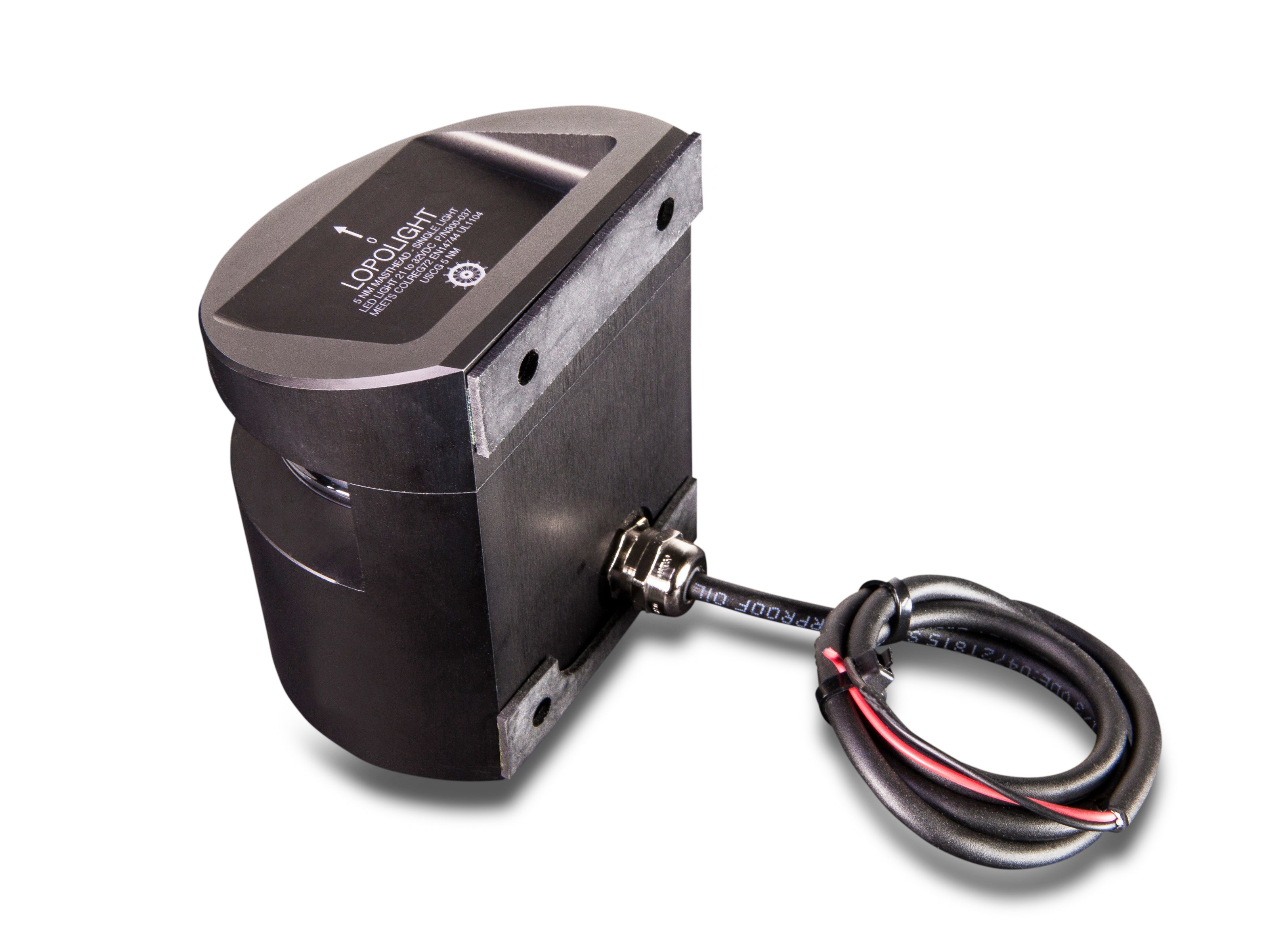

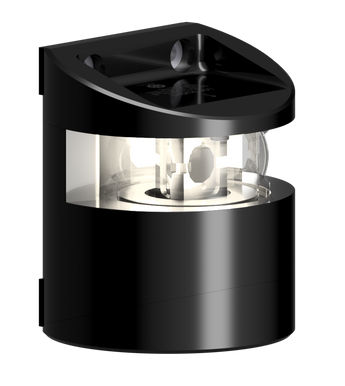

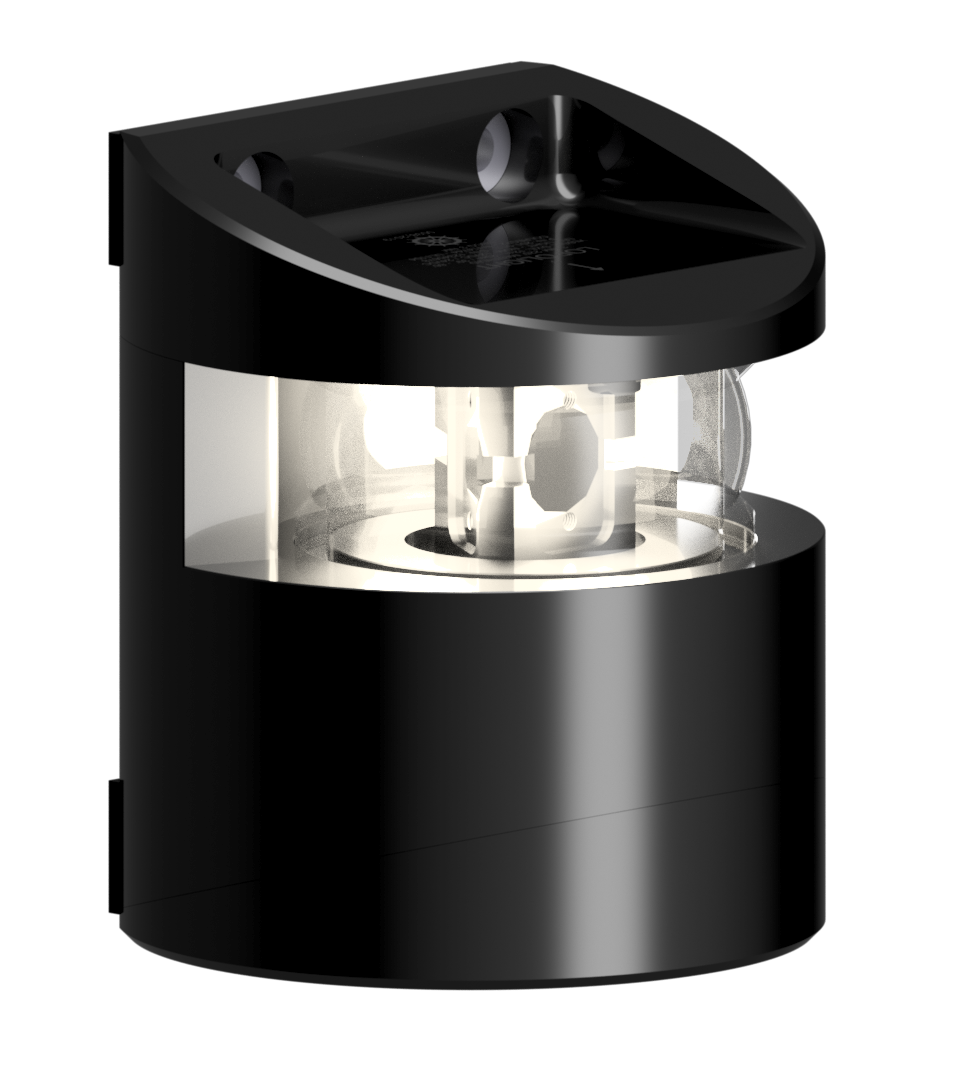

The Lopolight 225° Masthead, Cable Back with 0.7m Cable, Black (part number NL300-037-B) is an LED navigation light from Lopolight of Denmark.
Key points: 5 nm visibility, 225° light arc. It operates from 20-32 VDC and draws 7 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, vertical mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: 20-50M.
PRODUCT DETAILS
- 5 nm visibility (>52cd)

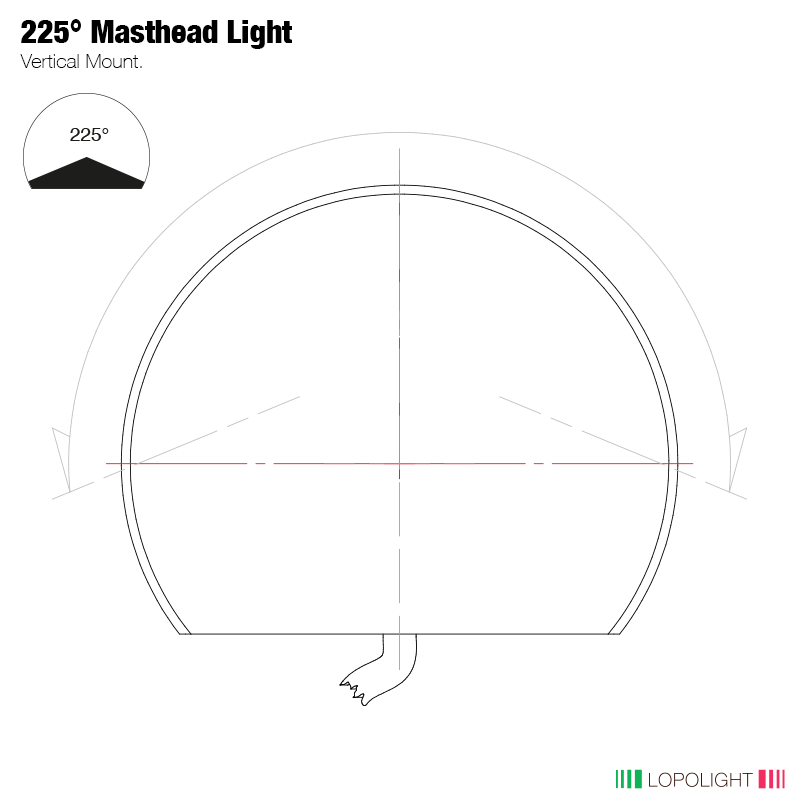

- 225° light arc
- 20-32 VDC operating voltage
- IP68 protection
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Vertical mounting
- Connection: 0.7m cable
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Performance
| Visibility | 5nm |
| Intensity | >52cd |
| Light arc | 225° |
Electrical
| Operating voltage | 20-32VDC |
| Power draw (W) | 7 |
| Current consumption @ 12 VDC | 0 mA |
| Current consumption @ 24 VDC | 290 mA |
| Minimum feed wire gauge | 0.5mm2 AWG22 |
Mechanical
| Mounting | Vertical |
| Dimensions | 107 x 92,5 x 74 mm |
| Connection | 0.7m cable |
| Materials | Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Housing finish | Black anodized |
| Weight | 1.06 kg |
Environmental
| IP rating | IP68 |
| Operating temperature | -25°C to 55°C |
Approvals
| Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
General
| Vessel size (Lopolight range) | 20-50M |
| Lopolight part number | 300-037-B |
| IMP part number | NL300-037-B |
| UPC | 879343003333 |
| EAN | 5704438003330 |
