Lopolight NL300-037-CD 225° Masthead, Cable Down with 0.7m Cable

£1,617.01
Tax included. Shipping calculated at checkout.
NL300-037-CD
Lopolight 225° Masthead, Cable Down with 0.7m Cable (NL300-037-CD): LED navigation light, 5 nm visibility, 20-32 VDC, IP68.

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

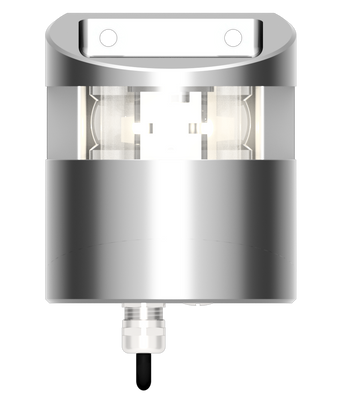

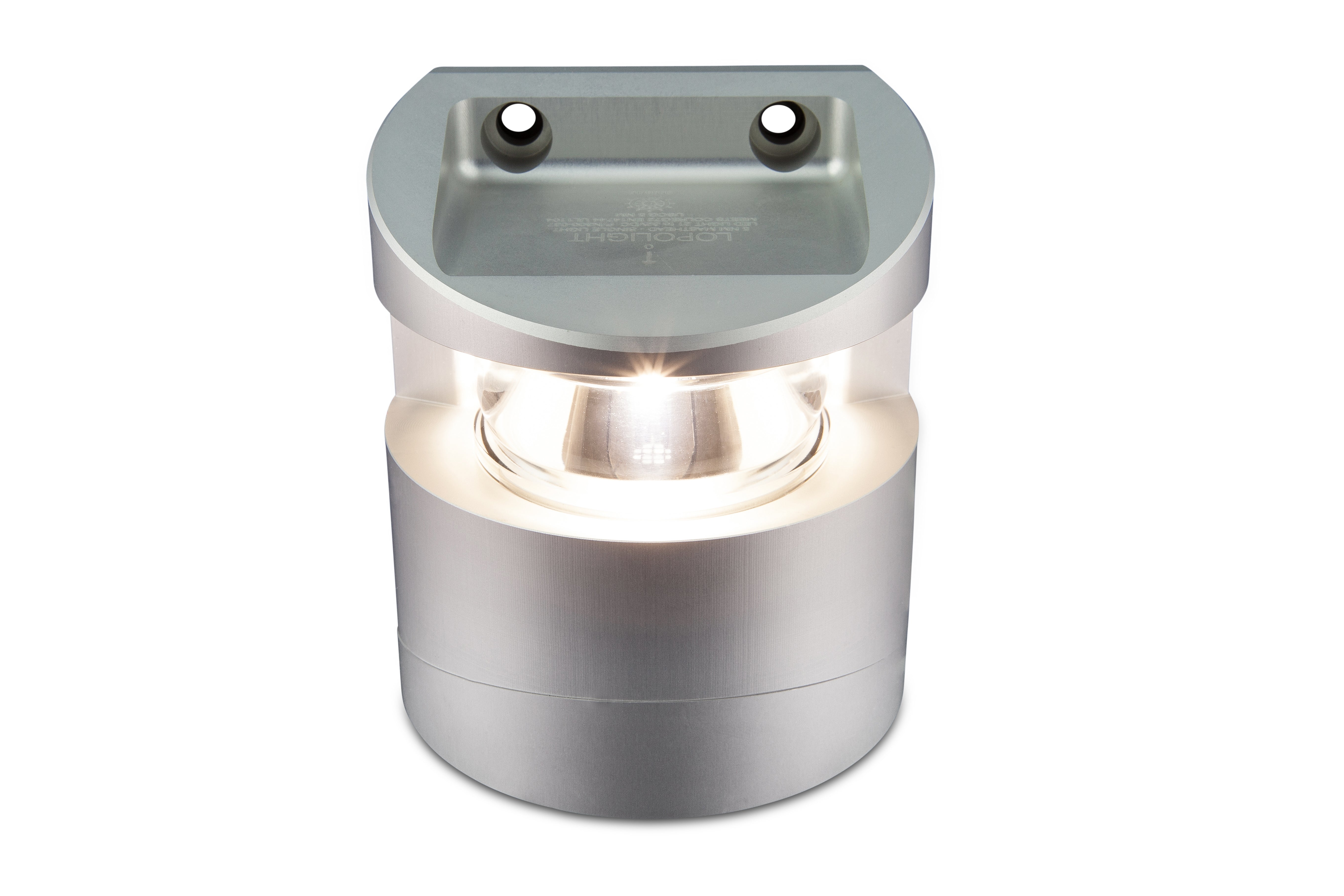

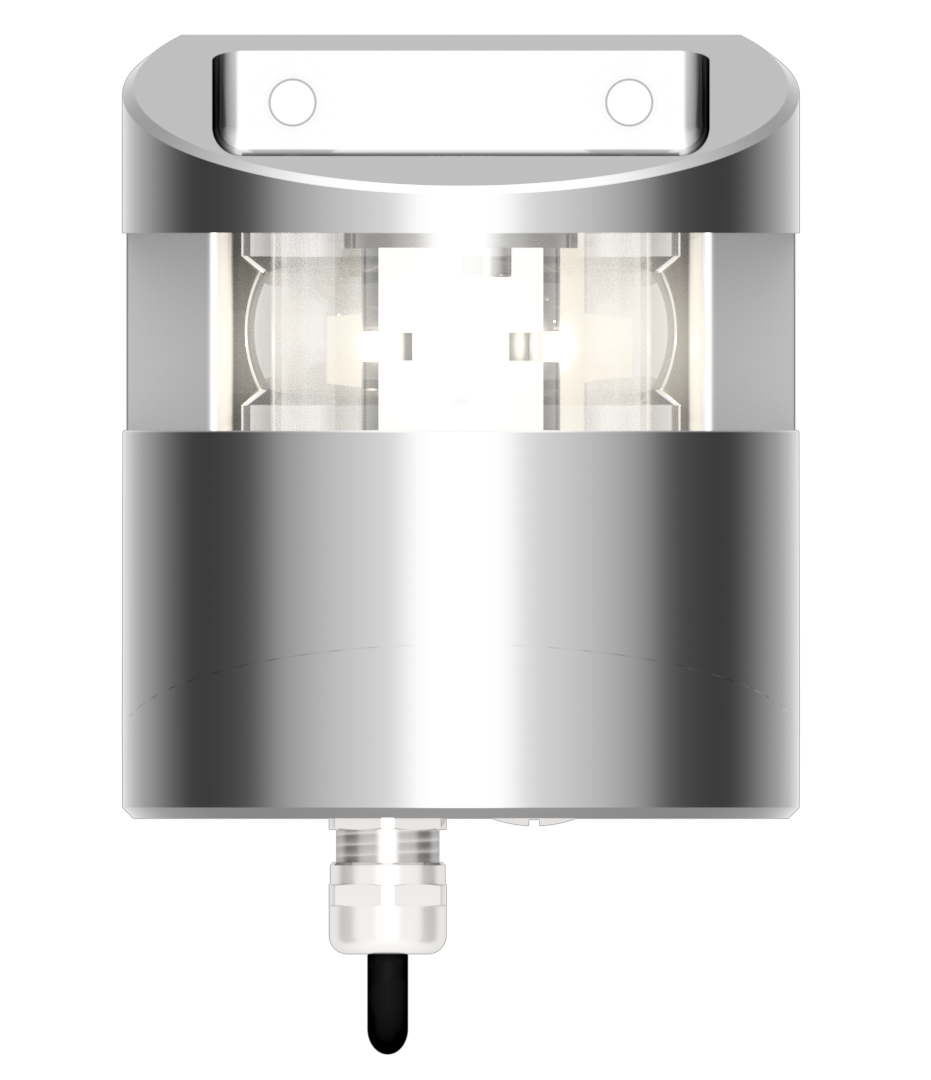

The Lopolight 225° Masthead, Cable Down with 0.7m Cable (part number NL300-037-CD) is an LED navigation light from Lopolight of Denmark.

Key points: 5 nm visibility, 225° light arc. It operates from 20-32 VDC and draws 7 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, vertical mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: 20-50M.

PRODUCT DETAILS

  • 5 nm visibility (>52cd)

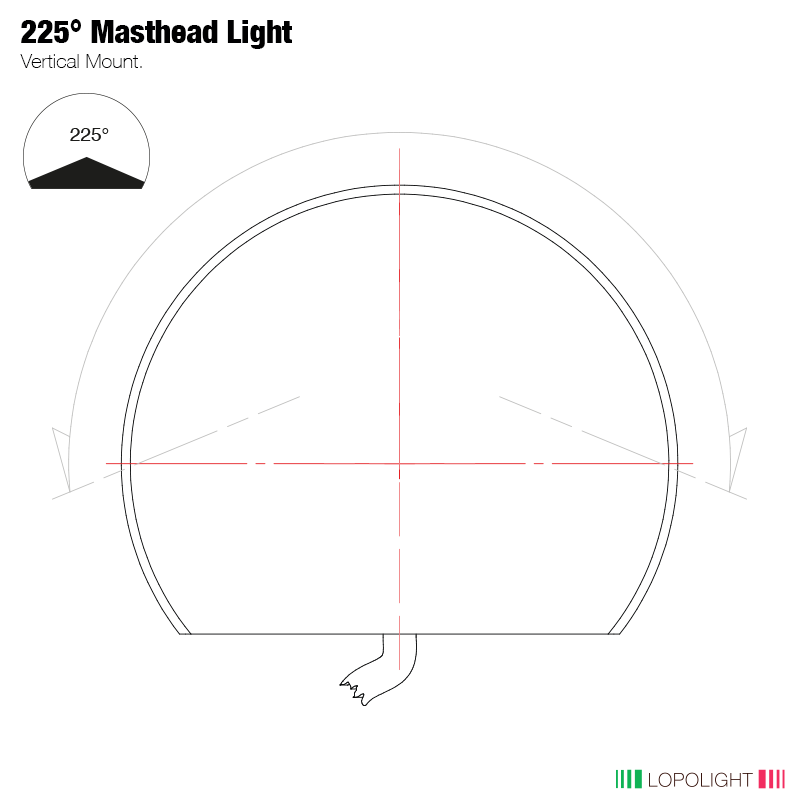

  • 225° light arc
  • 20-32 VDC operating voltage
  • IP68 protection
  • Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
  • Vertical mounting
  • Connection: 0.7m cable

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Performance

Visibility5nm
Visibility5nm
Intensity>52cd
Intensity>52cd
Light arc225°
Light arc225°

Electrical

Operating voltage20-32VDC
Operating voltage20-32VDC
Power draw (W)7
Power draw (W)7
Current consumption @ 12 VDC0 mA
Current consumption @ 12 VDC0 mA
Current consumption @ 24 VDC290 mA
Current consumption @ 24 VDC290 mA
Minimum feed wire gauge0.5mm2 AWG22
Minimum feed wire gauge0.5mm2 AWG22

Mechanical

MountingVertical
MountingVertical
Dimensions107 x 92,5 x 74 mm
Dimensions107 x 92,5 x 74 mm
Connection0.7m cable
Connection0.7m cable
MaterialsSilver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
MaterialsSilver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Weight1.06 kg
Weight1.06 kg

Environmental

IP ratingIP68
IP ratingIP68
Operating temperature-25°C to 55°C
Operating temperature-25°C to 55°C

Approvals

Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR

General

Vessel size (Lopolight range)20-50M
Vessel size (Lopolight range)20-50M
Lopolight part number300-037-CD
Lopolight part number300-037-CD
IMP part numberNL300-037-CD
IMP part numberNL300-037-CD
UPC879343006594
UPC879343006594
EAN5704438006591
EAN5704438006591

No videos available for this product.

What is the visibility range of the Lopolight NL300-037-CD?
Lopolight specifies 5 nautical mile(s) visibility with intensity >52cd for this part.
What supply voltage does the Lopolight NL300-037-CD need?
Lopolight lists an operating voltage of 20-32 VDC with a power draw of 7 W.
Which approvals does the Lopolight NL300-037-CD carry?
Lopolight lists approvals to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR. Declarations of conformity and certificates are published on lopolight.com under Support.
