Lopolight
Lopolight NL300-112G2ST+301-140 3nm 360° White, Double + 60° Panama Steering Via RPM
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

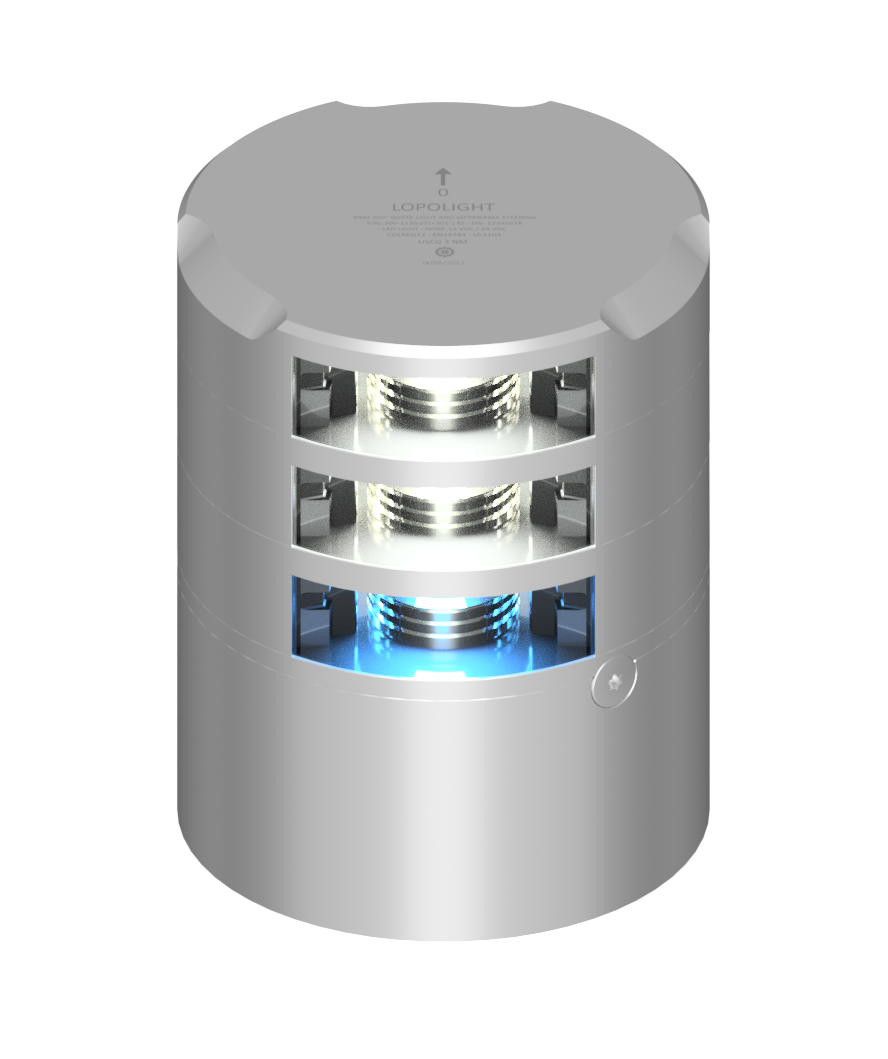

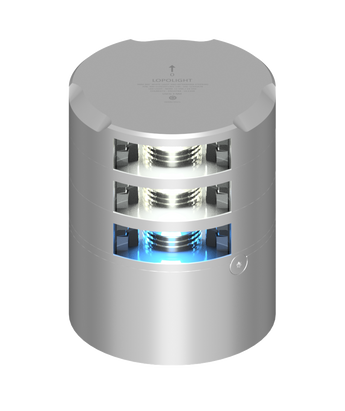

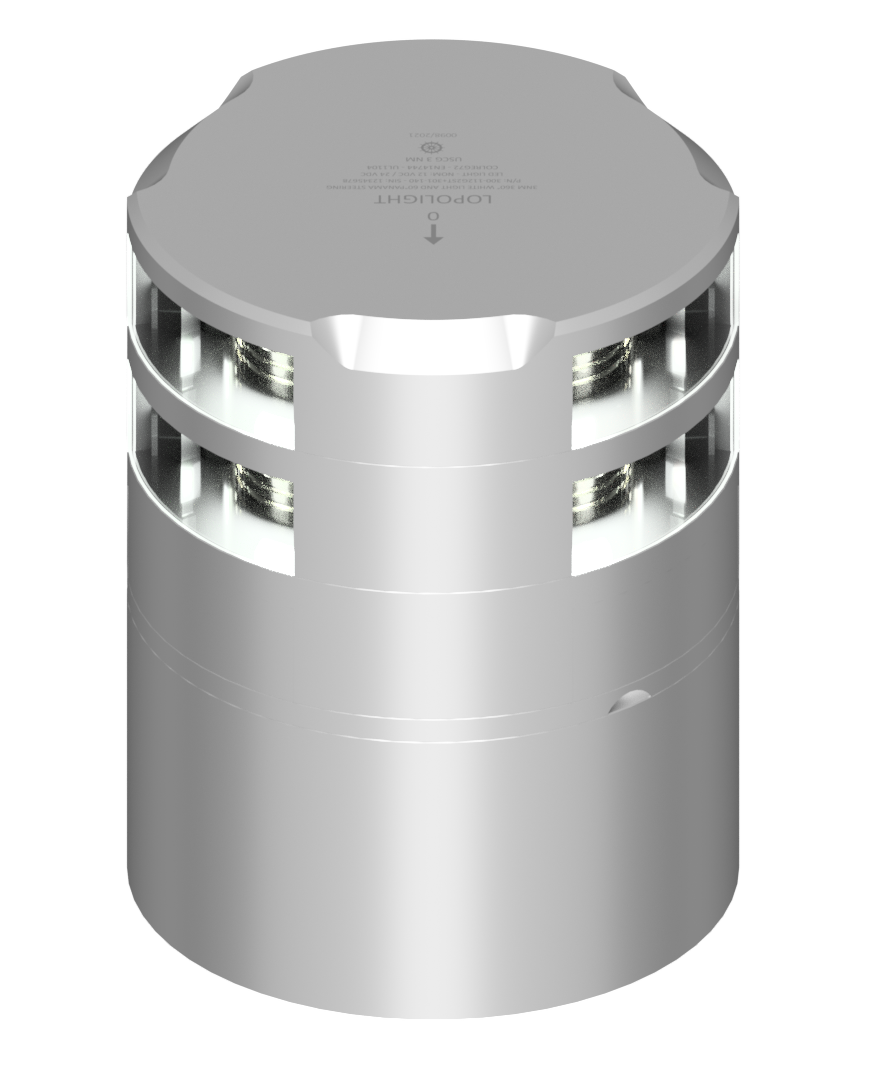

The Lopolight 3nm 360° White, Double + 60° Panama Steering Via RPM (part number NL300-112G2ST+301-140) is an LED navigation light from Lopolight of Denmark.
Key points: 3 nm visibility, white light. It operates from 10-32 VDC. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, horizontal mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D. (per Lopolight). Lopolight lists this part for vessel sizes: Over 50M.
Supplied with: 1 Navigation light, Installation guide.
PRODUCT DETAILS
- 3 nm visibility (>15cd)
- 10-32 VDC operating voltage
- IP68 protection
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D.
- Horizontal mounting
- Connection: Plug connector
- 1 Navigation light, Installation guide
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Performance
| Visibility | 3nm |
| Intensity | >15cd |
| Light colour | White |
Electrical
| Operating voltage | 10-32VDC |
| Current consumption @ 12 VDC | 0 mA |
| Current consumption @ 24 VDC | 0 mA |
Mechanical
| Mounting | Horizontal |
| Connection | Plug connector |
| Weight | 1.9 kg |
Environmental
| IP rating | IP68 |
| Operating temperature | -25°C to 55°C |
Approvals
| Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D. |
General
| Vessel size (Lopolight range) | Over 50M |
| Lopolight part number | 300-112G2ST+301-140 |
| IMP part number | NL300-112G2ST+301-140 |
| UPC | 879343022747 |
| EAN | 5704438022614 |
No videos available for this product.
