Lopolight NL300-112G2ST-B-CD 3nm 360° White, Double, Black Anodized Lopolight NL300-112G2ST-B-CD 3nm 360° White, Double, Black Anodized
Lopolight NL300-112G2ST-B-CD 3nm 360° White, Double, Black Anodized (lopolight.com image) Lopolight NL300-112G2ST-B-CD 3nm 360° White, Double, Black Anodized (lopolight.com image)
Lopolight NL300-112G2ST-B-CD 3nm 360° White, Double, Black Anodized
Lopolight NL300-112G2ST-B-CD 3nm 360° White, Double, Black Anodized (lopolight.com image)

Lopolight

Lopolight NL300-112G2ST-B-CD 3nm 360° White, Double, Black Anodized

£2,048.39
Tax included. Shipping calculated at checkout.
NL300-112G2ST-B-CD
Lopolight 3nm 360° White, Double, Black Anodized (NL300-112G2ST-B-CD): LED navigation light, 3 nm visibility, 10-32 VDC, IP68.

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

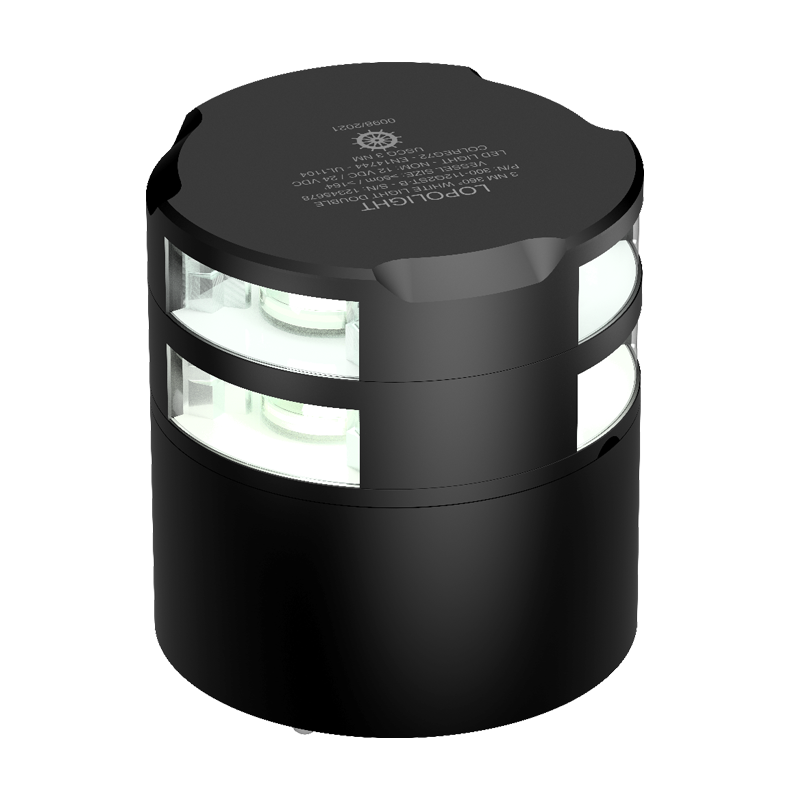

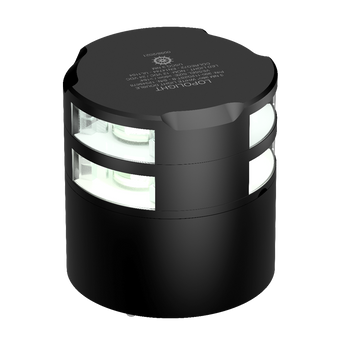

The Lopolight 3nm 360° White, Double, Black Anodized (part number NL300-112G2ST-B-CD) is an LED navigation light from Lopolight of Denmark.

Key points: 3 nm visibility, 360° light arc, white light. It operates from 10-32 VDC and draws 4.2 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, horizontal mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: Over 50M.

Supplied with: 1 Navigation light, Installation guide.

PRODUCT DETAILS

  • 3 nm visibility (>15cd)

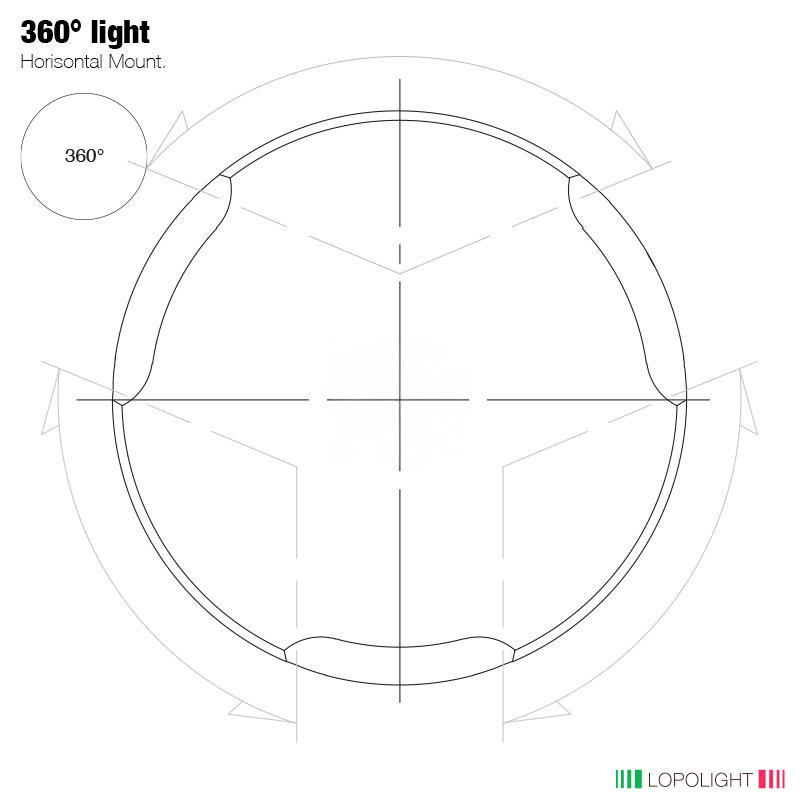

  • 360° light arc
  • 10-32 VDC operating voltage
  • IP68 protection
  • Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
  • Horizontal mounting
  • Connection: Plug connector
  • 1 Navigation light, Installation guide

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Performance

Visibility3nm
Intensity>15cd
Light arc360°
Light colourWhite

Electrical

Operating voltage10-32VDC
Power draw (W)4.2
Current consumption @ 12 VDC270 mA
Current consumption @ 24 VDC176 mA
Minimum feed wire gauge0.5mm2 AWG22

Mechanical

MountingHorizontal
DimensionsØ92,5mm x 96,5mm
ConnectionPlug connector
MaterialsBlack anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Housing finishBlack anodized
Weight1.31 kg

Environmental

IP ratingIP68
Operating temperature-25°C to 55°C

Approvals

Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR

General

Vessel size (Lopolight range)Over 50M
Lopolight part number300-112G2ST-B-CD
IMP part numberNL300-112G2ST-B-CD
UPC879343012267
EAN5704438012264

No videos available for this product.

What is the visibility range of the Lopolight NL300-112G2ST-B-CD?
Lopolight specifies 3 nautical mile(s) visibility with intensity >15cd for this part.
What supply voltage does the Lopolight NL300-112G2ST-B-CD need?
Lopolight lists an operating voltage of 10-32 VDC with a power draw of 4.2 W.
Which approvals does the Lopolight NL300-112G2ST-B-CD carry?
Lopolight lists approvals to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR. Declarations of conformity and certificates are published on lopolight.com under Support.
