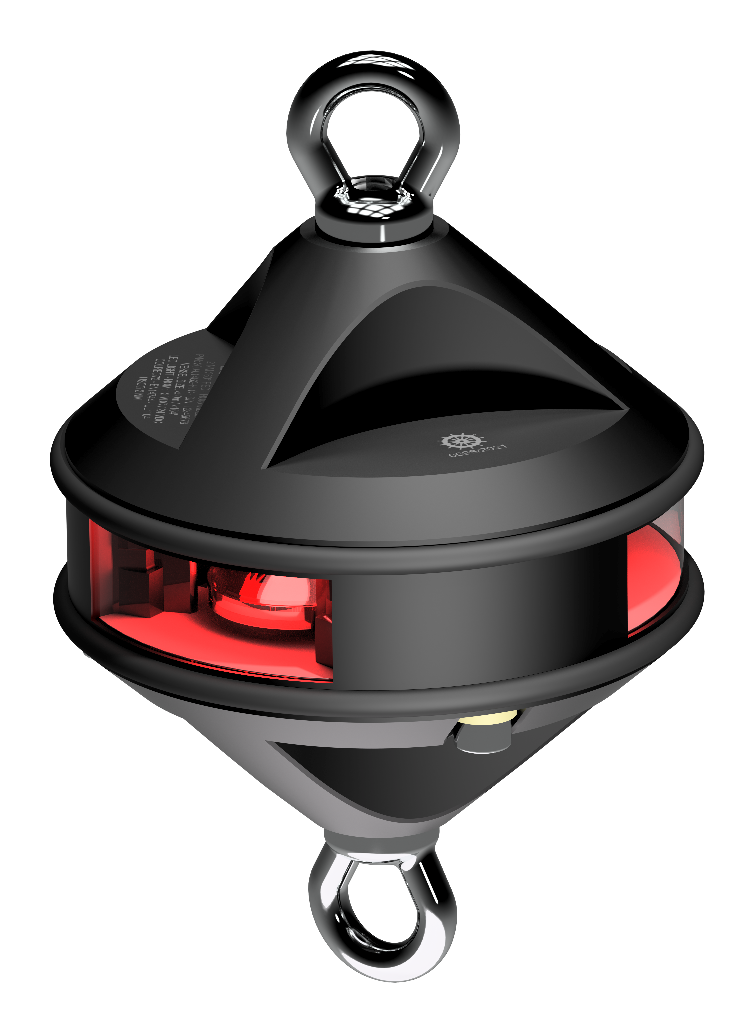

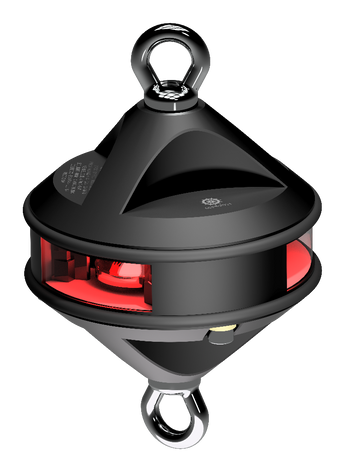

Lopolight NL300-114G2-H2C-B 3nm 360° Red, Hoist, Black Anodized
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Lopolight 3nm 360° Red, Hoist, Black Anodized (part number NL300-114G2-H2C-B) is an LED navigation light from Lopolight of Denmark.
Key points: 3 nm visibility, 360° light arc, red light. It operates from 20-32 VDC. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, hoistable mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: Over 50M.
PRODUCT DETAILS
- 3 nm visibility (>15cd)
- 360° light arc
- 20-32 VDC operating voltage
- IP68 protection
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Hoistable mounting
- Connection: M12 connector
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Performance
| Visibility | 3nm |
| Intensity | >15cd |
| Light arc | 360° |
| Light colour | Red |
Electrical
| Operating voltage | 20-32VDC |
| Current consumption @ 12 VDC | 210 mA |
| Current consumption @ 24 VDC | 120 mA |
Mechanical
| Mounting | Hoistable |
| Connection | M12 connector |
| Housing finish | Black anodized |
| Weight | 0.75 kg |
Environmental
| IP rating | IP68 |
| Operating temperature | -25°C to 55°C |
Approvals
| Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
General
| Vessel size (Lopolight range) | Over 50M |
| Lopolight part number | 300-114G2-H2C-B |
| IMP part number | NL300-114G2-H2C-B |
| UPC | 879343022877 |
| EAN | 5704438022744 |
