Lopolight
Lopolight NL300-114G2-PRO 180° 3nm 180° Red, Black Anodized
£774.00
/
Tax included.
Shipping calculated at checkout.
NL300-114G2-PRO 180°
Lopolight 3nm 180° Red, Black Anodized (NL300-114G2-PRO 180°): LED navigation light, 3 nm visibility, 10-32 VDC, IP68.
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

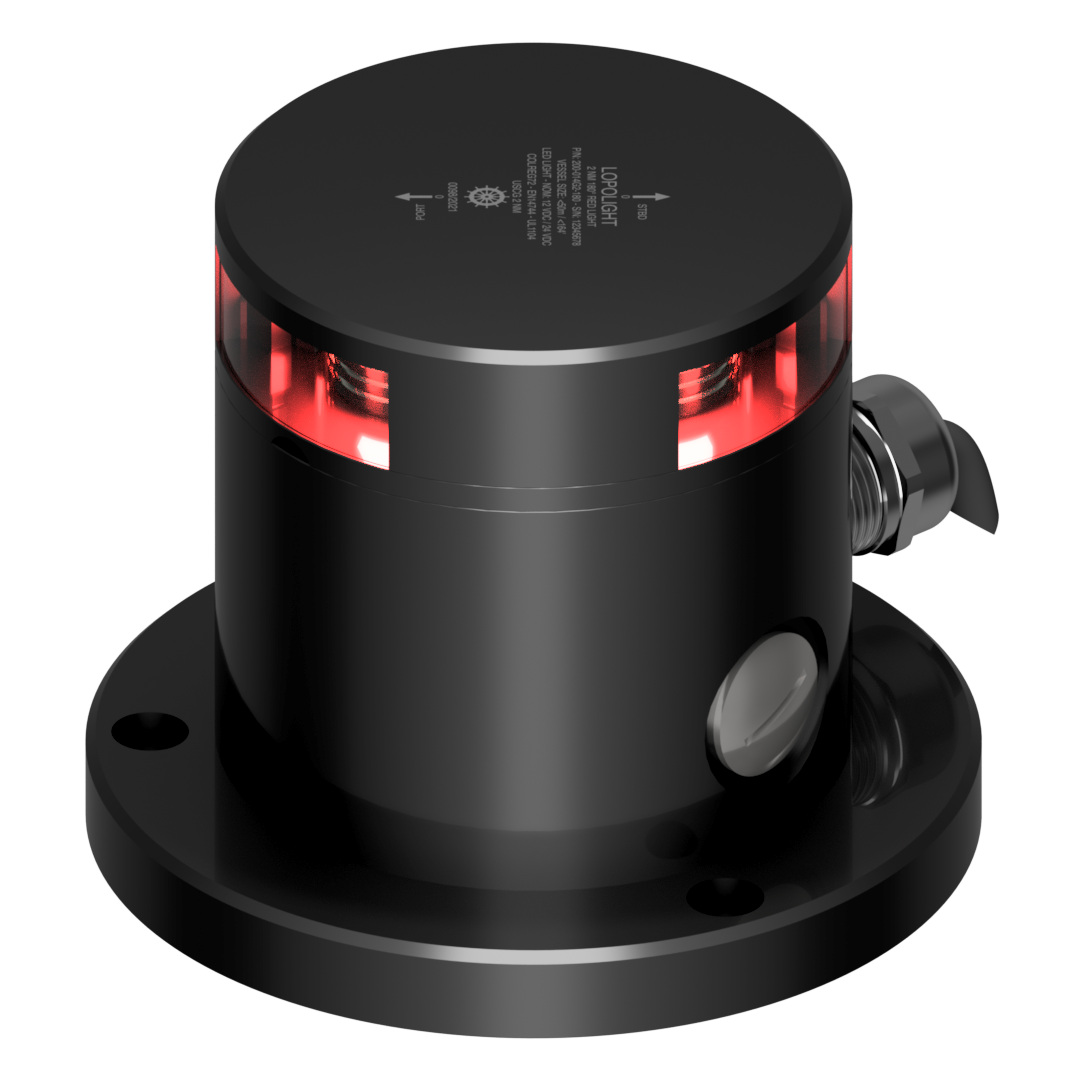

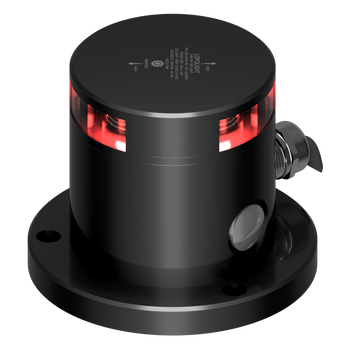

The Lopolight 3nm 180° Red, Black Anodized (part number NL300-114G2-PRO 180°) is an LED navigation light from Lopolight of Denmark.
Key points: 3 nm visibility, 180° light arc, red light. It operates from 10-32 VDC. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: Over 50M.
PRODUCT DETAILS
- 3 nm visibility (>15cd)
- 180° light arc
- 10-32 VDC operating voltage
- IP68 protection
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Connection: Plug connector
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Performance
| Visibility | 3nm |
| Intensity | >15cd |
| Light arc | 180° |
| Light colour | Red |
Electrical
| Operating voltage | 10-32VDC |
| Current consumption @ 12 VDC | 210 mA |
| Current consumption @ 24 VDC | 100 mA |
Mechanical
| Dimensions | Ø92,5mm x 89,5mm |
| Connection | Plug connector |
| Housing finish | Black anodized |
| Weight | 1.15 kg |
Environmental
| IP rating | IP68 |
| Operating temperature | -25°C to 55°C |
Approvals
| Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
General
| Vessel size (Lopolight range) | Over 50M |
| Lopolight part number | 300-114G2-PRO 180° |
| IMP part number | NL300-114G2-PRO 180° |
| UPC | 879343013486 |
| EAN | 5704438013483 |
No videos available for this product.
What is the visibility range of the Lopolight NL300-114G2-PRO 180°?
Lopolight specifies 3 nautical mile(s) visibility with intensity >15cd for this part.
What supply voltage does the Lopolight NL300-114G2-PRO 180° need?
Lopolight lists an operating voltage of 10-32 VDC.
Which approvals does the Lopolight NL300-114G2-PRO 180° carry?
Lopolight lists approvals to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR. Declarations of conformity and certificates are published on lopolight.com under Support.
