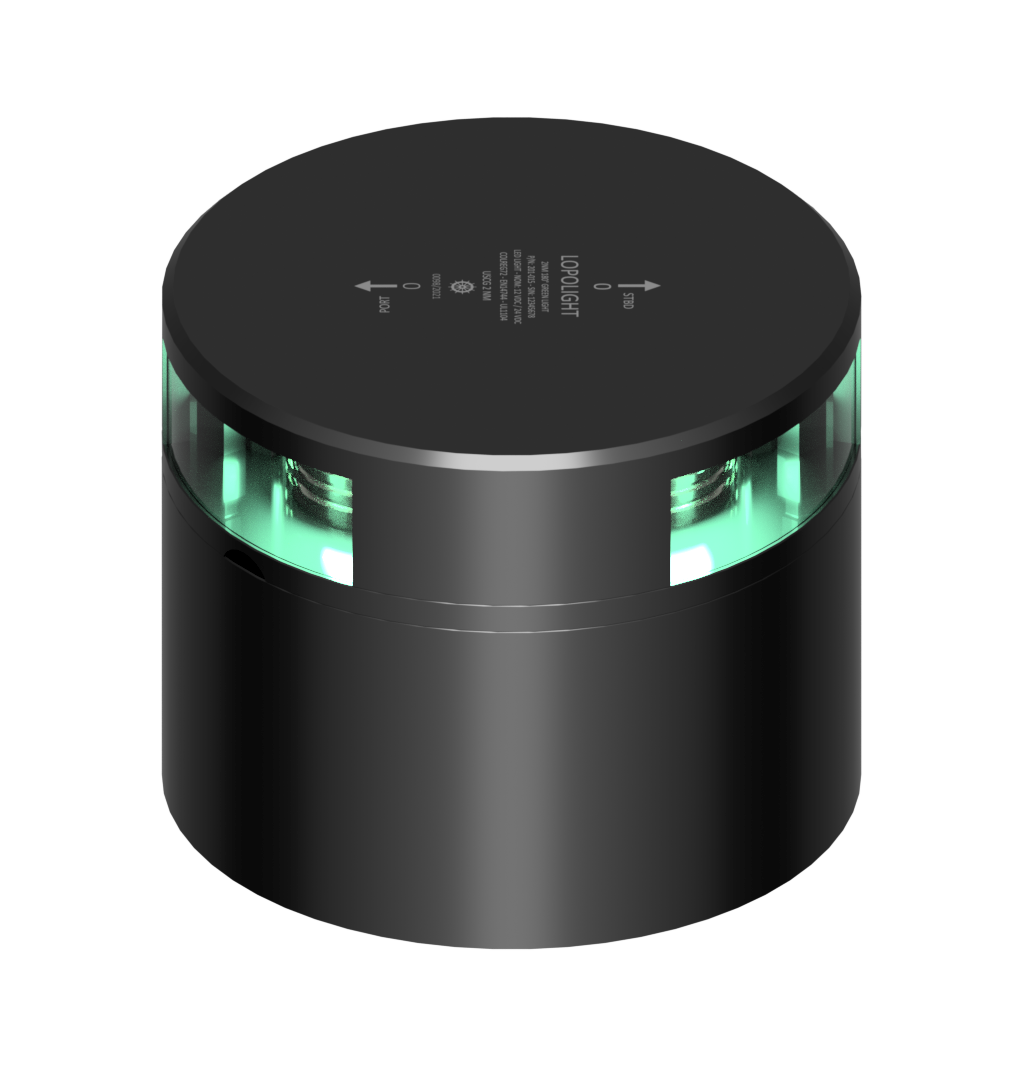

Lopolight NL300-115G2-B-CD-180 3nm 180° Green, Black Anodized

£1,126.60
Tax included. Shipping calculated at checkout.
NL300-115G2-B-CD-180
Lopolight 3nm 180° Green, Black Anodized (NL300-115G2-B-CD-180): LED navigation light, 3 nm visibility, 10-32 VDC, IP68.

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Lopolight 3nm 180° Green, Black Anodized (part number NL300-115G2-B-CD-180) is an LED navigation light from Lopolight of Denmark.

Key points: 3 nm visibility, 180° light arc, green light. It operates from 10-32 VDC. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: Over 50M.

PRODUCT DETAILS

  • 3 nm visibility (>15cd)

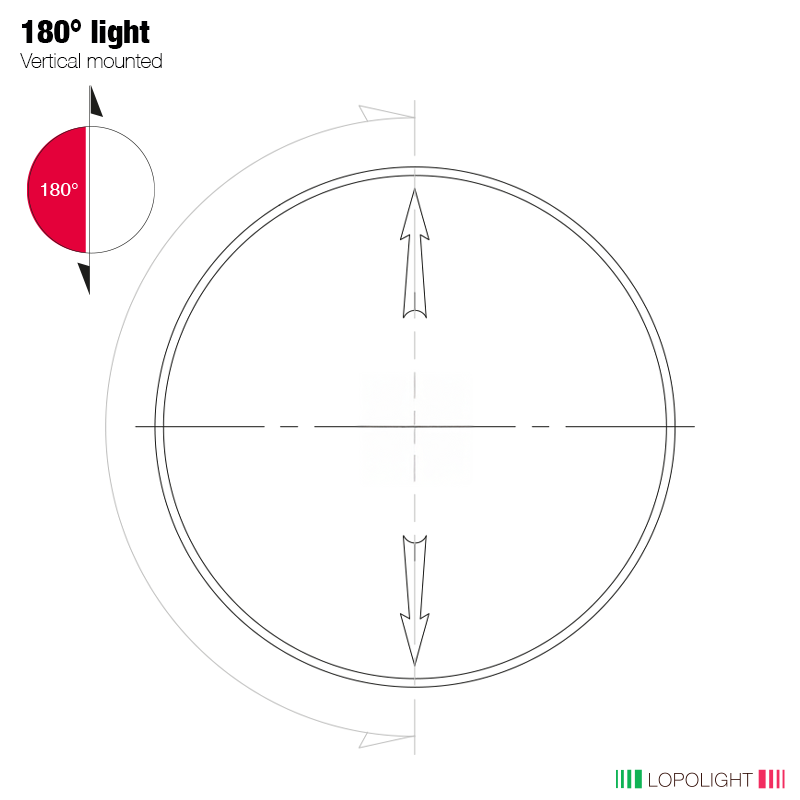

  • 180° light arc
  • 10-32 VDC operating voltage
  • IP68 protection
  • Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
  • Connection: Plug connector

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Performance

Visibility3nm
Visibility3nm
Intensity>15cd
Intensity>15cd
Light arc180°
Light arc180°
Light colourGreen
Light colourGreen

Electrical

Operating voltage10-32VDC
Operating voltage10-32VDC
Current consumption @ 12 VDC182 mA
Current consumption @ 12 VDC182 mA
Current consumption @ 24 VDC176 mA
Current consumption @ 24 VDC176 mA

Mechanical

ConnectionPlug connector
ConnectionPlug connector
Housing finishBlack anodized
Housing finishBlack anodized
Weight0.96 kg
Weight0.96 kg

Environmental

IP ratingIP68
IP ratingIP68
Operating temperature-25°C to 55°C
Operating temperature-25°C to 55°C

Approvals

Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR

General

Vessel size (Lopolight range)Over 50M
Vessel size (Lopolight range)Over 50M
Lopolight part number300-115G2-B-CD-180
Lopolight part number300-115G2-B-CD-180
IMP part numberNL300-115G2-B-CD-180
IMP part numberNL300-115G2-B-CD-180
UPC879343019730
UPC879343019730
EAN5704438019607
EAN5704438019607

No videos available for this product.

What is the visibility range of the Lopolight NL300-115G2-B-CD-180?
Lopolight specifies 3 nautical mile(s) visibility with intensity >15cd for this part.
What supply voltage does the Lopolight NL300-115G2-B-CD-180 need?
Lopolight lists an operating voltage of 10-32 VDC.
Which approvals does the Lopolight NL300-115G2-B-CD-180 carry?
Lopolight lists approvals to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR. Declarations of conformity and certificates are published on lopolight.com under Support.
