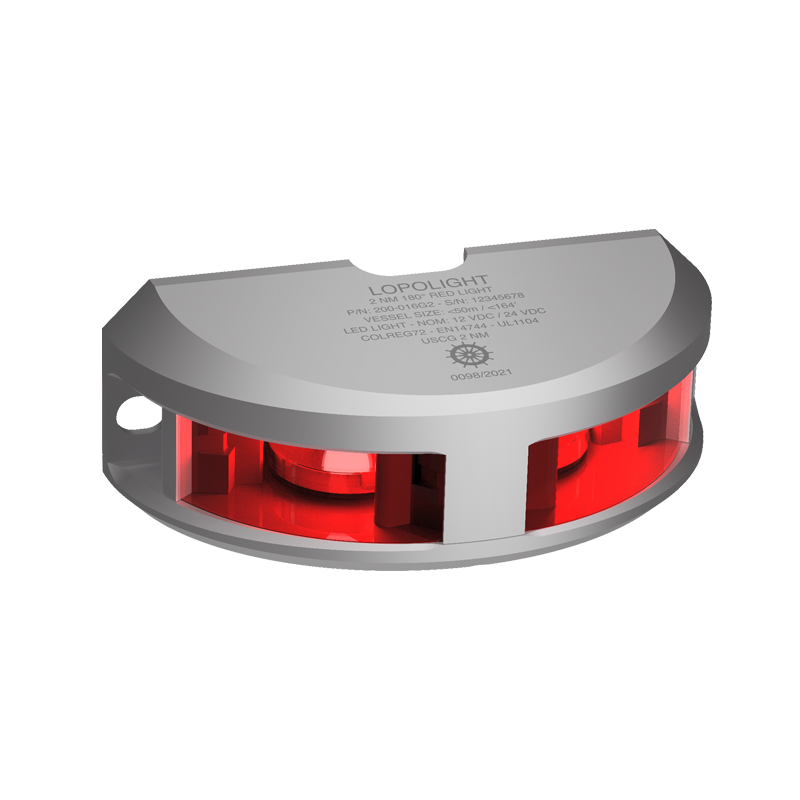

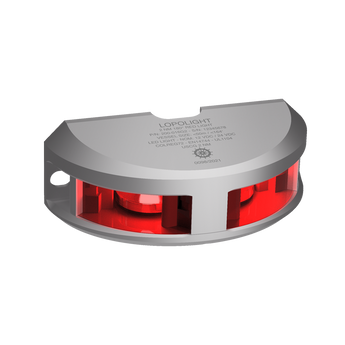

Lopolight NL300-116G2 20M 3nm 180° Red, Silver Anodized Lopolight NL300-116G2 20M 3nm 180° Red, Silver Anodized
Lopolight NL300-116G2 20M 3nm 180° Red, Silver Anodized (lopolight.com image) Lopolight NL300-116G2 20M 3nm 180° Red, Silver Anodized (lopolight.com image)
Lopolight NL300-116G2 20M 3nm 180° Red, Silver Anodized
Lopolight NL300-116G2 20M 3nm 180° Red, Silver Anodized (lopolight.com image)

Lopolight

Lopolight NL300-116G2 20M 3nm 180° Red, Silver Anodized

£816.34
Tax included. Shipping calculated at checkout.
NL300-116G2 20M
Lopolight 3nm 180° Red, Silver Anodized (NL300-116G2 20M): LED navigation light, 3 nm visibility, 10-32 VDC, IP68.

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Lopolight 3nm 180° Red, Silver Anodized (part number NL300-116G2 20M) is an LED navigation light from Lopolight of Denmark.

Key points: 3 nm visibility, 180° light arc, red light. It operates from 10-32 VDC. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, vertical mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: Over 50M.

PRODUCT DETAILS

  • 3 nm visibility

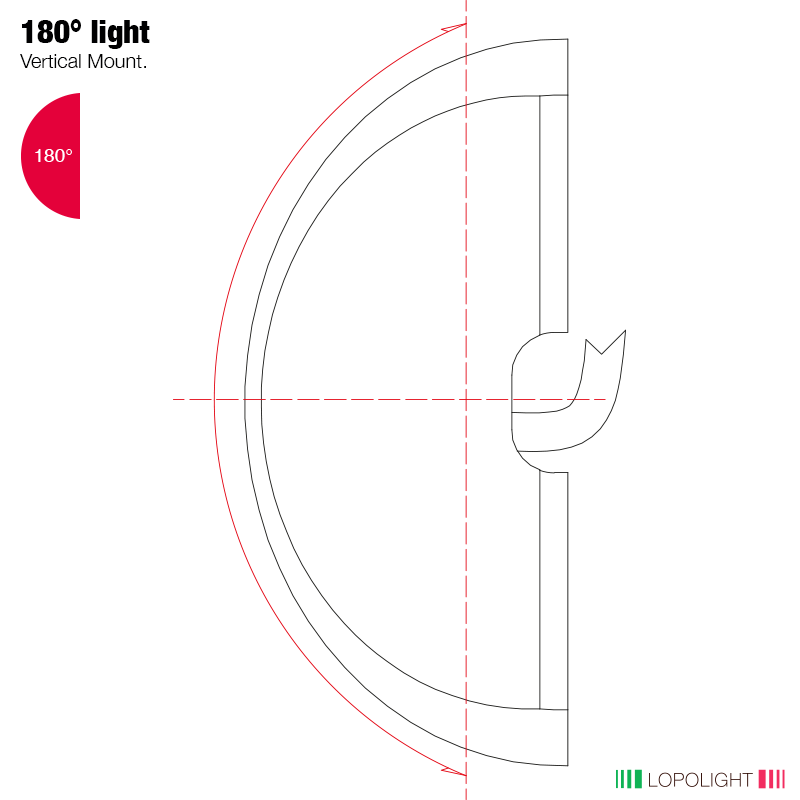

  • 180° light arc
  • 10-32 VDC operating voltage
  • IP68 protection
  • Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
  • Vertical mounting

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Performance

Visibility3nm
Visibility3nm
Light arc180°
Light arc180°
Light colourRed
Light colourRed

Electrical

Operating voltage10-32VDC
Operating voltage10-32VDC
Current consumption @ 12 VDC210 mA
Current consumption @ 12 VDC210 mA
Current consumption @ 24 VDC93 mA
Current consumption @ 24 VDC93 mA

Mechanical

MountingVertical
MountingVertical
Dimensions104 mm x 37 mm x 45 mm
Dimensions104 mm x 37 mm x 45 mm
Housing finishSilver anodized
Housing finishSilver anodized
Weight0.99 kg
Weight0.99 kg

Environmental

IP ratingIP68
IP ratingIP68
Operating temperature-25°C to 55°C
Operating temperature-25°C to 55°C

Approvals

Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR

General

Vessel size (Lopolight range)Over 50M
Vessel size (Lopolight range)Over 50M
Lopolight part number300-116G2 20M
Lopolight part number300-116G2 20M
IMP part numberNL300-116G2 20M
IMP part numberNL300-116G2 20M
UPC879343021030
UPC879343021030
EAN5704438020900
EAN5704438020900

No videos available for this product.

What is the visibility range of the Lopolight NL300-116G2 20M?
Lopolight specifies 3 nautical mile(s) visibility for this part.
What supply voltage does the Lopolight NL300-116G2 20M need?
Lopolight lists an operating voltage of 10-32 VDC.
Which approvals does the Lopolight NL300-116G2 20M carry?
Lopolight lists approvals to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR. Declarations of conformity and certificates are published on lopolight.com under Support.
