Lopolight NL300-116G2 3nm 180° Red, Vertical Mount with 0.7m Cable Lopolight NL300-116G2 3nm 180° Red, Vertical Mount with 0.7m Cable
Lopolight NL300-116G2 3nm 180° Red, Vertical Mount with 0.7m Cable (lopolight.com image) Lopolight NL300-116G2 3nm 180° Red, Vertical Mount with 0.7m Cable (lopolight.com image)
Lopolight NL300-116G2 3nm 180° Red, Vertical Mount with 0.7m Cable
Lopolight NL300-116G2 3nm 180° Red, Vertical Mount with 0.7m Cable (lopolight.com image)

Lopolight

Lopolight NL300-116G2 3nm 180° Red, Vertical Mount with 0.7m Cable

£682.79
Tax included. Shipping calculated at checkout.
NL300-116G2
Lopolight 3nm 180° Red, Vertical Mount with 0.7m Cable (NL300-116G2): LED navigation light, 3 nm visibility, 10-32 VDC, IP68.

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Lopolight 3nm 180° Red, Vertical Mount with 0.7m Cable (part number NL300-116G2) is an LED navigation light from Lopolight of Denmark.

Key points: 3 nm visibility, 180° light arc, red light. It operates from 10-32 VDC. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, vertical mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: Over 50M.

PRODUCT DETAILS

  • 3 nm visibility (>15cd)

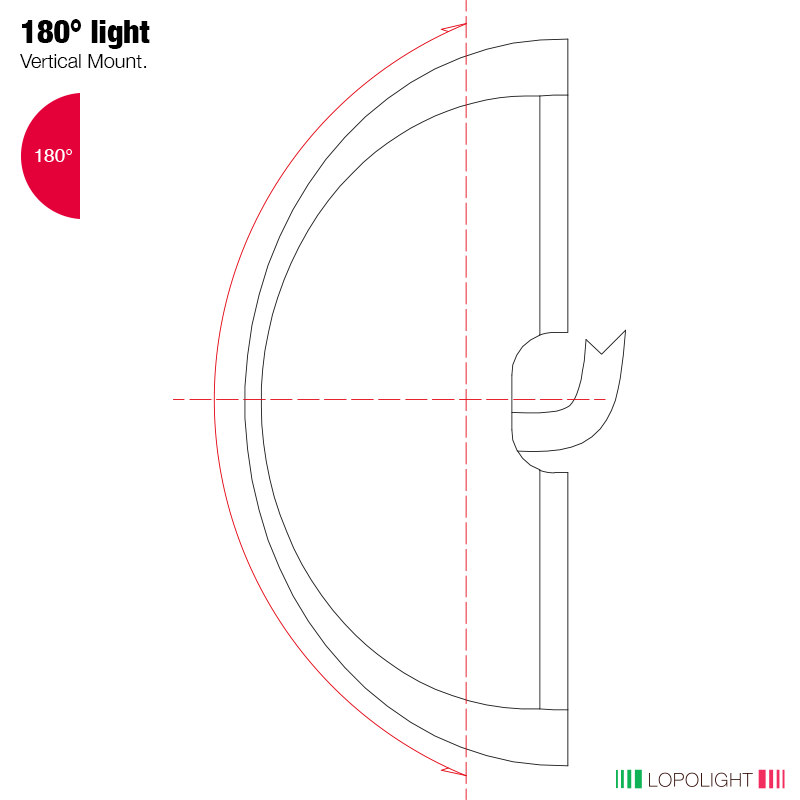

  • 180° light arc
  • 10-32 VDC operating voltage
  • IP68 protection
  • Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
  • Vertical mounting
  • Connection: 0.7m cable

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Performance

Visibility3nm
Visibility3nm
Intensity>15cd
Intensity>15cd
Light arc180°
Light arc180°
Light colourRed
Light colourRed

Electrical

Operating voltage10-32VDC
Operating voltage10-32VDC
Current consumption @ 12 VDC210 mA
Current consumption @ 12 VDC210 mA
Current consumption @ 24 VDC93 mA
Current consumption @ 24 VDC93 mA

Mechanical

MountingVertical
MountingVertical
Dimensions104 mm x 37 mm x 45 mm
Dimensions104 mm x 37 mm x 45 mm
Connection0.7m cable
Connection0.7m cable
Weight0.34 kg
Weight0.34 kg

Environmental

IP ratingIP68
IP ratingIP68
Operating temperature-25°C to 55°C
Operating temperature-25°C to 55°C

Approvals

Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR

General

Vessel size (Lopolight range)Over 50M
Vessel size (Lopolight range)Over 50M
Lopolight part number300-116G2
Lopolight part number300-116G2
IMP part numberNL300-116G2
IMP part numberNL300-116G2
UPC879343021009
UPC879343021009
EAN5704438020870
EAN5704438020870

No videos available for this product.

What is the visibility range of the Lopolight NL300-116G2?
Lopolight specifies 3 nautical mile(s) visibility with intensity >15cd for this part.
What supply voltage does the Lopolight NL300-116G2 need?
Lopolight lists an operating voltage of 10-32 VDC.
Which approvals does the Lopolight NL300-116G2 carry?
Lopolight lists approvals to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR. Declarations of conformity and certificates are published on lopolight.com under Support.
