Lopolight

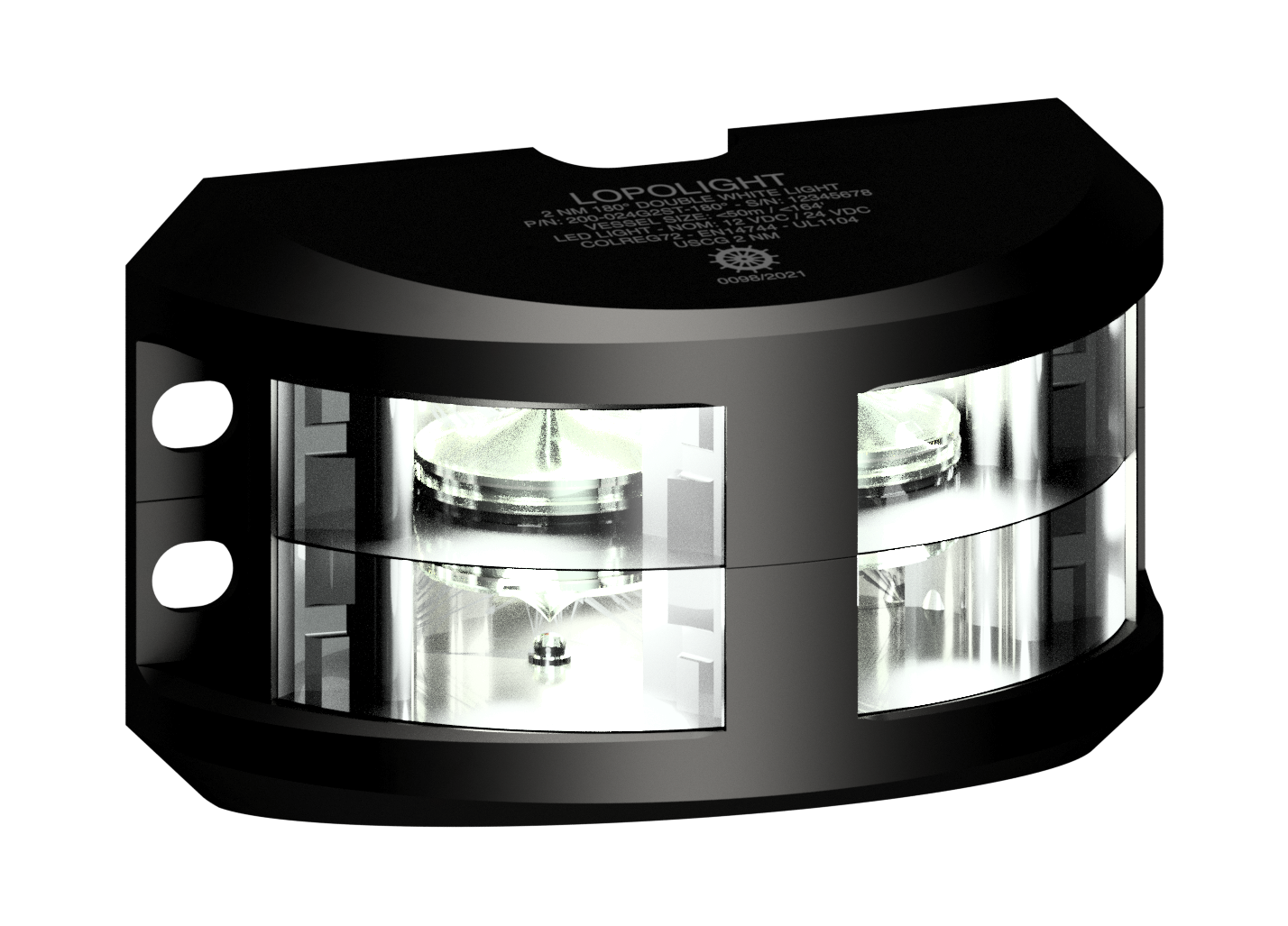

Lopolight NL300-124G2ST-B 20M 3nm 180° White Double, Black with 20m Cables

£1,386.10
Tax included. Shipping calculated at checkout.
NL300-124G2ST-B 20M
Lopolight 3nm 180° White Double, Black with 20m Cables (NL300-124G2ST-B 20M): LED navigation light, 3 nm visibility, 10-32 VDC, IP68.

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Lopolight 3nm 180° White Double, Black with 20m Cables (part number NL300-124G2ST-B 20M) is an LED navigation light from Lopolight of Denmark.

Key points: 3 nm visibility, 180° light arc, white light. It operates from 10-32 VDC. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, vertical mounting. Approved to IEC 60945 (per Lopolight). Lopolight lists this part for vessel sizes: Over 50M.

PRODUCT DETAILS

  • 3 nm visibility (>15cd)

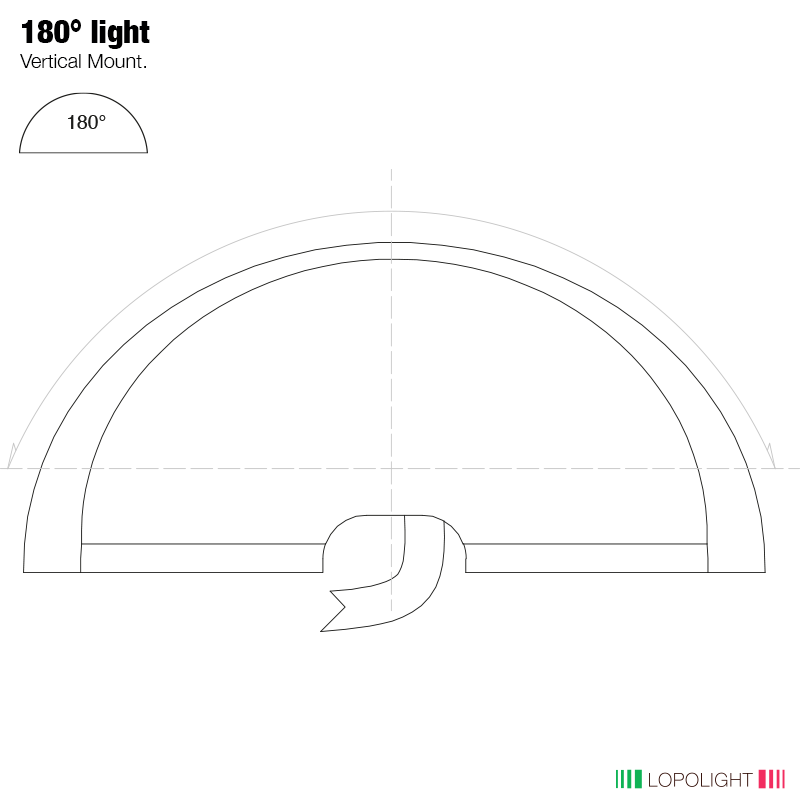

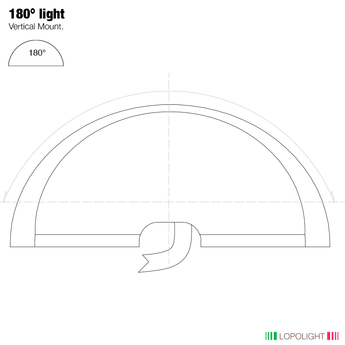

  • 180° light arc
  • 10-32 VDC operating voltage
  • IP68 protection
  • Approvals: IEC 60945
  • Vertical mounting

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Performance

Visibility3nm
Intensity>15cd
Light arc180°
Light colourWhite

Electrical

Operating voltage10-32VDC
Current consumption @ 12 VDC232 mA
Current consumption @ 24 VDC127 mA

Mechanical

MountingVertical
Housing finishBlack anodized
Weight1.97 kg

Environmental

IP ratingIP68
Operating temperature-25°C to 55°C

Approvals

Approved toIEC 60945

General

Vessel size (Lopolight range)Over 50M
Lopolight part number300-124G2ST-B 20M
IMP part numberNL300-124G2ST-B 20M
UPC879343020484
EAN5704438020351

No videos available for this product.

What is the visibility range of the Lopolight NL300-124G2ST-B 20M?
Lopolight specifies 3 nautical mile(s) visibility with intensity >15cd for this part.
What supply voltage does the Lopolight NL300-124G2ST-B 20M need?
Lopolight lists an operating voltage of 10-32 VDC.
Which approvals does the Lopolight NL300-124G2ST-B 20M carry?
Lopolight lists approvals to IEC 60945. Declarations of conformity and certificates are published on lopolight.com under Support.
