Lopolight

Lopolight NL300-124G2ST-B 3nm 180° White, Double, Black with 0.7m Cables

£1,194.90
Tax included. Shipping calculated at checkout.
NL300-124G2ST-B
Lopolight 3nm 180° White, Double, Black with 0.7m Cables (NL300-124G2ST-B): LED navigation light, 3 nm visibility, 10-32 VDC, IP68.

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

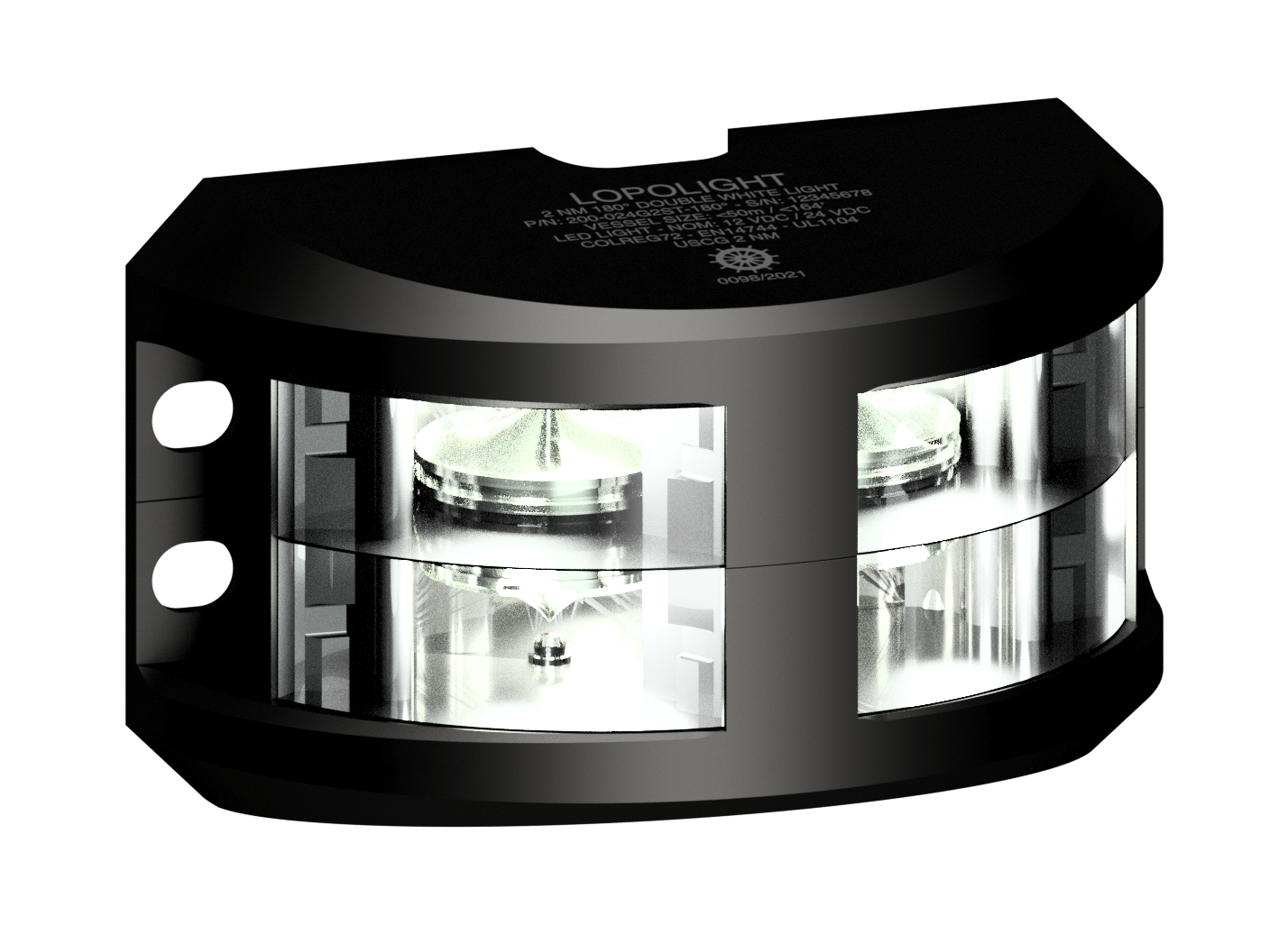

The Lopolight 3nm 180° White, Double, Black with 0.7m Cables (part number NL300-124G2ST-B) is an LED navigation light from Lopolight of Denmark.

Key points: 3 nm visibility, 180° light arc, white light. It operates from 10-32 VDC. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, vertical mounting. Approved to IEC 60945 (per Lopolight). Lopolight lists this part for vessel sizes: Over 50M.

PRODUCT DETAILS

  • 3 nm visibility (>15cd)

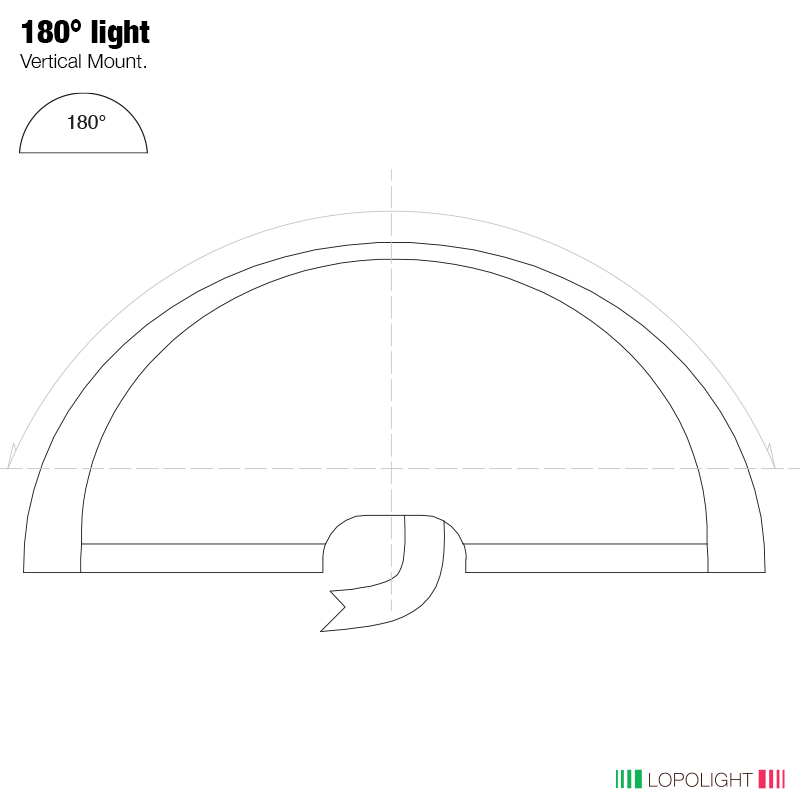

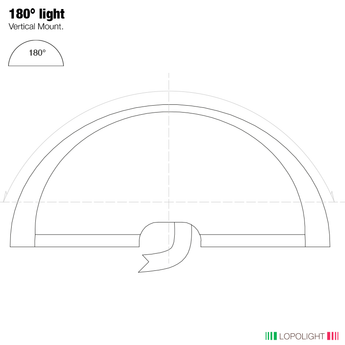

  • 180° light arc
  • 10-32 VDC operating voltage
  • IP68 protection
  • Approvals: IEC 60945
  • Vertical mounting
  • Connection: 0.7m cable

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Performance

Visibility3nm
Intensity>15cd
Light arc180°
Light colourWhite

Electrical

Operating voltage10-32VDC
Current consumption @ 12 VDC232 mA
Current consumption @ 24 VDC127 mA

Mechanical

MountingVertical
Connection0.7m cable
Housing finishBlack anodized
Weight0.54 kg

Environmental

IP ratingIP68
Operating temperature-25°C to 55°C

Approvals

Approved toIEC 60945

General

Vessel size (Lopolight range)Over 50M
Lopolight part number300-124G2ST-B
IMP part numberNL300-124G2ST-B
UPC879343021610
EAN5704438021488

No videos available for this product.

What is the visibility range of the Lopolight NL300-124G2ST-B?
Lopolight specifies 3 nautical mile(s) visibility with intensity >15cd for this part.
What supply voltage does the Lopolight NL300-124G2ST-B need?
Lopolight lists an operating voltage of 10-32 VDC.
Which approvals does the Lopolight NL300-124G2ST-B carry?
Lopolight lists approvals to IEC 60945. Declarations of conformity and certificates are published on lopolight.com under Support.
