Lopolight
Lopolight NL300-137-CD 6nm Masthead, Silver Anodized
£2,017.66
/
Tax included.
Shipping calculated at checkout.
NL300-137-CD
Lopolight 6nm Masthead, Silver Anodized (NL300-137-CD): LED navigation light, 6 nm visibility, 20-32 VDC, IP68.
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

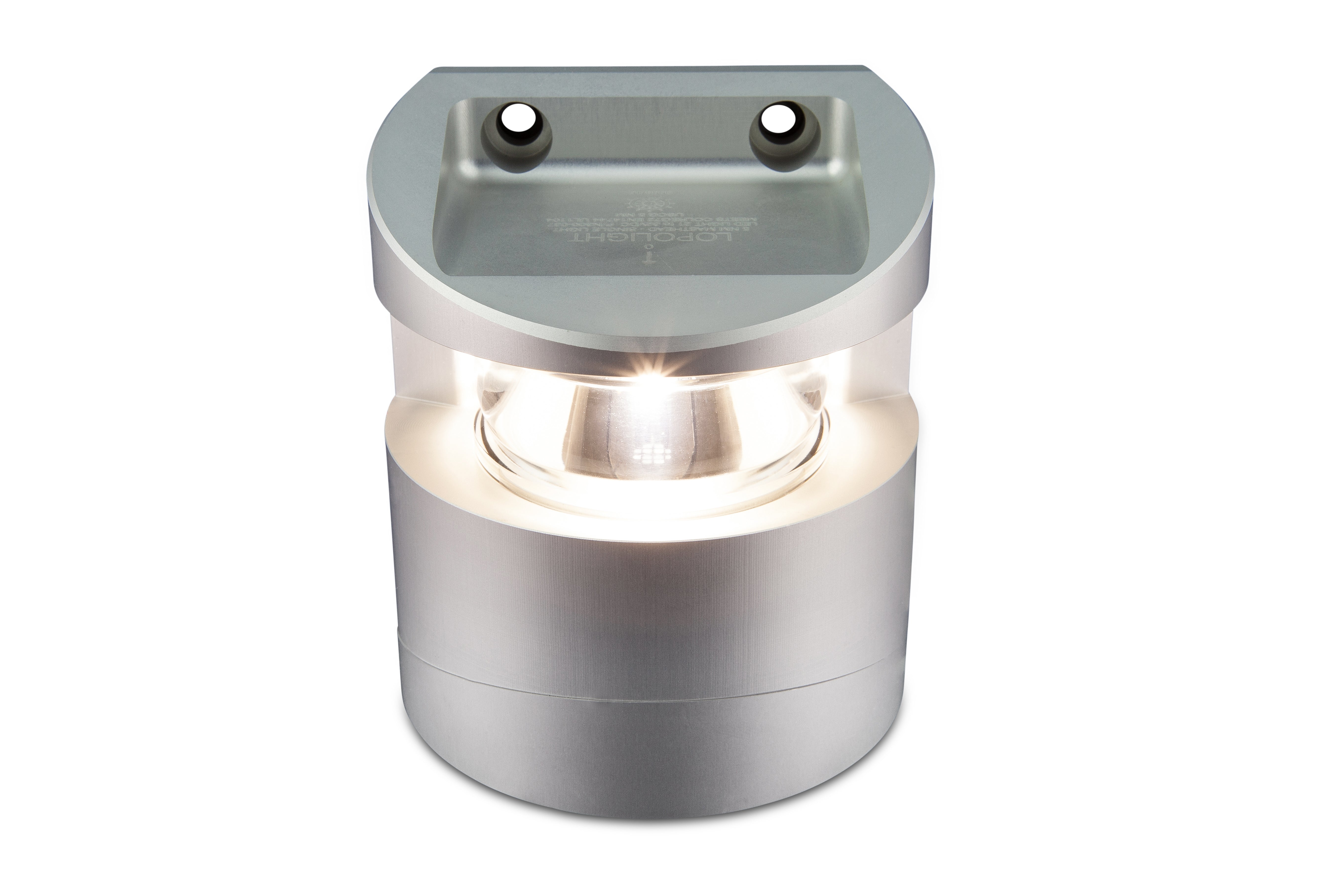

The Lopolight 6nm Masthead, Silver Anodized (part number NL300-137-CD) is an LED navigation light from Lopolight of Denmark.
Key points: 6 nm visibility. It operates from 20-32 VDC and draws 13 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, vertical mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: Over 50M.
PRODUCT DETAILS
- 6 nm visibility (>94cd)
- 20-32 VDC operating voltage
- IP68 protection
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Vertical mounting
- Connection: 0.7m cable
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Performance
| Visibility | 6nm |
| Visibility | 6nm |
| Intensity | >94cd |
| Intensity | >94cd |
Electrical
| Operating voltage | 20-32VDC |
| Operating voltage | 20-32VDC |
| Power draw (W) | 13 |
| Power draw (W) | 13 |
| Current consumption @ 12 VDC | 0 mA |
| Current consumption @ 12 VDC | 0 mA |
| Current consumption @ 24 VDC | 580 mA |
| Current consumption @ 24 VDC | 580 mA |
| Minimum feed wire gauge | 0.5mm2 AWG22 |
| Minimum feed wire gauge | 0.5mm2 AWG22 |
Mechanical
| Mounting | Vertical |
| Mounting | Vertical |
| Dimensions | 107 x 92,5 x 74 mm |
| Dimensions | 107 x 92,5 x 74 mm |
| Connection | 0.7m cable |
| Connection | 0.7m cable |
| Materials | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Materials | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Housing finish | Silver anodized |
| Housing finish | Silver anodized |
| Weight | 1.06 kg |
| Weight | 1.06 kg |
Environmental
| IP rating | IP68 |
| IP rating | IP68 |
| Operating temperature | -25°C to 55°C |
| Operating temperature | -25°C to 55°C |
Approvals
| Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
| Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
General
| Vessel size (Lopolight range) | Over 50M |
| Vessel size (Lopolight range) | Over 50M |
| Lopolight part number | 300-137-CD |
| Lopolight part number | 300-137-CD |
| IMP part number | NL300-137-CD |
| IMP part number | NL300-137-CD |
| UPC | 879343015183 |
| UPC | 879343015183 |
| EAN | 5704438015180 |
| EAN | 5704438015180 |
No videos available for this product.
What is the visibility range of the Lopolight NL300-137-CD?
Lopolight specifies 6 nautical mile(s) visibility with intensity >94cd for this part.
What supply voltage does the Lopolight NL300-137-CD need?
Lopolight lists an operating voltage of 20-32 VDC with a power draw of 13 W.
Which approvals does the Lopolight NL300-137-CD carry?
Lopolight lists approvals to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR. Declarations of conformity and certificates are published on lopolight.com under Support.
