Lopolight NL300-138+300-112G2-B 225° Masthead Double Light with Single Anchor, CD Alu Base, Black, Anchor Light

£4,191.83
Tax included. Shipping calculated at checkout.
NL300-138+300-112G2-B
Lopolight 225° Masthead Double Light with Single Anchor, CD Alu Base, Black, Anchor Light (NL300-138+300-112G2-B): LED navigation light, 3 nm visibility, 20-32 VDC, IP68.

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

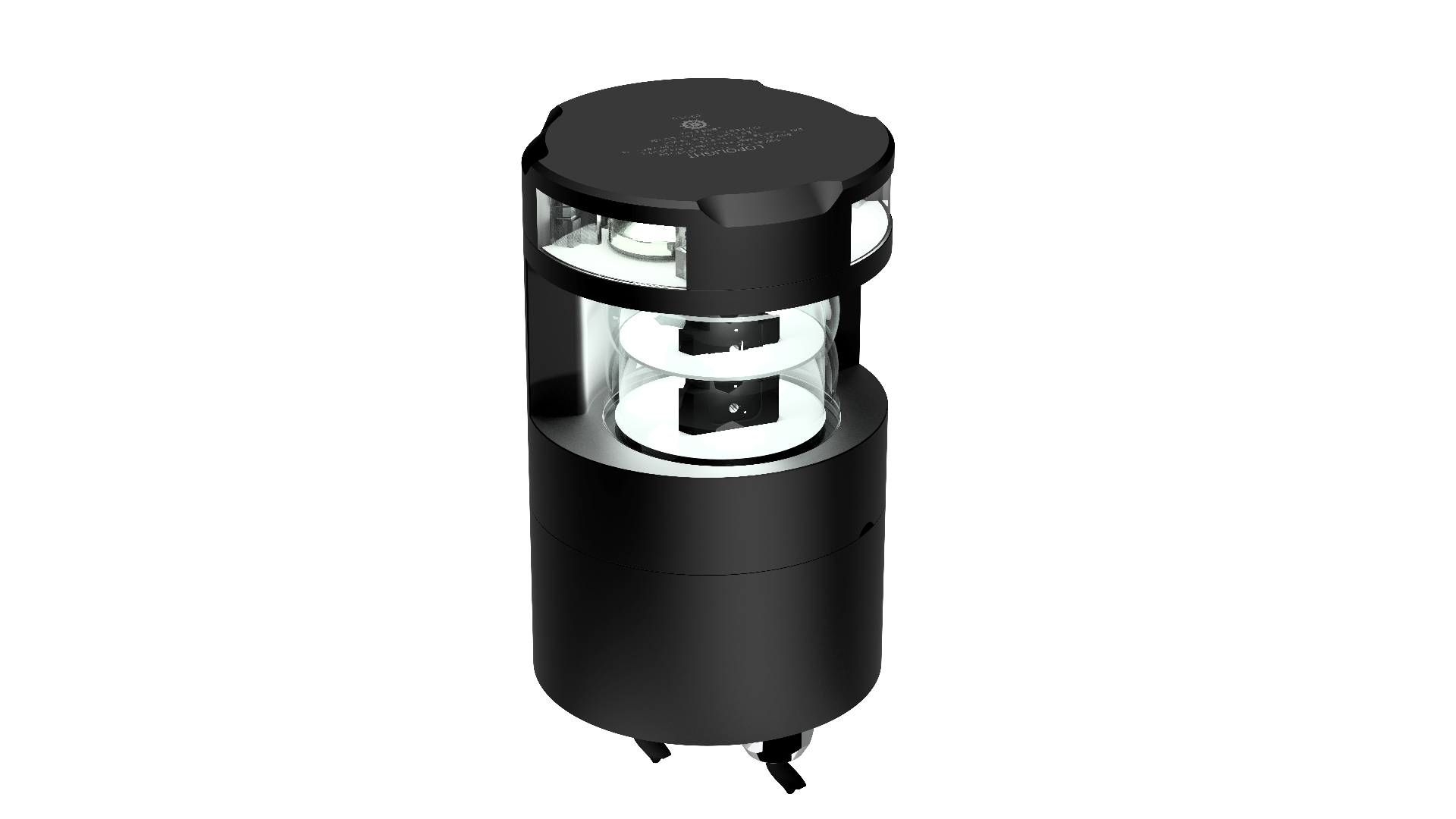

The Lopolight 225° Masthead Double Light with Single Anchor, CD Alu Base, Black, Anchor Light (part number NL300-138+300-112G2-B) is an LED navigation light from Lopolight of Denmark.

Key points: 3 nm visibility, 225° light arc. It operates from 20-32 VDC. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: Over 50M.

PRODUCT DETAILS

  • 3 nm visibility (>94cd)

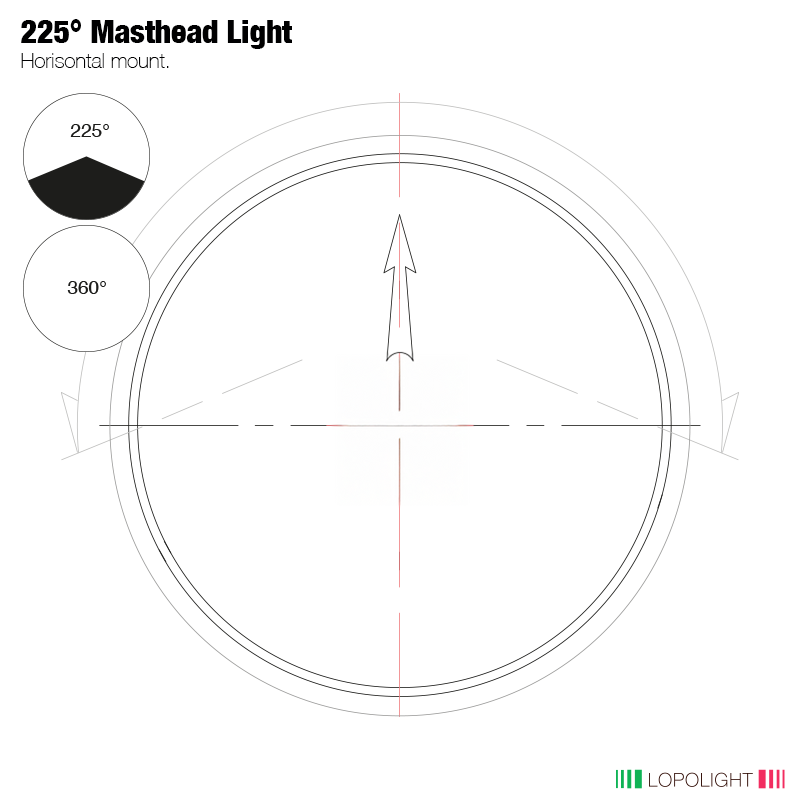

  • 225° light arc
  • 20-32 VDC operating voltage
  • IP68 protection
  • Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
  • Connection: Plug connector

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Performance

Visibility3nm
Visibility3nm
Intensity>94cd
Intensity>94cd
Light arc225°
Light arc225°

Electrical

Operating voltage20-32VDC
Operating voltage20-32VDC
Current consumption @ 12 VDC0 mA
Current consumption @ 12 VDC0 mA
Current consumption @ 24 VDC580 mA
Current consumption @ 24 VDC580 mA

Mechanical

DimensionsØ92,5mm x 147mm
DimensionsØ92,5mm x 147mm
ConnectionPlug connector
ConnectionPlug connector
Housing finishBlack anodized
Housing finishBlack anodized
Weight1.45 kg
Weight1.45 kg

Environmental

IP ratingIP68
IP ratingIP68
Operating temperature-25°C to 55°C
Operating temperature-25°C to 55°C

Approvals

Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR

General

Vessel size (Lopolight range)Over 50M
Vessel size (Lopolight range)Over 50M
Lopolight part number300-138+300-112G2-B
Lopolight part number300-138+300-112G2-B
IMP part numberNL300-138+300-112G2-B
IMP part numberNL300-138+300-112G2-B
UPC879343019792
UPC879343019792
EAN5704438019669
EAN5704438019669

No videos available for this product.

What is the visibility range of the Lopolight NL300-138+300-112G2-B?
Lopolight specifies 3 nautical mile(s) visibility with intensity >94cd for this part.
What supply voltage does the Lopolight NL300-138+300-112G2-B need?
Lopolight lists an operating voltage of 20-32 VDC.
Which approvals does the Lopolight NL300-138+300-112G2-B carry?
Lopolight lists approvals to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR. Declarations of conformity and certificates are published on lopolight.com under Support.
