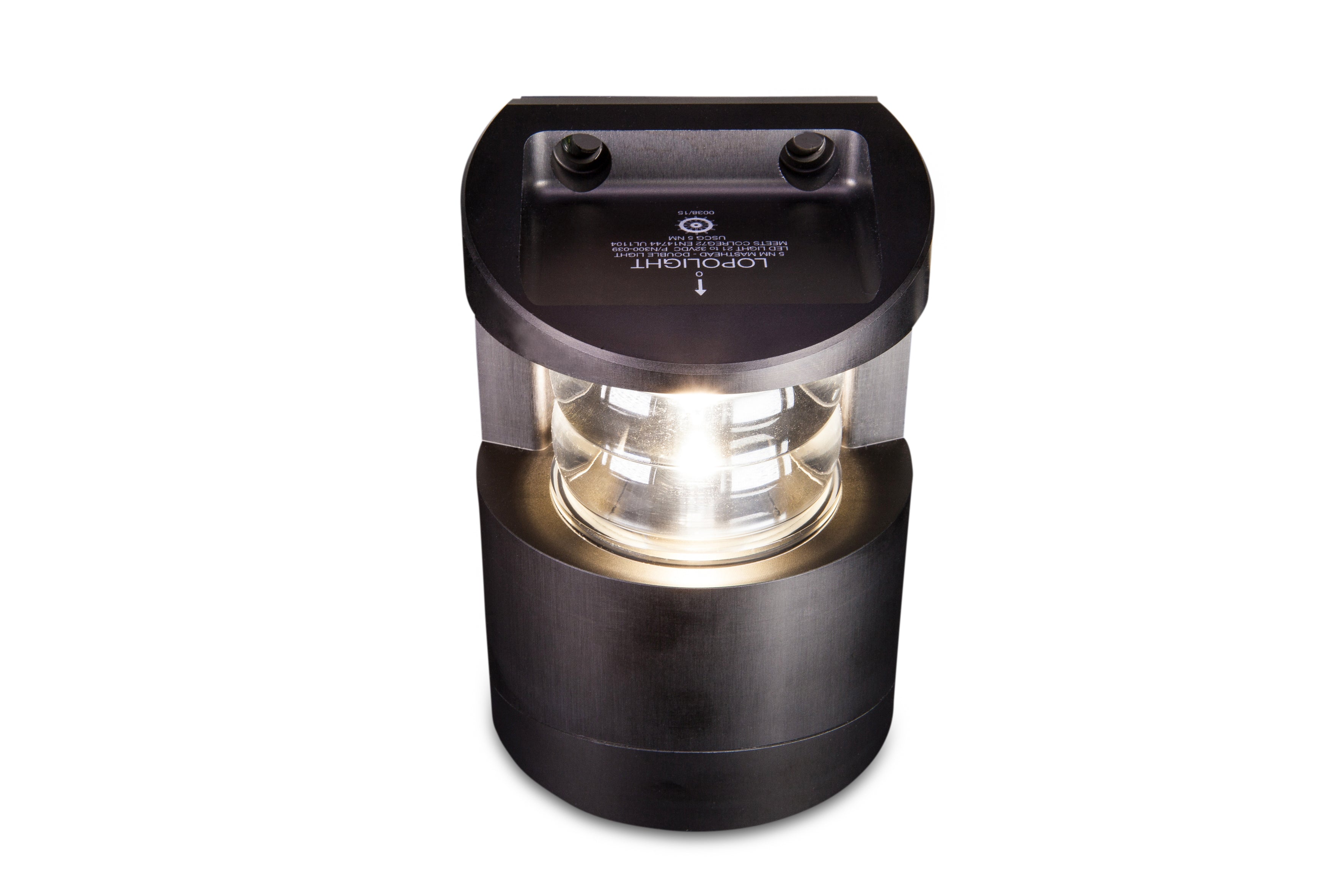

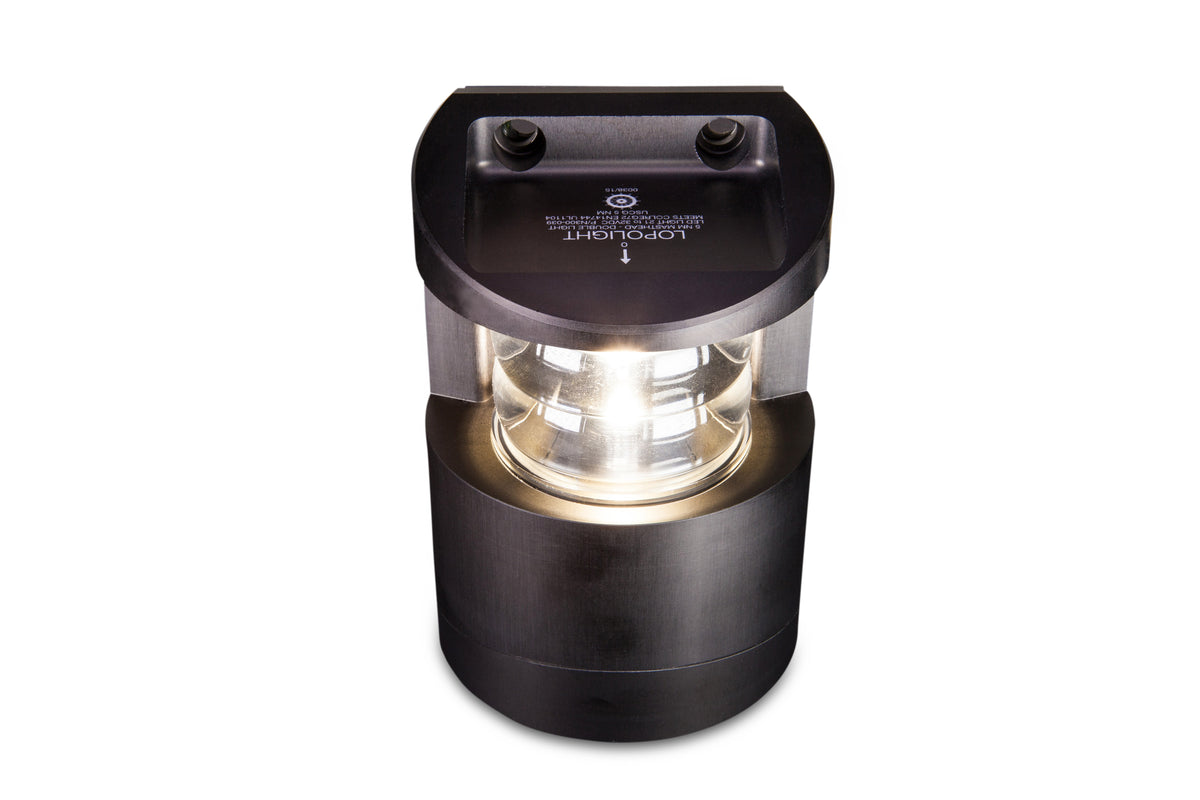

Lopolight NL300-139-B-15M 6nm Masthead, Double, Black Anodized
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Lopolight 6nm Masthead, Double, Black Anodized (part number NL300-139-B-15M) is an LED navigation light from Lopolight of Denmark.
Key points: 6 nm visibility. It operates from 20-32 VDC and draws 13 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, vertical mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: Over 50M.
PRODUCT DETAILS
- 6 nm visibility (>94cd)
- 20-32 VDC operating voltage
- IP68 protection
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Vertical mounting
- Connection: 15m cable
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Performance
| Visibility | 6nm |
| Visibility | 6nm |
| Intensity | >94cd |
| Intensity | >94cd |
Electrical
| Operating voltage | 20-32VDC |
| Operating voltage | 20-32VDC |
| Power draw (W) | 13 |
| Power draw (W) | 13 |
| Current consumption @ 12 VDC | 0 mA |
| Current consumption @ 12 VDC | 0 mA |
| Current consumption @ 24 VDC | 580 mA |
| Current consumption @ 24 VDC | 580 mA |
| Minimum feed wire gauge | 0.5mm2 AWG22 |
| Minimum feed wire gauge | 0.5mm2 AWG22 |
Mechanical
| Mounting | Vertical |
| Mounting | Vertical |
| Dimensions | Ø92,5mm x 135mm |
| Dimensions | Ø92,5mm x 135mm |
| Connection | 15m cable |
| Connection | 15m cable |
| Materials | Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Materials | Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Housing finish | Black anodized |
| Housing finish | Black anodized |
| Weight | 2.4 kg |
| Weight | 2.4 kg |
Environmental
| IP rating | IP68 |
| IP rating | IP68 |
| Operating temperature | -25°C to 55°C |
| Operating temperature | -25°C to 55°C |
Approvals
| Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
| Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
General
| Vessel size (Lopolight range) | Over 50M |
| Vessel size (Lopolight range) | Over 50M |
| Lopolight part number | 300-139-B-15M |
| Lopolight part number | 300-139-B-15M |
| IMP part number | NL300-139-B-15M |
| IMP part number | NL300-139-B-15M |
| UPC | 879343004620 |
| UPC | 879343004620 |
| EAN | 5704438004627 |
| EAN | 5704438004627 |
