Lopolight NL301-001 2nm 112.5° Starboard Sidelight, Vertical Mount with 2.5m Cable Lopolight NL301-001 2nm 112.5° Starboard Sidelight, Vertical Mount with 2.5m Cable
Lopolight NL301-001 2nm 112.5° Starboard Sidelight, Vertical Mount with 2.5m Cable (lopolight.com image) Lopolight NL301-001 2nm 112.5° Starboard Sidelight, Vertical Mount with 2.5m Cable (lopolight.com image)
Lopolight NL301-001 2nm 112.5° Starboard Sidelight, Vertical Mount with 2.5m Cable
Lopolight NL301-001 2nm 112.5° Starboard Sidelight, Vertical Mount with 2.5m Cable (lopolight.com image)

Lopolight

Lopolight NL301-001 2nm 112.5° Starboard Sidelight, Vertical Mount with 2.5m Cable

£295.36
Tax included. Shipping calculated at checkout.
NL301-001
Lopolight 2nm 112.5° Starboard Sidelight, Vertical Mount with 2.5m Cable (NL301-001): LED navigation light, 2 nm visibility, 10-32 VDC, IP68.

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

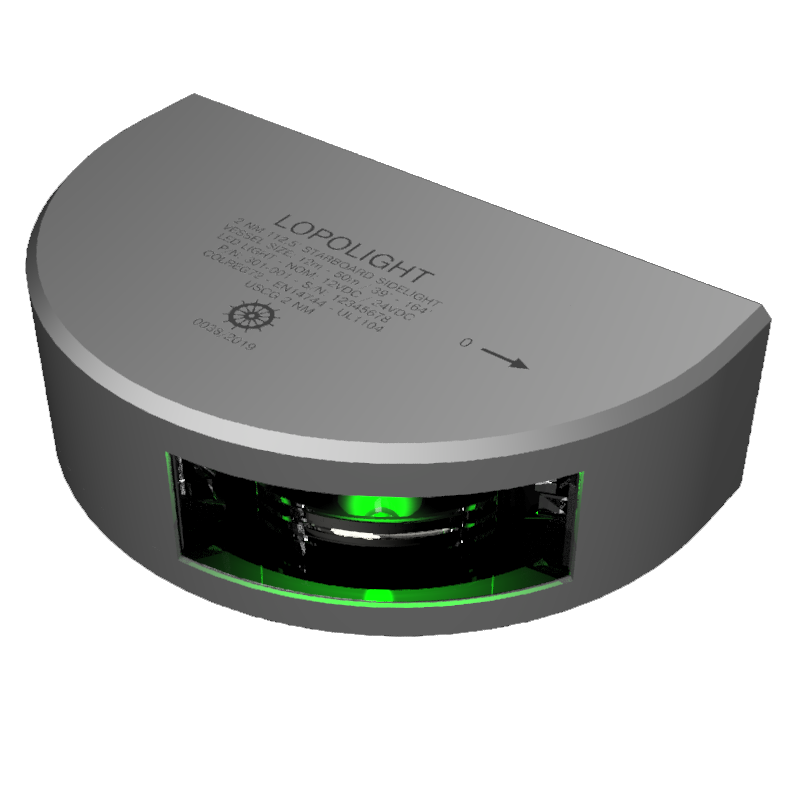

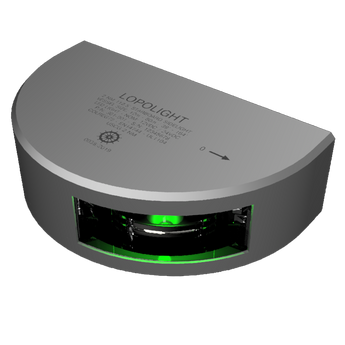

The Lopolight 2nm 112.5° Starboard Sidelight, Vertical Mount with 2.5m Cable (part number NL301-001) is an LED navigation light from Lopolight of Denmark.

Key points: 2 nm visibility, 112.5° light arc. It operates from 10-32 VDC and draws 1.4 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, vertical mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: 12-20M, 20-50M.

Supplied with: 1 Navigation light, precabled with 2.5 meter shielded marine grade cable, 2 Mounting screws (M6 * 8 mm), Installation guide.

PRODUCT DETAILS

  • 2 nm visibility (>5.4cd)

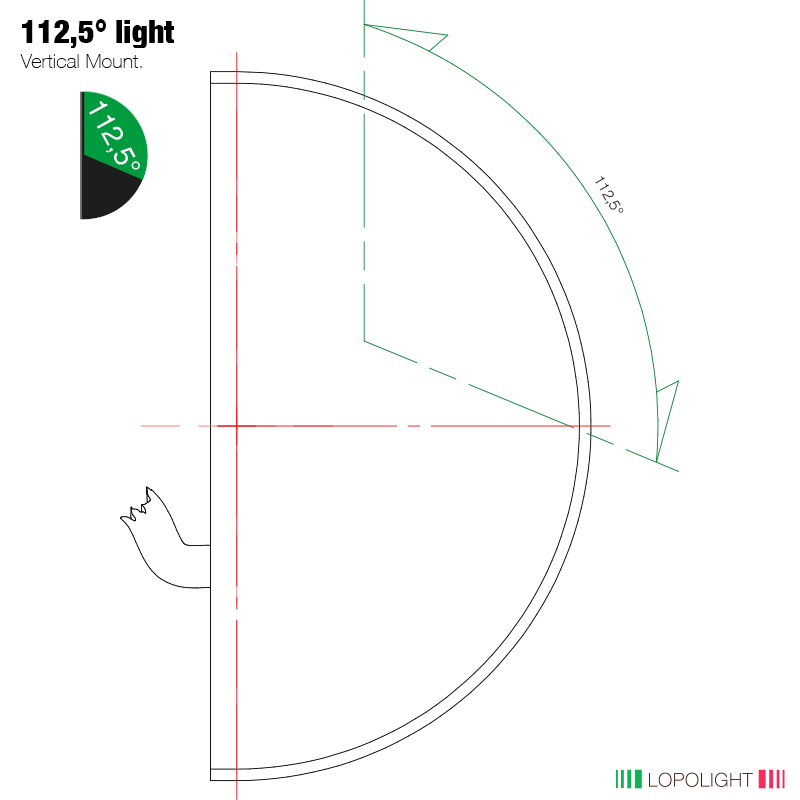

  • 112.5° light arc
  • 10-32 VDC operating voltage
  • IP68 protection
  • Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
  • Vertical mounting
  • Connection: 2.5m cable
  • 1 Navigation light, precabled with 2.5 meter shielded marine grade cable, 2 Mounting screws (M6 * 8 mm), Installation guide

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Performance

Visibility2nm
Intensity>5.4cd
Light arc112.5°

Electrical

Operating voltage10-32VDC
Power draw (W)1.4
Current consumption @ 12 VDC110 mA
Current consumption @ 24 VDC60 mA
Minimum feed wire gauge0.5mm2 AWG22

Mechanical

MountingVertical
Dimensions92,5 x 28 x 49,7 mm
Connection2.5m cable
MaterialsSilver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Weight0.38 kg

Environmental

IP ratingIP68
Operating temperature-25°C to 55°C

Approvals

Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR

General

Vessel size (Lopolight range)12-20M,20-50M
Lopolight part number301-001
IMP part numberNL301-001
UPC879343009083
EAN5704438009080

No videos available for this product.

What is the visibility range of the Lopolight NL301-001?
Lopolight specifies 2 nautical mile(s) visibility with intensity >5.4cd for this part.
What supply voltage does the Lopolight NL301-001 need?
Lopolight lists an operating voltage of 10-32 VDC with a power draw of 1.4 W.
Which approvals does the Lopolight NL301-001 carry?
Lopolight lists approvals to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR. Declarations of conformity and certificates are published on lopolight.com under Support.
