Lopolight NL301-002-B 2nm 112.5° Port Sidelight, Vertical Mount, Black with 2.5m Cable Lopolight NL301-002-B 2nm 112.5° Port Sidelight, Vertical Mount, Black with 2.5m Cable
Lopolight NL301-002-B 2nm 112.5° Port Sidelight, Vertical Mount, Black with 2.5m Cable (lopolight.com image) Lopolight NL301-002-B 2nm 112.5° Port Sidelight, Vertical Mount, Black with 2.5m Cable (lopolight.com image)
Lopolight NL301-002-B 2nm 112.5° Port Sidelight, Vertical Mount, Black with 2.5m Cable
Lopolight NL301-002-B 2nm 112.5° Port Sidelight, Vertical Mount, Black with 2.5m Cable (lopolight.com image)

Lopolight

Lopolight NL301-002-B 2nm 112.5° Port Sidelight, Vertical Mount, Black with 2.5m Cable

£295.36
Tax included. Shipping calculated at checkout.
NL301-002-B
Lopolight 2nm 112.5° Port Sidelight, Vertical Mount, Black with 2.5m Cable (NL301-002-B): LED navigation light, 2 nm visibility, 10-32 VDC, IP68.

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

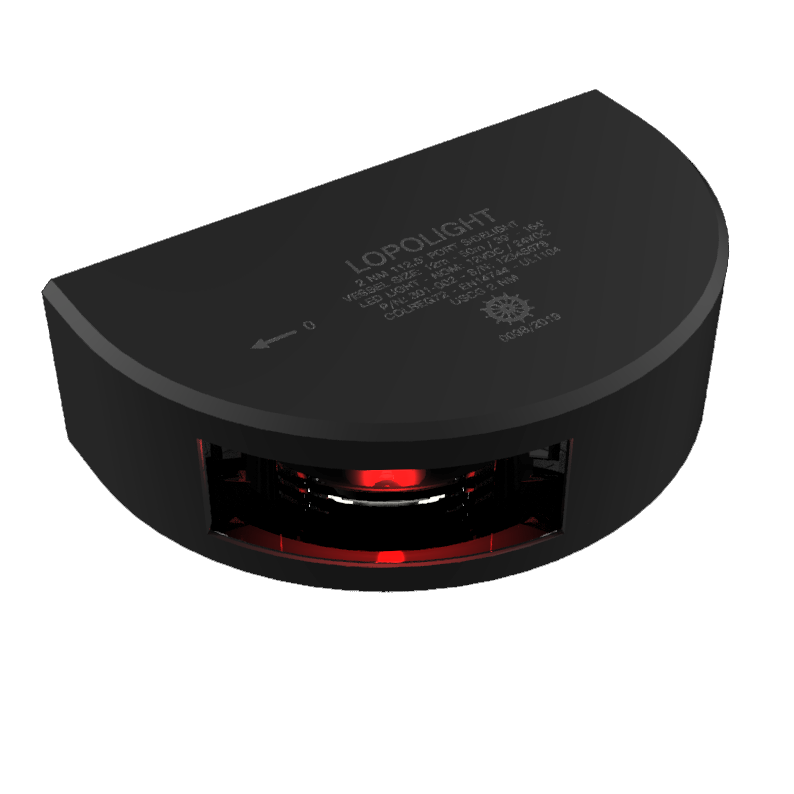

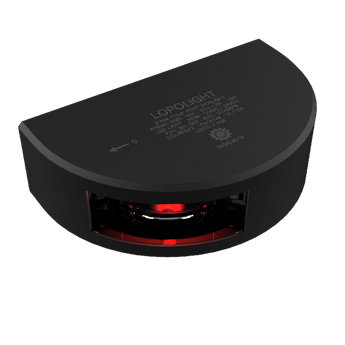

The Lopolight 2nm 112.5° Port Sidelight, Vertical Mount, Black with 2.5m Cable (part number NL301-002-B) is an LED navigation light from Lopolight of Denmark.

Key points: 2 nm visibility, 112.5° light arc. It operates from 10-32 VDC and draws 1.2 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, vertical mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: 12-20M, 20-50M.

Supplied with: 1 Navigation light, precabled with 2.5 meter shielded marine grade cable, 2 Mounting screws (M6 * 8 mm), Installation guide.

PRODUCT DETAILS

  • 2 nm visibility (>5.4cd)

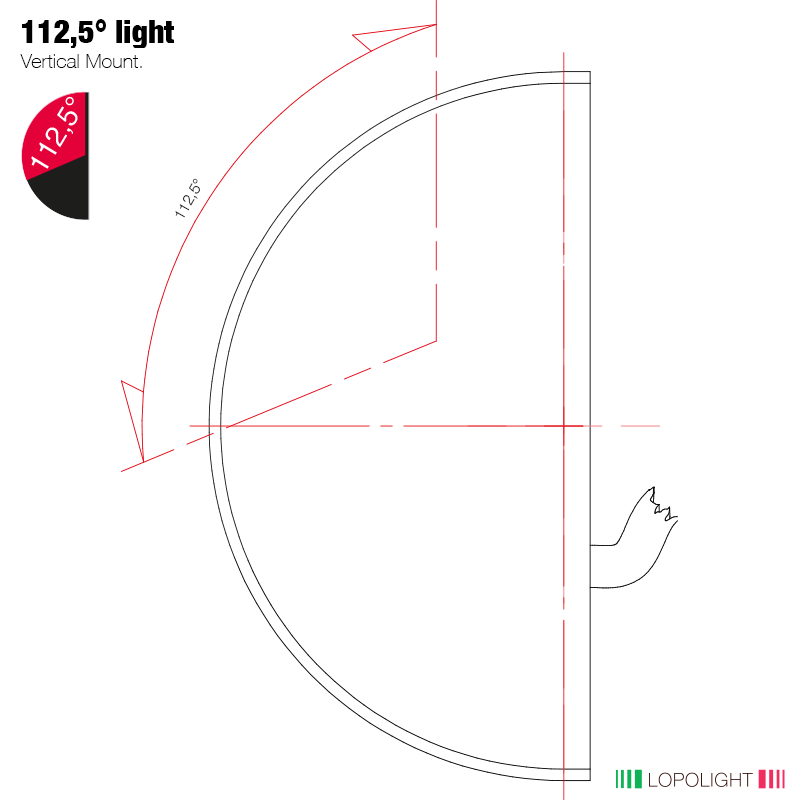

  • 112.5° light arc
  • 10-32 VDC operating voltage
  • IP68 protection
  • Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
  • Vertical mounting
  • Connection: 2.5m cable
  • 1 Navigation light, precabled with 2.5 meter shielded marine grade cable, 2 Mounting screws (M6 * 8 mm), Installation guide

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

No specifications available for this product.

No videos available for this product.

What is the visibility range of the Lopolight NL301-002-B?
Lopolight specifies 2 nautical mile(s) visibility with intensity >5.4cd for this part.
What supply voltage does the Lopolight NL301-002-B need?
Lopolight lists an operating voltage of 10-32 VDC with a power draw of 1.2 W.
Which approvals does the Lopolight NL301-002-B carry?
Lopolight lists approvals to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR. Declarations of conformity and certificates are published on lopolight.com under Support.
