Lopolight

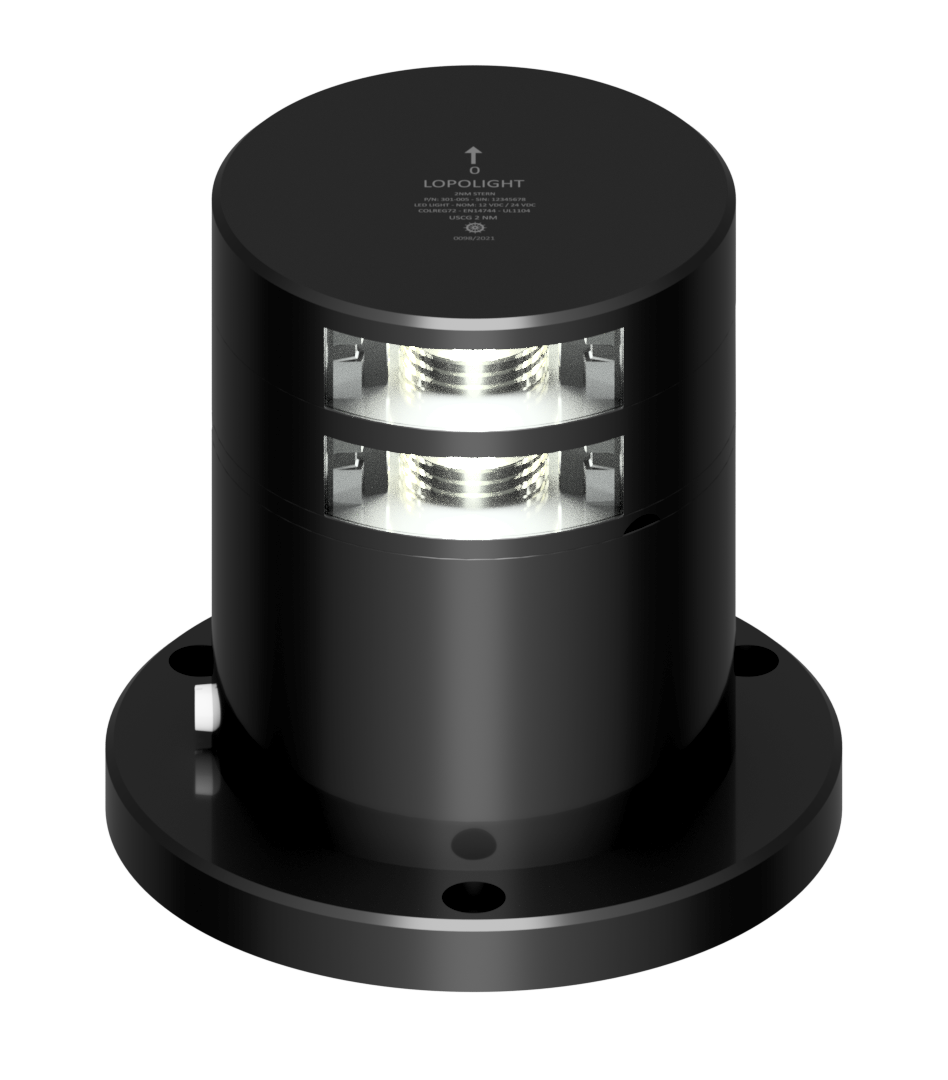

Lopolight NL301-005ST-B-RPM-I 2nm 135° White, Double Stern, Dimm, De-ice, Black

£1,669.21
Tax included. Shipping calculated at checkout.
NL301-005ST-B-RPM-I
Lopolight 2nm 135° White, Double Stern, Dimm, De-ice, Black (NL301-005ST-B-RPM-I): LED navigation light, 2 nm visibility, 20-32 VDC, IP68.

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Lopolight 2nm 135° White, Double Stern, Dimm, De-ice, Black (part number NL301-005ST-B-RPM-I) is an LED navigation light from Lopolight of Denmark.

Key points: 2 nm visibility, 135° light arc, white light. It operates from 20-32 VDC and draws 1.3 W. Lopolight lists it as IP68 rated, operating temperature -60°C to 55°C, horizontal mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: Under 12M, 12-20M, 20-50M.

PRODUCT DETAILS

  • 2 nm visibility (>5.4cd)
  • 135° light arc
  • 20-32 VDC operating voltage
  • IP68 protection
  • Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
  • Horizontal mounting
  • Connection: Plug connector

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Performance

Visibility2nm
Intensity>5.4cd
Light arc135°
Light colourWhite

Electrical

Operating voltage20-32VDC
Power draw (W)1.3
Current consumption @ 12 VDC110 mA
Current consumption @ 24 VDC50 mA
Minimum feed wire gauge1.5mm2 AWG18

Mechanical

MountingHorizontal
DimensionsØ92,5mm x 96,5mm
ConnectionPlug connector
MaterialsBlack hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Housing finishBlack anodized
Weight1 kg

Environmental

IP ratingIP68
Operating temperature-60°C to 55°C

Approvals

Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR

General

Vessel size (Lopolight range)Under 12M,12-20M,20-50M
Special attributesIce-class Defroster included,Dimmable (NAVY/SAR only)
Lopolight part number301-005ST-B-RPM-I
IMP part numberNL301-005ST-B-RPM-I
UPC879343014889
EAN5704438014886

No videos available for this product.

What is the visibility range of the Lopolight NL301-005ST-B-RPM-I?
Lopolight specifies 2 nautical mile(s) visibility with intensity >5.4cd for this part.
What supply voltage does the Lopolight NL301-005ST-B-RPM-I need?
Lopolight lists an operating voltage of 20-32 VDC with a power draw of 1.3 W.
Which approvals does the Lopolight NL301-005ST-B-RPM-I carry?
Lopolight lists approvals to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR. Declarations of conformity and certificates are published on lopolight.com under Support.
