Lopolight NL301-006 6M 2nm 135° Stern Light with 6m Cable, Black Lopolight NL301-006 6M 2nm 135° Stern Light with 6m Cable, Black
Lopolight NL301-006 6M 2nm 135° Stern Light with 6m Cable, Black (lopolight.com image) Lopolight NL301-006 6M 2nm 135° Stern Light with 6m Cable, Black (lopolight.com image)
Lopolight NL301-006 6M 2nm 135° Stern Light with 6m Cable, Black
Lopolight NL301-006 6M 2nm 135° Stern Light with 6m Cable, Black (lopolight.com image)

Lopolight

Lopolight NL301-006 6M 2nm 135° Stern Light with 6m Cable, Black

£421.14
Tax included. Shipping calculated at checkout.
NL301-006 6M
Lopolight 2nm 135° Stern Light with 6m Cable, Black (NL301-006 6M): LED navigation light, 2 nm visibility, 10-32 VDC, IP68.

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

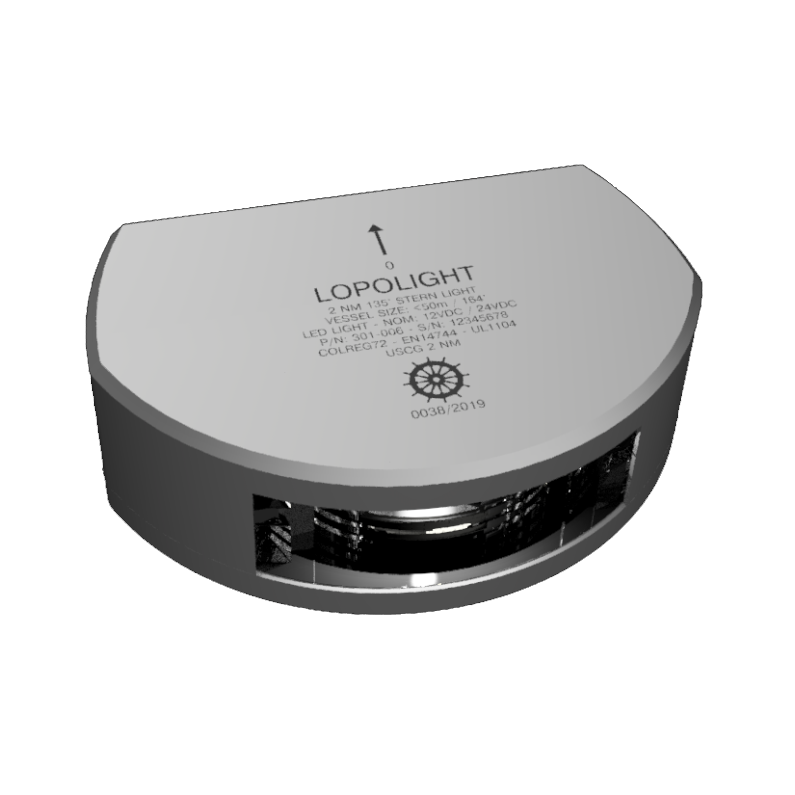

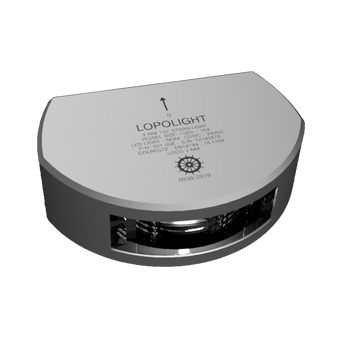

The Lopolight 2nm 135° Stern Light with 6m Cable, Black (part number NL301-006 6M) is an LED navigation light from Lopolight of Denmark.

Key points: 2 nm visibility, 135° light arc. It operates from 10-32 VDC and draws 1.3 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, vertical mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: Under 12M, 12-20M, 20-50M.

Supplied with: 1 Navigation light, 2 Mounting screws (M6 * 8 mm), Installation guide.

PRODUCT DETAILS

  • 2 nm visibility (>5.4cd)

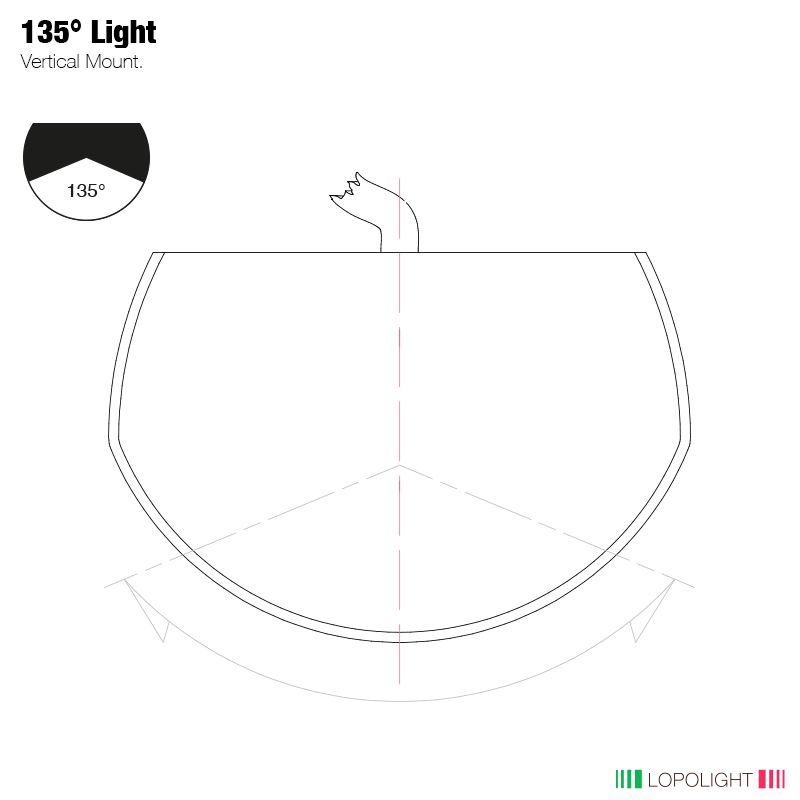

  • 135° light arc
  • 10-32 VDC operating voltage
  • IP68 protection
  • Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
  • Vertical mounting
  • Connection: 6m cable
  • 1 Navigation light, 2 Mounting screws (M6 * 8 mm), Installation guide

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Performance

Visibility2nm
Intensity>5.4cd
Light arc135°

Electrical

Operating voltage10-32VDC
Power draw (W)1.3
Current consumption @ 12 VDC110 mA
Current consumption @ 24 VDC50 mA
Minimum feed wire gauge0.5mm2 AWG22

Mechanical

MountingVertical
Dimensions86,2 x 28 x 57,75 mm
Connection6m cable
MaterialsSilver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Housing finishBlack anodized
Weight0.66 kg

Environmental

IP ratingIP68
Operating temperature-25°C to 55°C

Approvals

Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR

General

Vessel size (Lopolight range)Under 12M,12-20M,20-50M
Lopolight part number301-006 6M
IMP part numberNL301-006 6M
UPC879343012908
EAN5704438012905

No videos available for this product.

What is the visibility range of the Lopolight NL301-006 6M?
Lopolight specifies 2 nautical mile(s) visibility with intensity >5.4cd for this part.
What supply voltage does the Lopolight NL301-006 6M need?
Lopolight lists an operating voltage of 10-32 VDC with a power draw of 1.3 W.
Which approvals does the Lopolight NL301-006 6M carry?
Lopolight lists approvals to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR. Declarations of conformity and certificates are published on lopolight.com under Support.
