Lopolight

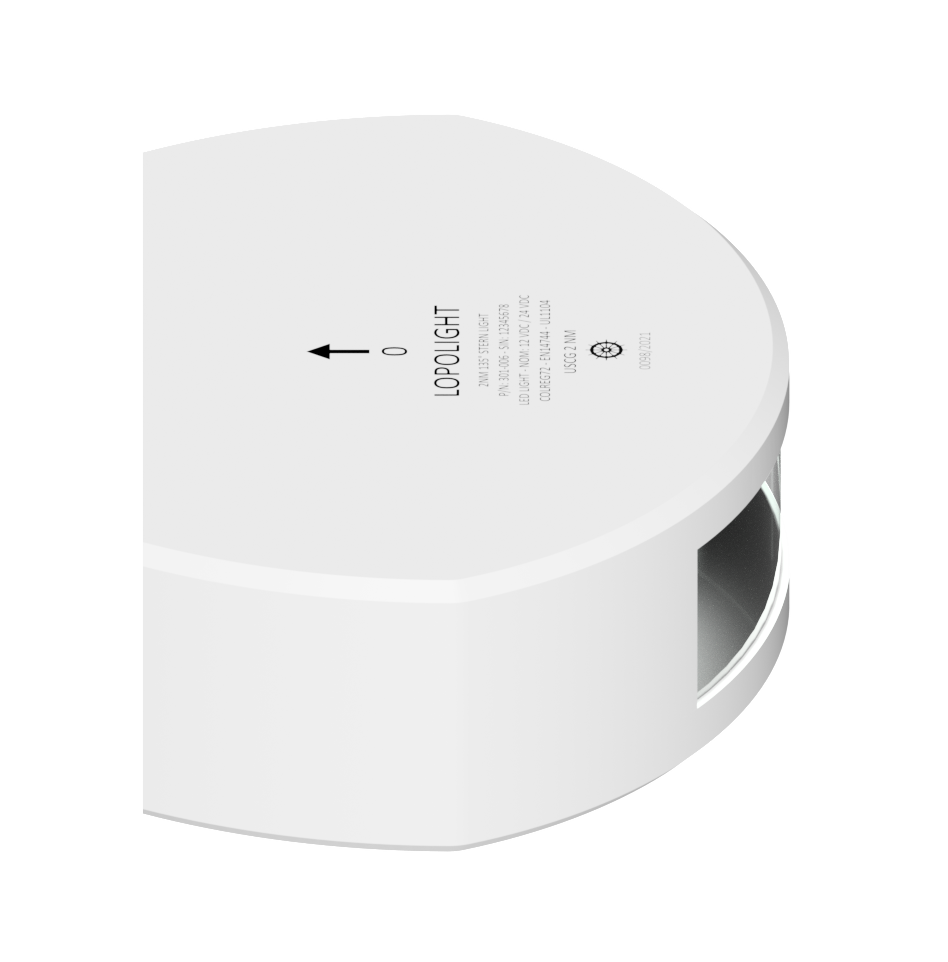

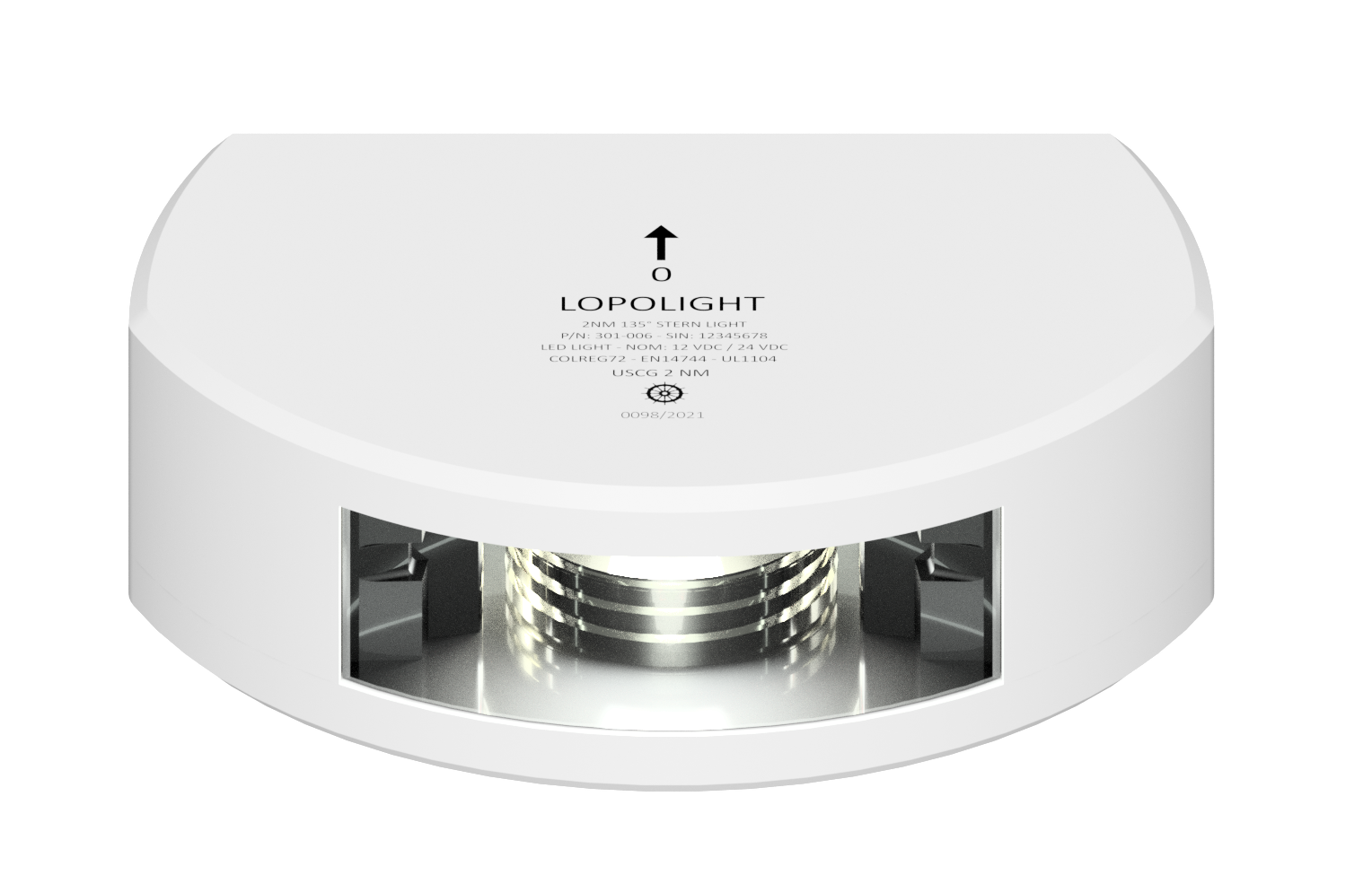

Lopolight NL301-006-WH 2nm 135° White, Stern, White Ceramic Coated

£421.48
Tax included. Shipping calculated at checkout.
NL301-006-WH
Lopolight 2nm 135° White, Stern, White Ceramic Coated (NL301-006-WH): LED navigation light, 2 nm visibility, 10-32 VDC, IP68.

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Lopolight 2nm 135° White, Stern, White Ceramic Coated (part number NL301-006-WH) is an LED navigation light from Lopolight of Denmark.

Key points: 2 nm visibility, 135° light arc, white light. It operates from 10-32 VDC. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, vertical mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: Under 12M, 12-20M, 20-50M.

Supplied with: 1 Navigation light, precabled with 2.5 meter shielded marine grade cable, 2 Mounting screws (M6 * 8 mm), Installation guide.

PRODUCT DETAILS

  • 2 nm visibility (>5.4cd)

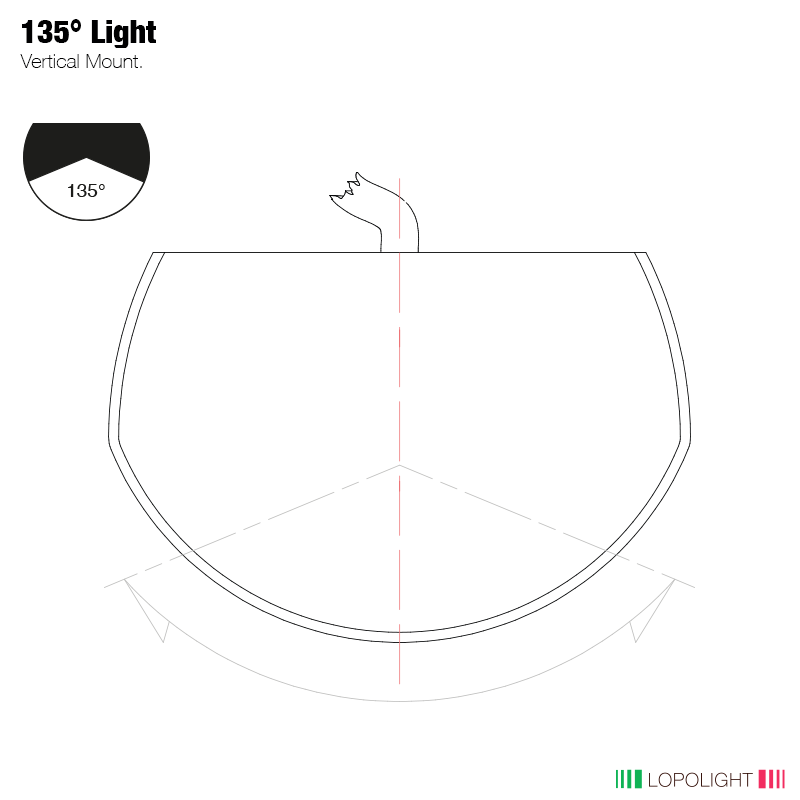

  • 135° light arc
  • 10-32 VDC operating voltage
  • IP68 protection
  • Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
  • Vertical mounting
  • Connection: 2.5m cable
  • 1 Navigation light, precabled with 2.5 meter shielded marine grade cable, 2 Mounting screws (M6 * 8 mm), Installation guide

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Performance

Visibility2nm
Intensity>5.4cd
Light arc135°
Light colourWhite

Electrical

Operating voltage10-32VDC
Current consumption @ 12 VDC110 mA
Current consumption @ 24 VDC50 mA

Mechanical

MountingVertical
Dimensions86,2 x 28 x 57,75 mm
Connection2.5m cable
Weight0.5 kg

Environmental

IP ratingIP68
Operating temperature-25°C to 55°C

Approvals

Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR

General

Vessel size (Lopolight range)Under 12M,12-20M,20-50M
Lopolight part number301-006-WH
IMP part numberNL301-006-WH
UPC879343041434
EAN5704438041301

No videos available for this product.

What is the visibility range of the Lopolight NL301-006-WH?
Lopolight specifies 2 nautical mile(s) visibility with intensity >5.4cd for this part.
What supply voltage does the Lopolight NL301-006-WH need?
Lopolight lists an operating voltage of 10-32 VDC.
Which approvals does the Lopolight NL301-006-WH carry?
Lopolight lists approvals to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR. Declarations of conformity and certificates are published on lopolight.com under Support.
