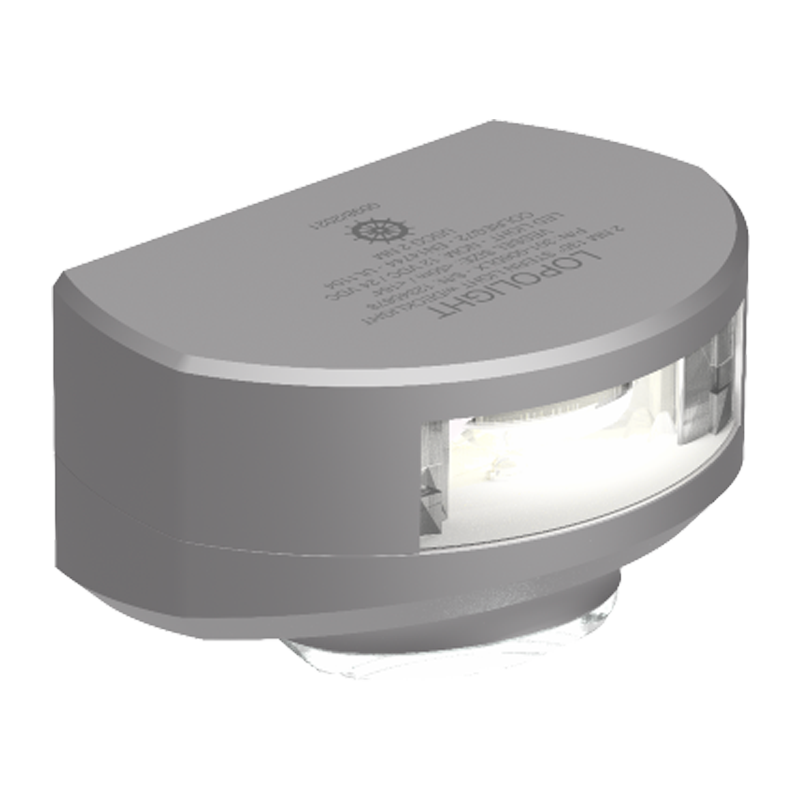

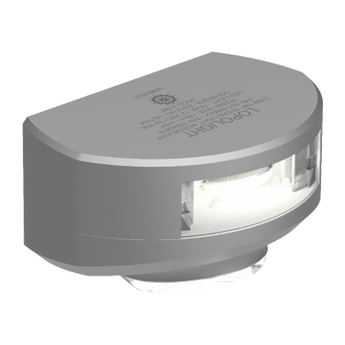

Lopolight NL301-006DLX 2nm 135° Stern Light with 6W Deck Light with 2 X 2.5m Cable Lopolight NL301-006DLX 2nm 135° Stern Light with 6W Deck Light with 2 X 2.5m Cable
Lopolight NL301-006DLX 2nm 135° Stern Light with 6W Deck Light with 2 X 2.5m Cable (lopolight.com image) Lopolight NL301-006DLX 2nm 135° Stern Light with 6W Deck Light with 2 X 2.5m Cable (lopolight.com image)
Lopolight NL301-006DLX 2nm 135° Stern Light with 6W Deck Light with 2 X 2.5m Cable
Lopolight NL301-006DLX 2nm 135° Stern Light with 6W Deck Light with 2 X 2.5m Cable (lopolight.com image)

Lopolight

Lopolight NL301-006DLX 2nm 135° Stern Light with 6W Deck Light with 2 X 2.5m Cable

£802.26
Tax included. Shipping calculated at checkout.
NL301-006DLX
Lopolight 2nm 135° Stern Light with 6W Deck Light with 2 X 2.5m Cable (NL301-006DLX): LED deck / spreader light, 2 nm visibility, 10-32 VDC, IP68.

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Lopolight 2nm 135° Stern Light with 6W Deck Light with 2 X 2.5m Cable (part number NL301-006DLX) is an LED deck / spreader light from Lopolight of Denmark.

Key points: 2 nm visibility, 135° light arc. It operates from 10-32 VDC and draws 1.3 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, vertical mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: Under 12M, 12-20M, 20-50M.

Supplied with: 1 Navigation light, Installation guide.

PRODUCT DETAILS

  • 2 nm visibility (>5.4cd)

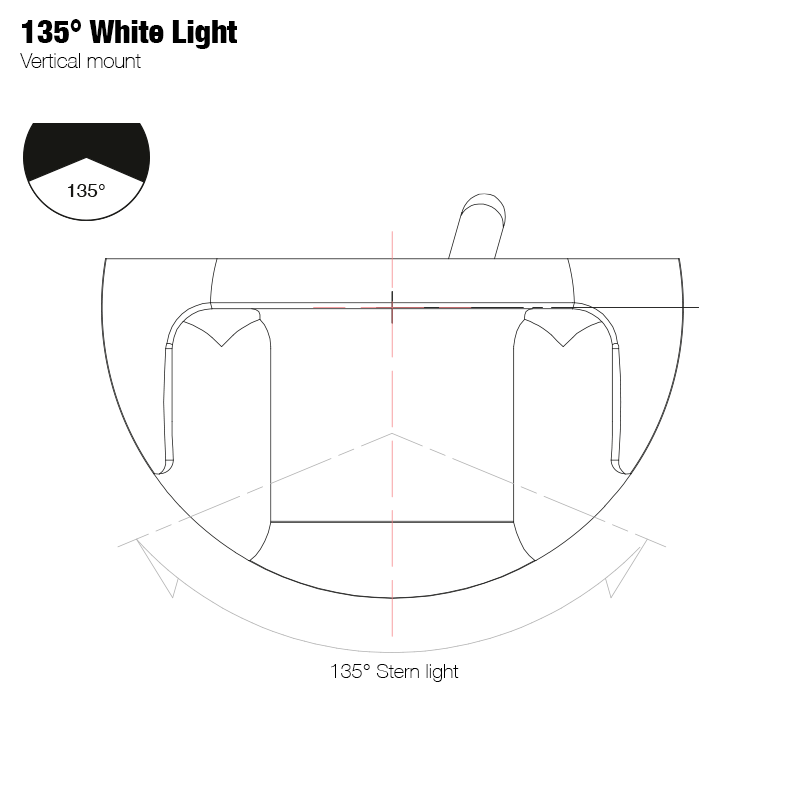

  • 135° light arc
  • 10-32 VDC operating voltage
  • IP68 protection
  • Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
  • Vertical mounting
  • Connection: 2.5m cable
  • 1 Navigation light, Installation guide

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Performance

Visibility2nm
Intensity>5.4cd
Light arc135°

Electrical

Operating voltage10-32VDC
Power draw (W)1.3
Current consumption @ 12 VDC110 mA
Current consumption @ 24 VDC50 mA
Minimum feed wire gauge0.5mm2 AWG22

Mechanical

MountingVertical
Dimensions86 x 50 x 59 mm
Connection2.5m cable
MaterialsSilver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Weight0.66 kg

Environmental

IP ratingIP68
Operating temperature-25°C to 55°C

Approvals

Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR

General

Vessel size (Lopolight range)Under 12M,12-20M,20-50M
Lopolight part number301-006DLX
IMP part numberNL301-006DLX
UPC879343011581
EAN5704438011588

No videos available for this product.

What is the visibility range of the Lopolight NL301-006DLX?
Lopolight specifies 2 nautical mile(s) visibility with intensity >5.4cd for this part.
What supply voltage does the Lopolight NL301-006DLX need?
Lopolight lists an operating voltage of 10-32 VDC with a power draw of 1.3 W.
Which approvals does the Lopolight NL301-006DLX carry?
Lopolight lists approvals to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR. Declarations of conformity and certificates are published on lopolight.com under Support.
